G-406-P11 SERVICE MANUAL PAGE 12
PPUH „GECO” Sp. z o.o. Edition I RELEASE DATE 2006-10-06
The subsequent pressing of the
pushbutton will cause the return to the mode from which
the programming mode was called for, as well as the deactivation
of the programming control diode.
8. METHOD OF CONNECTING THE EQUIPMENT TO THE
CONTROLLER.
Central heating
system
circulating pump
P1 - Burner feeder 4A
P2 - Heater 4A
P3 - C.H. pump 4A
O - Container feeder 4A
W - Fan 1,5A
P4 - Temp. delimiter (STB)
FUSE WTA5x203 15A
R
PPUH GECO Sp. z o.o.
30-134 Kraków ul. Zarzecze 112A
tel. +48 (12) 6369811 fax 6362002
www.geco.pl e-mail:geco@geco.pl
Model:
Sn
G-406-M12345T-P11
:0268 Date of Prod.: 09-02
Burner
feeder
Temperature
delimiter
Temp. sensors
Container
feeder
1-1 Outlet water temp. sensor
3-3 Flame sensor
4 - Additional line
2-2 Feeder temp. sensor
Flame
sensor
Link
Heater
Power supply
220-230
AC
Fan
Outlet water
temperature
sensor

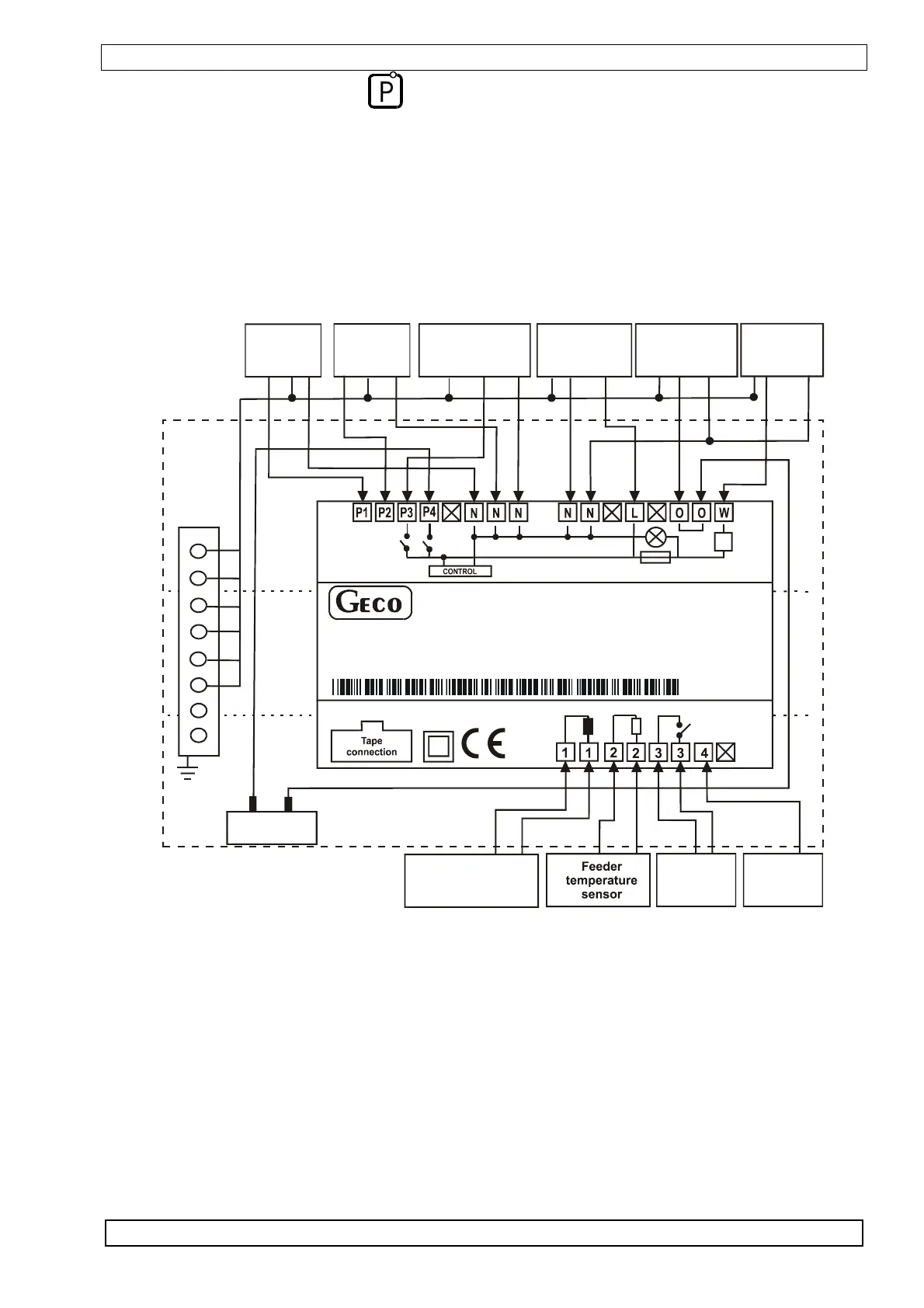

Figure 1. Diagram of equipment connection to the G-406-P11 controller
