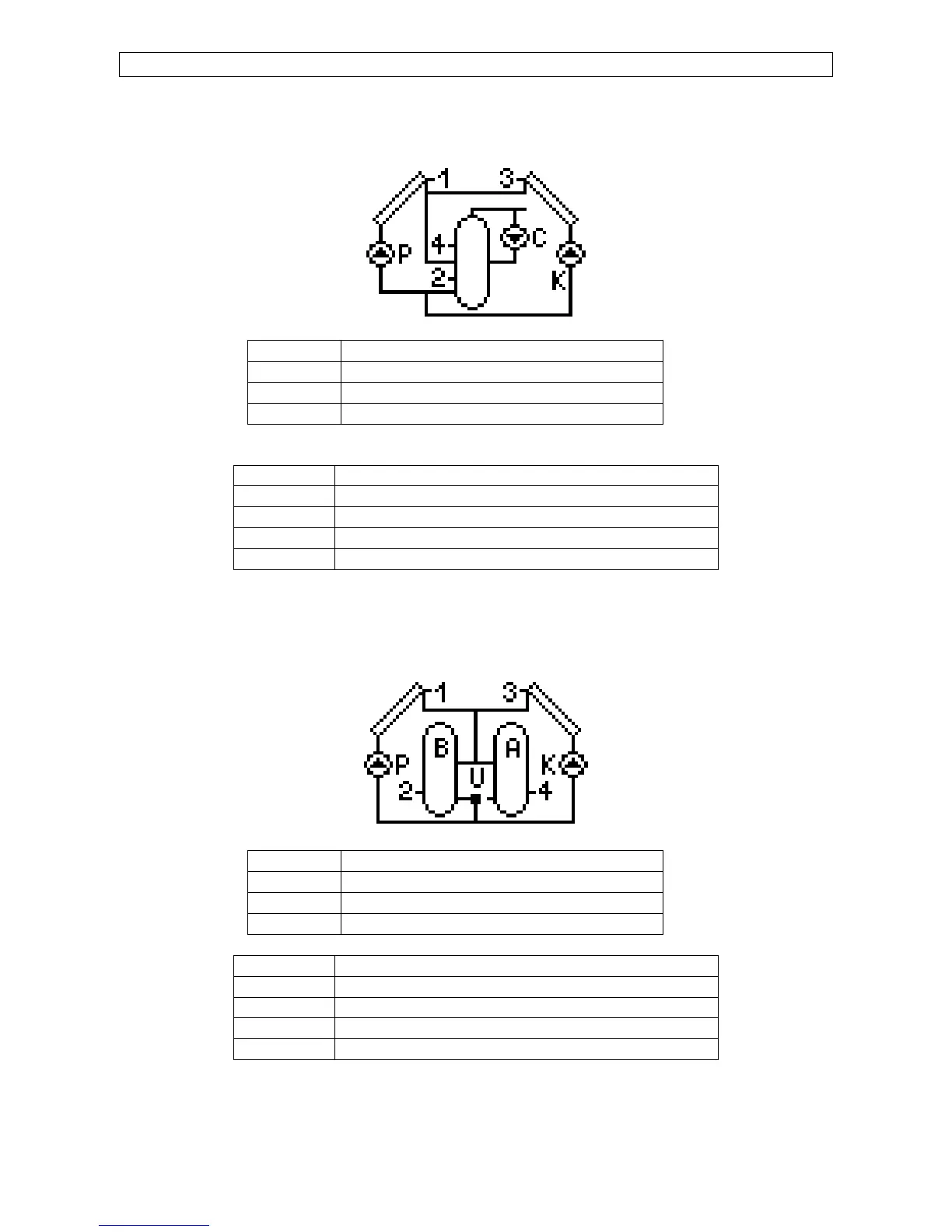

6.15. Scheme 15 – a system allowing control of pumps cooperating with collector batteries
placed in various directions; additionally the system controls a circulation pump.
Output Device connected
O1 Collector pump P
O2 Collector pump K
O3 Circulation pump C
Sensor Description
T1 Collector sensor (Required)
T2 Tank sensor (Required)
T3 Collector sensor (Required)
T4 Tank sensor (Required)
6.16. Scheme 16 – a system allowing control of pumps cooperating with collector batteries
placed in various directions. The system allows domestic hot water heating in two heaters.
Output Device connected
O1 Collector pump P
O2 Valve U
O3 Collector pump K
Sensor Description
T1 Collector sensor (Required)
T2 Tank sensor (Required)
T3 Collector sensor (Required)
T4 Tank sensor (Required)
