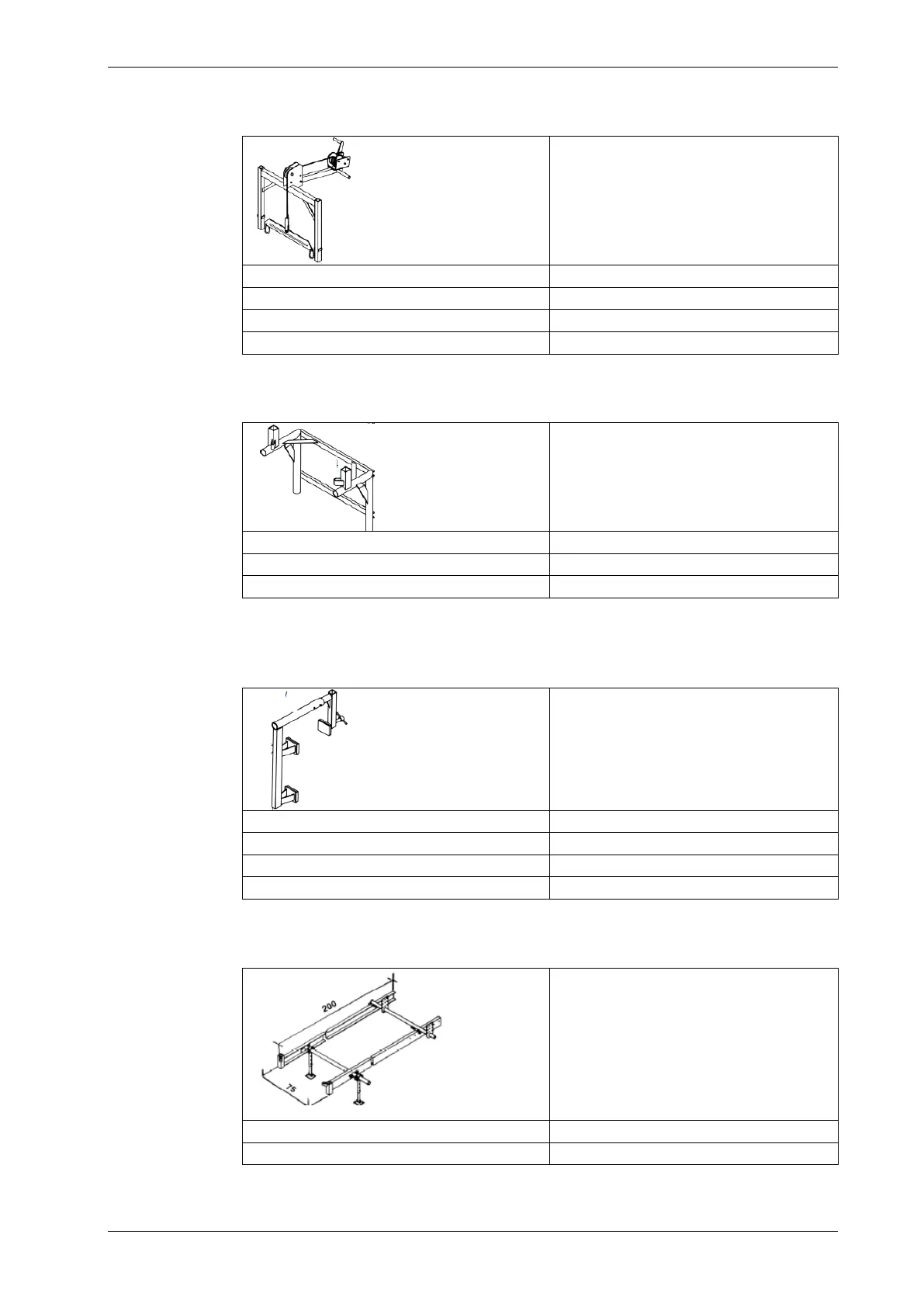

4.5 Hand winch Item No. 01908
Rope
6 mm, SE-Zn k – 1770 [sZ]
Rope length
41 m
Payload
500 kg
Weight
33 kg
4.6 Chute frame Item No. 01904
Dimensions
750 x 370 x 660 mm
Payload
820 kg
Weight
14.7 kg
4.7 Parapet clamp kit Item No. 01902
Only to be used in connection with the chute frame
Quantity (per kit)
2 pcs
Dimensions
95 x 555 x 790 mm
Load capacity (each parapet clamp)
410 kg
Weight (kit)
21 kg
4.8 Sloping-roof frame Item No. 01906
Payload
570 kg
Weight
35 kg
