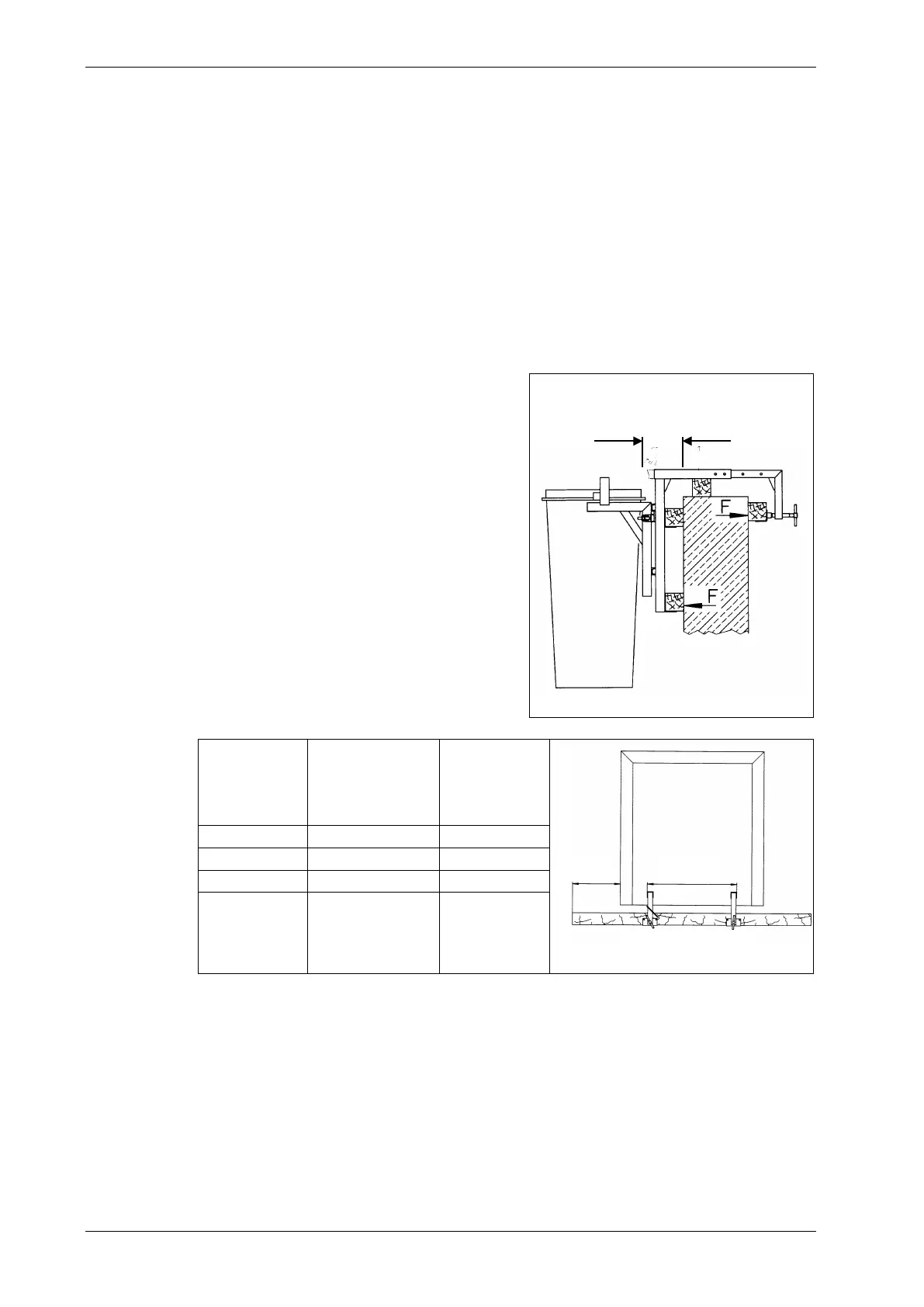

5.4 Installation on a window reveal or parapet wall
Maximum installation height:
Concrete = 40 m
Masonry (min. 36 cm) = 20 m
In the case of masonry, the forces must be dissipated into the masonry
over a large area by sufficiently sized load-distributing substrate
material, e.g. square timber or sectional steel. In areas with a reduced
wall thickness (e.g. radiator recesses), the load-distributing substrate
materials must accordingly be larger in size.
Attaching parapet clamps
 Bolt parapet clamp to chute
frame.
 Ensure that the transverse
spar of the chute frame rests
on the parapet clamp. Fasten
square timbers to the parapet
frame in according to the
structural conditions.
 Suspend the complete unit
over the parapet and fasten to
the tie bar.
 Further assembly of the
rubbish chute as described
above.
Chute
length
Force “F”
Tubes
suspended
vertical
Tubes
deflected
10 m
206 kg
527 kg
20 m
386 kg
665 kg
30 m
565 kg
803 kg
40 m
745 kg
941 kg
max. 25 cm
30 cm
75 cm
Squared wood
