GEDA
®
Rubbish Chute
Assembly and Operating Manual Page 21 of 24 BL041GB Edition 05.2012
5.3 Installation on the scaffolding
WARNING
The suitability of the scaffolding for installation of a rubbish chute
(strength and stability) must always be ensured. The following loading
assumptions must be used as the basis for the calculation:
Vertical load:
Formula: 320 kg + 10 kg per metre installation height (320 kg
corresponds to the weight of two congested waste chutes; 1.0 to/m³).
This gives the following:
5 metre installation height = 370 kg
10 metre installation height = 420 kg
20 metre installation height = 520 kg
30 metre installation height = 620 kg
40 metre installation height = 720 kg
Horizontal load through wind loading
Intermediate ties every 10 metres to be provided (anchorage = 2.5 kN),
refer to "Important instructions for assembly".

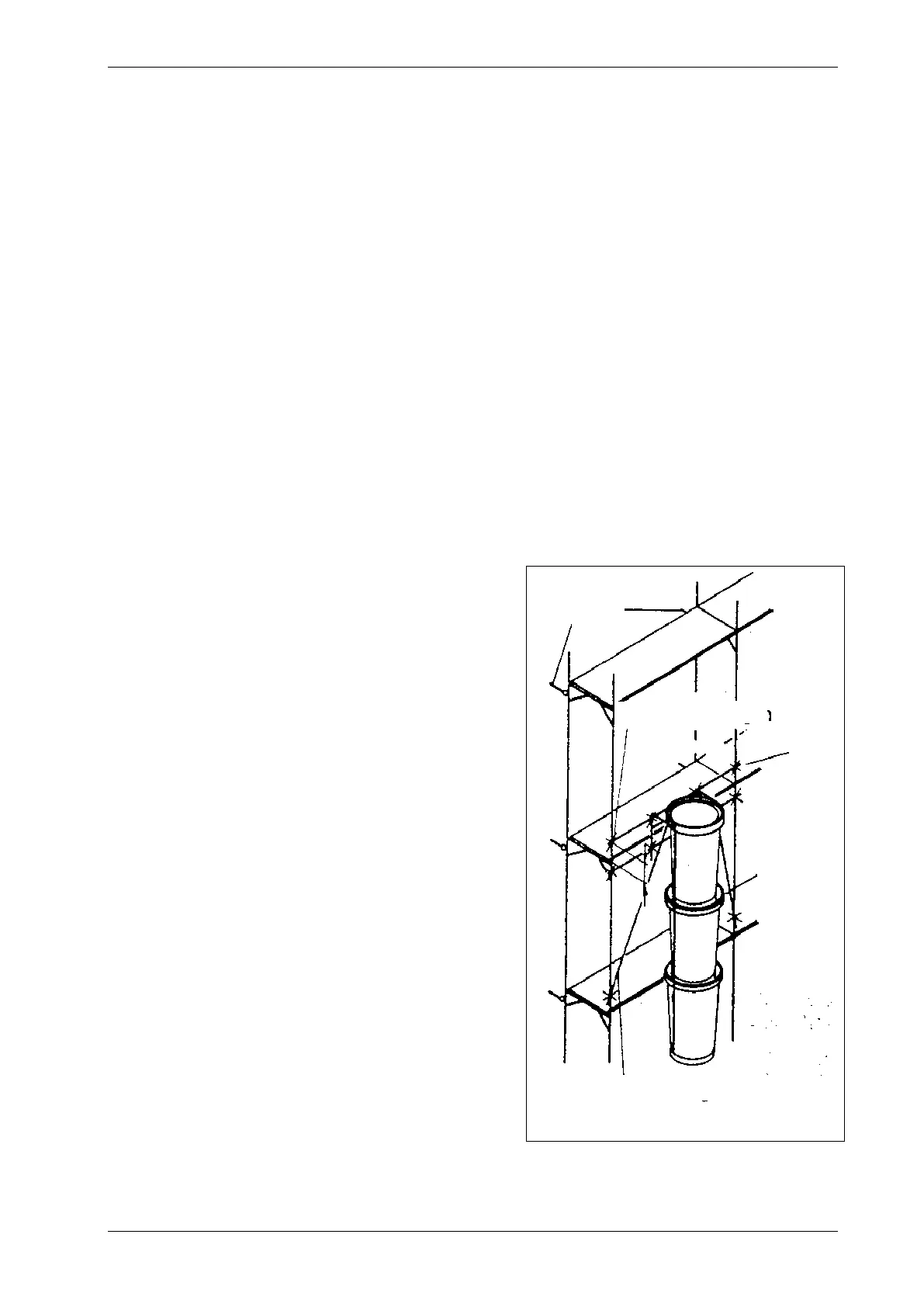

Fasten the two scaffolding
areas to the building
(2.5 kN).
Attach two scaffolding tubes
to the outside of the
scaffolding (48.3 x 4.0 mm
provided by customer)
approx. 400 mm apart from
each other using rigid
scaffolding couplers.
Fasten the chute frame to
the two horizontal tubes
using four rigid scaffolding
couplers.
Brace the chute frame
upwards using another two
scaffolding tubes
(48.3 x 4.0 mm provided by
customer) and four swivel
couplings.
CAUTION:
Strengthen by installing
scaffolding couplings on the
scaffolding only in the area of the
Further assembly of the rubbish chute as described above.
