Assembly and Operating Manual Page 23 of 24 BL041GB Edition 05.2012

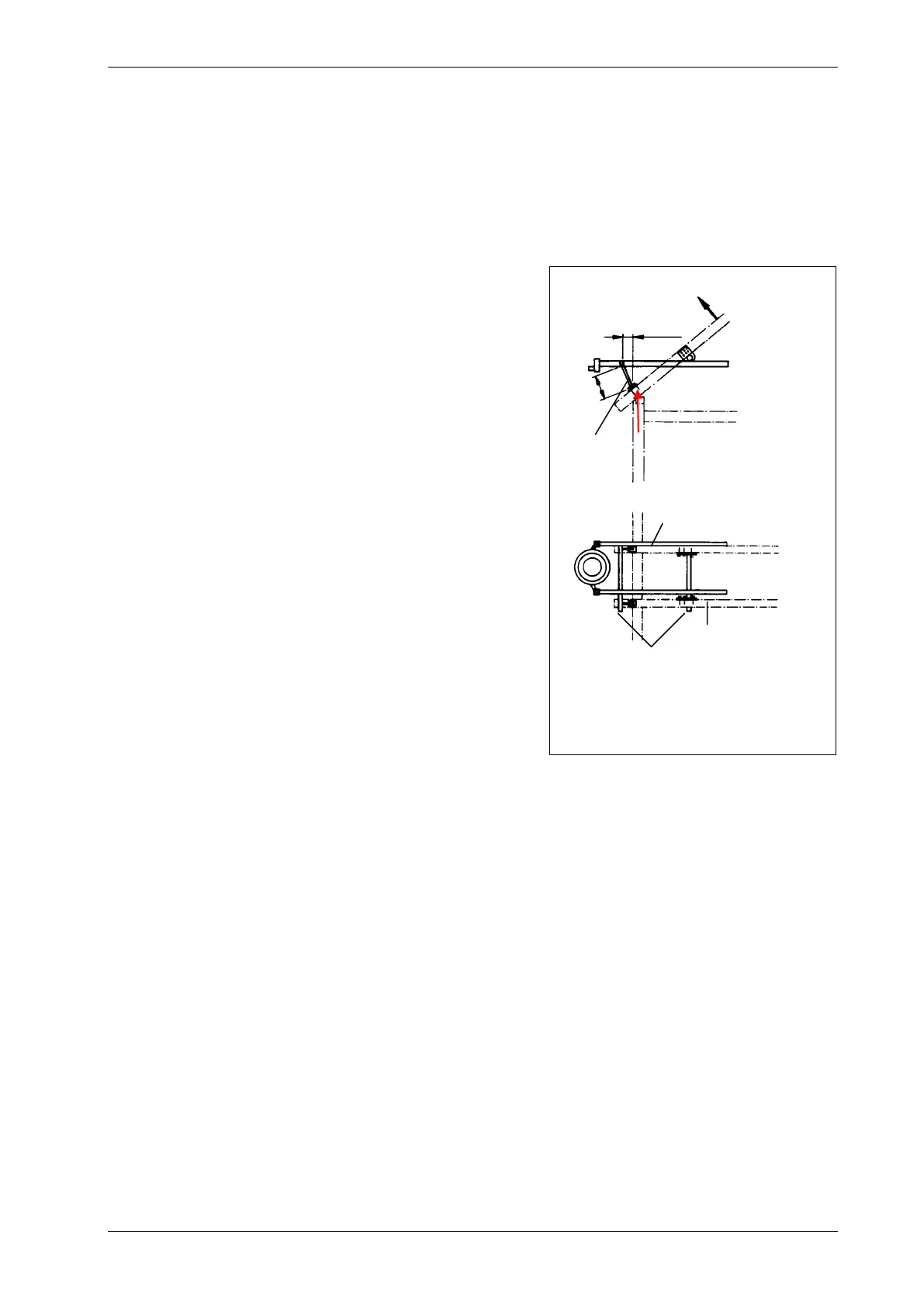

5.5 Installation on a sloping roof
WARNING
Only fasten to load-bearing parts of sloping roofs, e.g. rafters.
Never attach to roof battens.
Maximum assembly height 20 m.
Bolt support rails to the front
cross-connectors in accordance
with the distance between
rafters.
Push the sloping-roof frame
from outside over one or two
rafters.
Secure using the adjustable
cross-connector.
Support the support rail on the
rafters using the adjustable
supports. Supports must as far
as possible stand vertically.
Moving the rear cross-connection
and/or adjusting the supports
aligns the sloping-roof frame
horizontally.
Fasten sloping-roof frame to the
support plates.
Further assembly of the rubbish
chute as described above.
CAUTION:
Depending on the assembly height, as necessary, secure the rafters
against lifting. As necessary, the discharge point must be secured
against falling.
