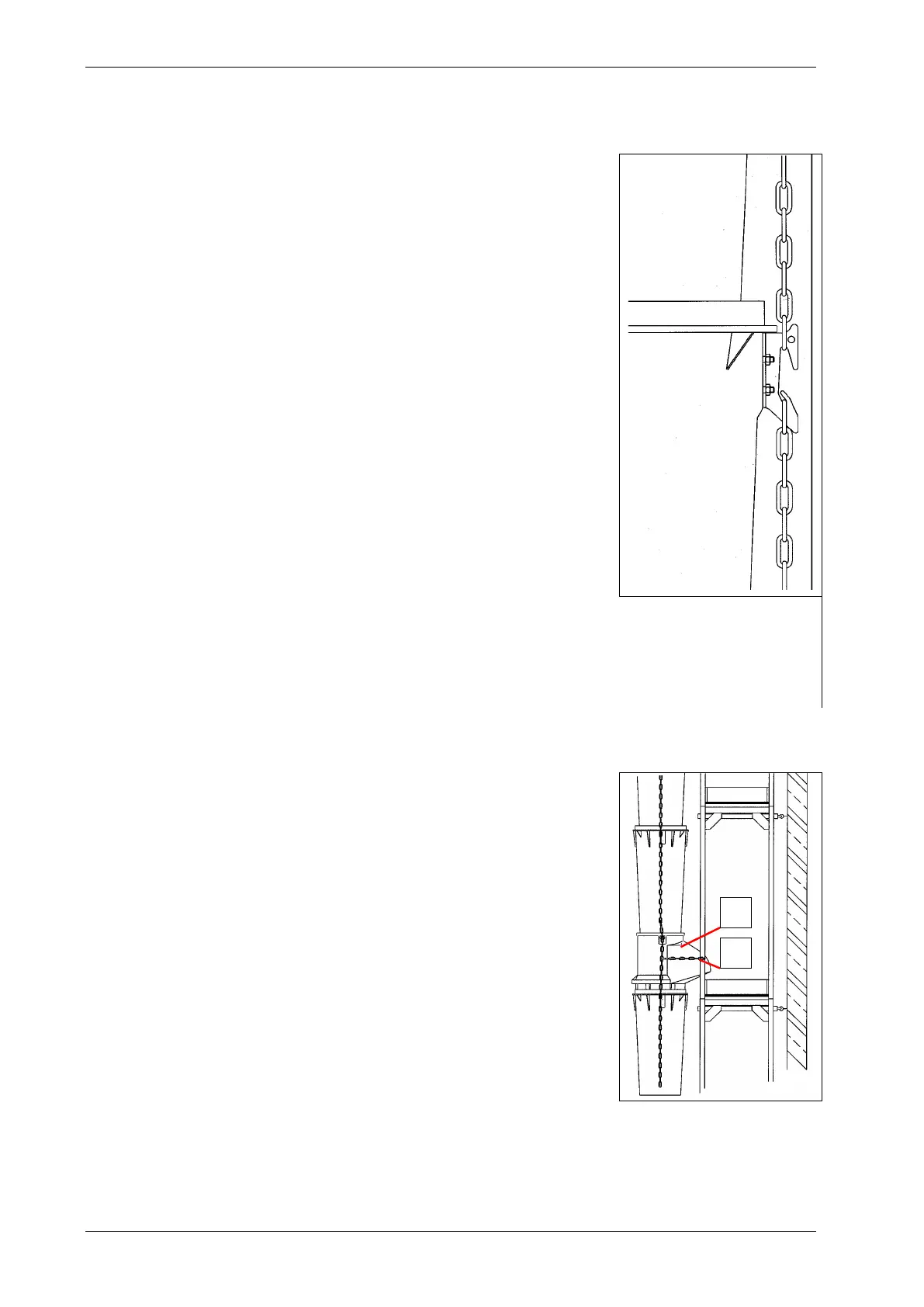

Proceed as follows for installation of the rubbish chute:
Fasten chute frame according to the
specific installation situation (see there).
Insert the hand winch into the installed
chute frame or sloping-roof frame or flat
roof frame. Unwind the rope to
approx. 1 metre above the ground
(refer to relevant section).
Hang carabiners in the holes in the
rubbish chute.
Use the hand winch to pull the rubbish
chute up far enough so that the next
element of the rubbish chute can be
suspended. Repeat procedure until the
assembly height is attained.
Suspend the top chute tube in the two
eyelets of the chute frame or sloping-roof
frame or flat roof frame.
Place the filling funnel on the top chute tube. Ensure that the filling
funnel rests against the edge of the chute.
The filling funnel must be secured (firmly attached) to the building
Chute branch
If the chute is also to be filled from an
intermediate level, when pulling up the waste
tubes of the waste chute branch (1) must be
attached at the required height.
An intermediate tie (2) must also be
installed at each waste chute branch (1)
(also refer to section 5.3).
