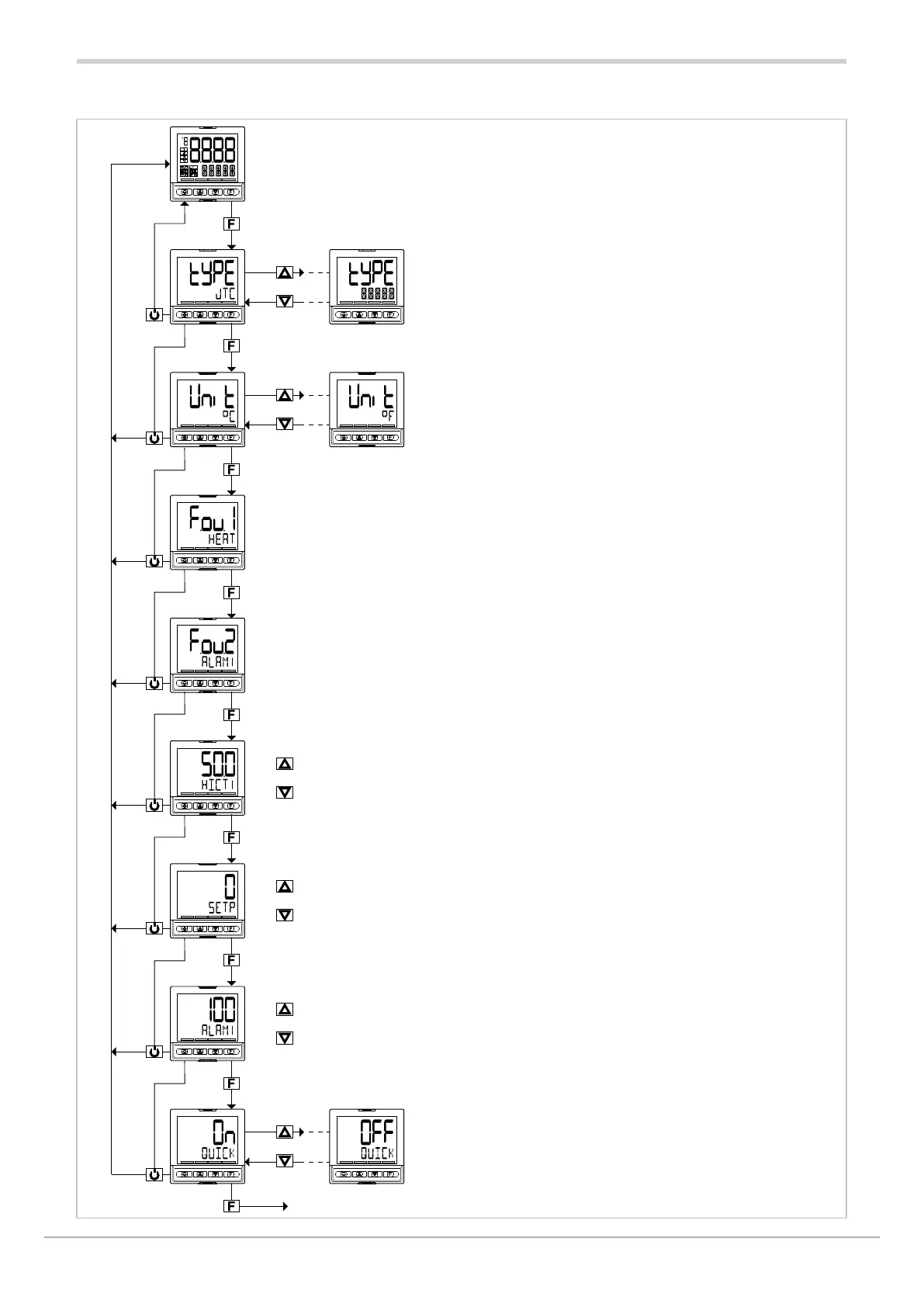

5.2.2. Quick configuration procedure for model 850–D-R00-00000-1
Setting Alarm 1
Default: direct maximum absolute
Selecting sensor type
Home
Selecting unit of measurement
The unit of measurement can be °C or °F only if a TC
or Rtd sensor is selected
Select output 1 function
The functions proposed are based on type of logic output.
Select output 2 function
The functions proposed are based on type of logic output.
Full-scale of the CT1 current transformer
Setting Setpoint
Enable/disable quick configuration
> 2 s
> 2 s
> 2 s
> 2 s
> 2 s
> 2 s
> 2 s
raises the value
lowers the value
raises the value
lowers the value
return to select sensory type
raises the value
lowers the value
