80209C_MHW_850-1650-1850_01-2020_ENG_pag. 236
1 2
3
9
4
5
6
16
17
18
7
8
11
12
13
10

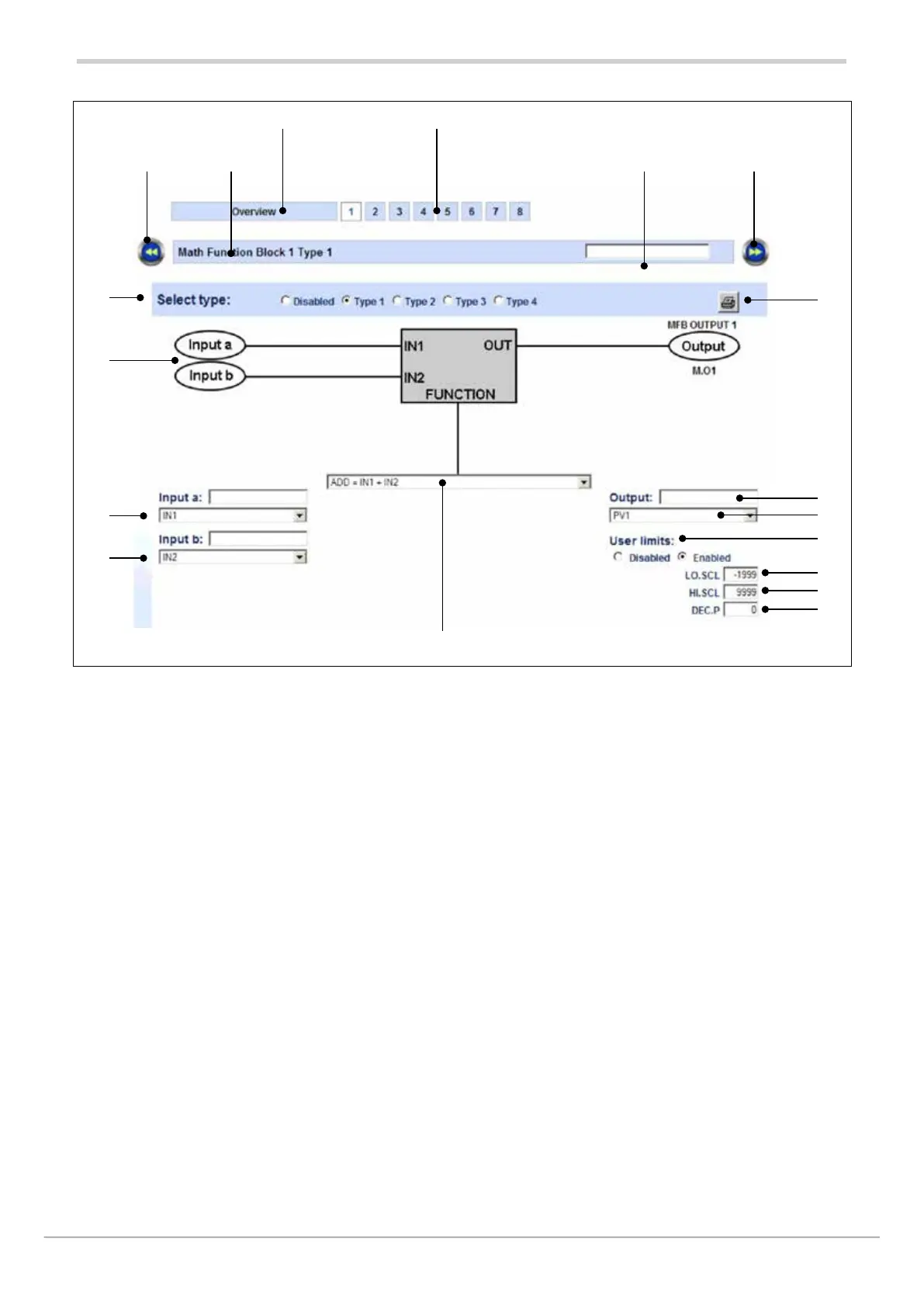

1. Button to return to previous Math Function Block.
2. Number of Math Function Block.
3. Name of Math Function Block. You can enter an optional
descriptive name of the Math Function Block.
4. Button to go to next Math Function Block.
5. Button to print Math Function Block in use.
6. Name of output. You can enter an optional descriptive
name of the output.
7. Output type or variable activated.
8. Setting limits control mode (Disabled => Limits calcula-
ted automatically, Enabled => Limits set by user)
9. Type of oforation executed by Math Function Block in
use.
10. Input type or variable evaluated for input b. Input b box is
used for entering an optional descriptive name of input b.
11. Input type or variable evaluated for input a. Input a box is
used for entering an optional descriptive name of input a.
12. Graphic representation of type of inputs (analog or digital)
used by Math Function Block in use.
13. Selection of type of Math Function Block
14. Button for showing an overview of the Math Function
Block enabled.
15. Button for showing the Math Function Block shown in
the box.
By enabling manual mode for setting maximums and
minimums, you see the following:
16. Minimum value that Math Function Block output can
assume.
17. Maximum value that Math Function Block output can
assume.
18. Value of decimal figures attributable to output.
