ADV20 QS, V1.02 9
Italiano English

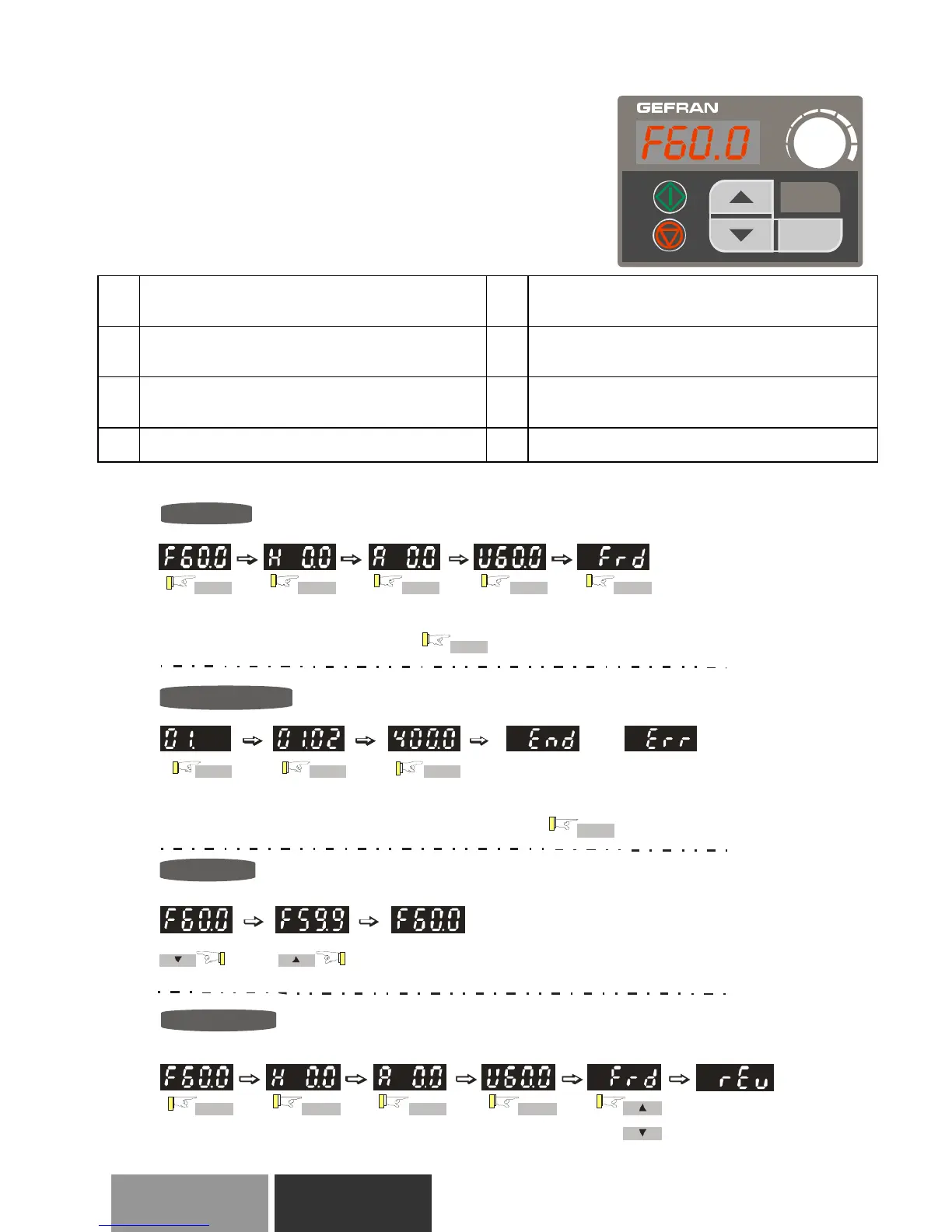

Description of the Digital keypad
FWD
RUN
REV
STOP
STOP
RESET RUN
MODE
E
Status Display
Display the driver’s current status
UP and DOWN Key
Set the parameter number and changes the
numerical data, such as Master Frequency.
LED Display
Indicates frequency, voltage, current, user defined
units and etc.
MODE
Change between different display mode.
Potentiometer
For master Frequency setting.
STOP/RESET
Stops AC drive operation and reset the drive after
fault occurred.
RUN Key
Start AC drive operation.
ENTER
Used to enter/modify programming parameters
Operation steps of the Digital Keypad
To shift data
Setting direction
Setting Mode
Setting parameters
Success to
set parameter.
Input data error
NOTE:
In the parameter setting mode, you can press
to return the selecting mode.
(When operation source is digital keypad)
START
GO START
MODE MODE MODE MODE MODE
NOTE: In the selection mode, press to set the parameters.
or
ENTER ENTER ENTER
START
or
MODE MODE MODE MODE
ENTER
ENTER
To Next Page
