User Guide Electrical Line Shaft for ADV200 Page 16 of 72

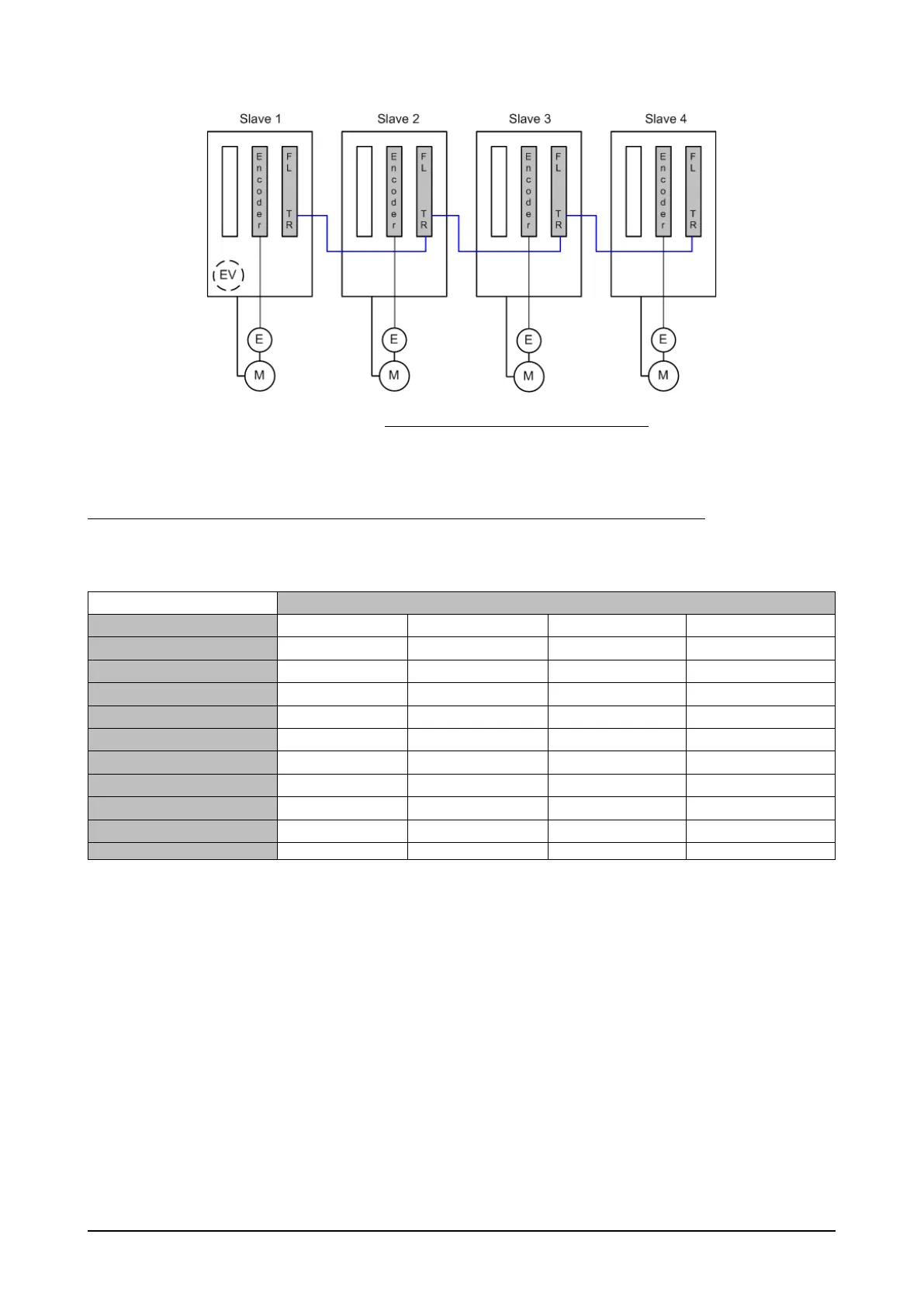

Figure 5. Configuration with Virtual encoder and Fast Link
Example of parameterization of drives for electric line shaft in Equal Ranking configuration with Virtual
master. The Electric Line Shaft application is present on all of the drives.
See also: Figure 25. Virtual Encoder.
Els Master PPR 1024 1024 1024 1024
11108 Els Master pos dest Pad 1 - - -
11110 Els Master rev dest Pad 2 - - -
5702 FL address 1 (Master) 2 (Slave 1) 3 (Slave 2) 4 (Slave 3)
5818 FL bidirectional Disable Disable Disable Disable
5710 FL Sync slave type - Pwm&Ctrl Pwm&Ctrl Pwm&Ctrl
5712 FL N Fwd slave chg - 0 0 0
5730 FL Fwd 1 src Pad 1 Null Null Null
