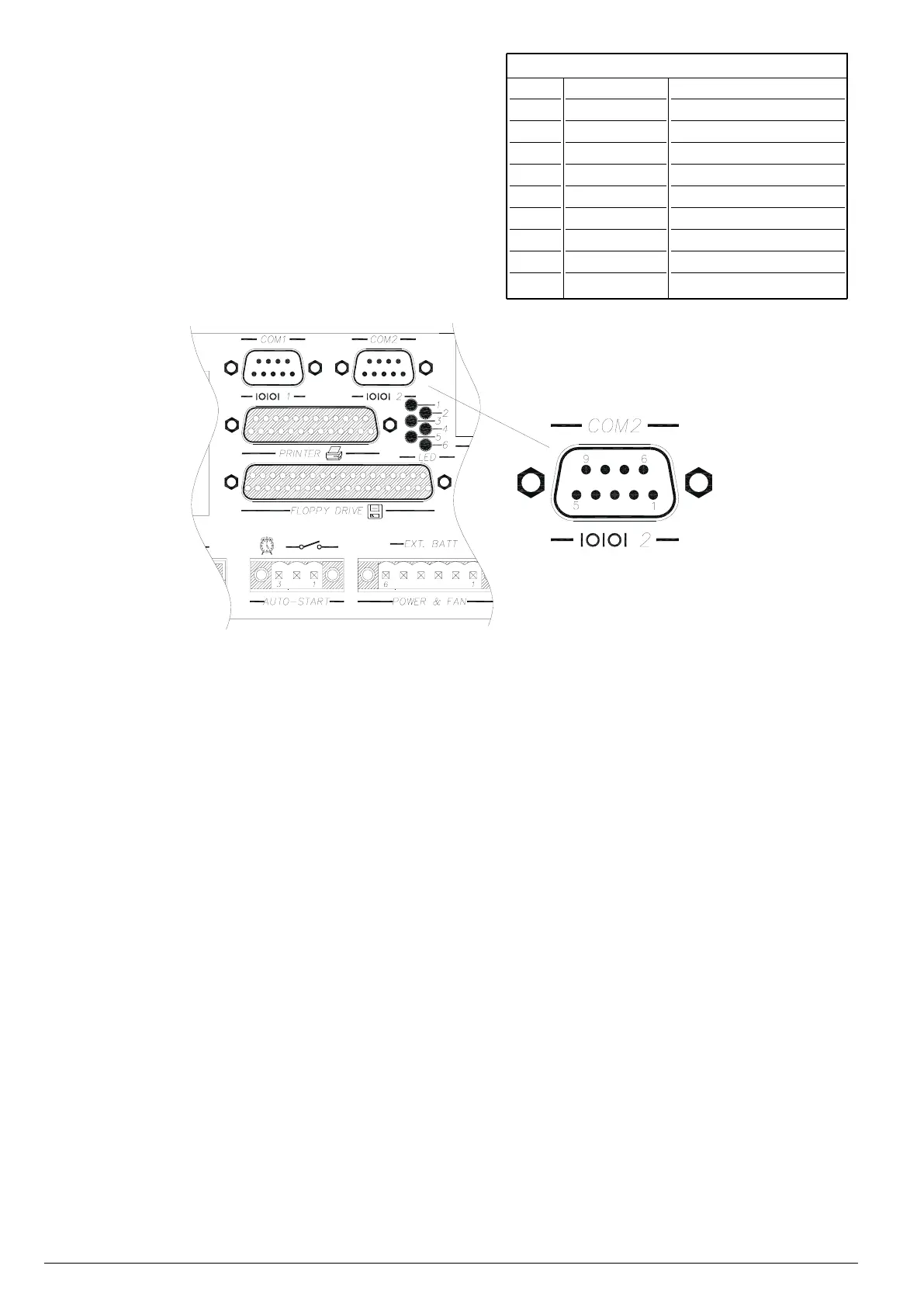

Serial Port COM2 (12)
9 pole male connector standard serial COM2.
The serial is provided in RS232 standard.
Function
Data carrier detect
Receive Data
Trasmit Data
Data terminal ready
Signal Ground
Data set ready
Request To Send
Clear To Send
Ring
Nr Pin
1
2
3
4
5
6
7
8
9
Signal
DCD
RX
TX
DTR
GND
DSR
RTS
CTS
RI
COM 2 RS232
