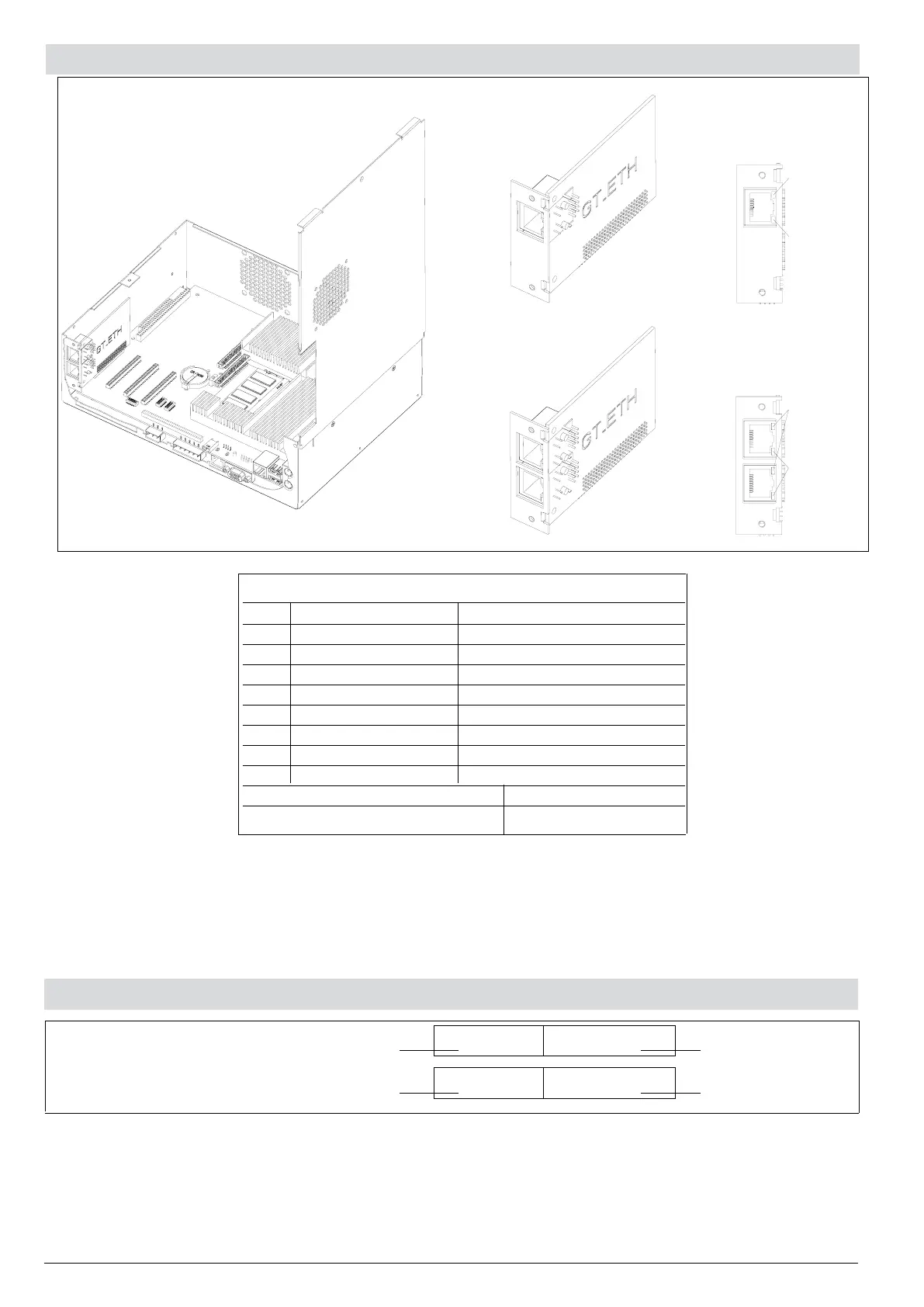

INSTALLATION and CONNECTIONS
*J3 not present in version GT-ETH 1
Connection cable
Use an Ethernet Base-T (CAT. 6) cable for the connection. The wiring scheme must conform to standard TIA/EIA-T568-A
J2
1
8
J2
GT-ETH1
LED Link
(Yellow)
LED Data
(Green)
GEFRAN reserves the right to make any kind of design or functional modification at any moment without prior notice
ORDER CODE
GT-ETH 2 F029910
Code module Code
2 ETHERNET Channels
GT-ETH 1 F029909
Code module Code
1 ETHERNET Channel
Channel ETH 1 (J2)/ ETH 2 (J3*)
Pin Name Description
1 TX_D+ Transmit data +
2 TX_D- Transmit data -
3 RX_D+ Receive data +
4 N.C. Not connected
5 N.C. Not connected
6 RX_D- Receive data -
7 N.C. Not connected
8 N.C. Not connected
LED green left Data
LED yellow right Link
J2
1
J3
8
1
8
J2
J3
GT-ETH2
LED Link
(Yellow)
LED Data
(Green)
