GT-ETH 1 / GT-ETH 2
ETHERNET COMMUNICATION MODULES
Main applications
• ConnectionofGefranindustrial
 PCstoEthernet
Main characteristics
• StandardEthernetchannels
• RJ45connectorwithLEDs
• Communicationspeed:10/100Mbps
• ConformstostandardIEEE802.3
PROFILE

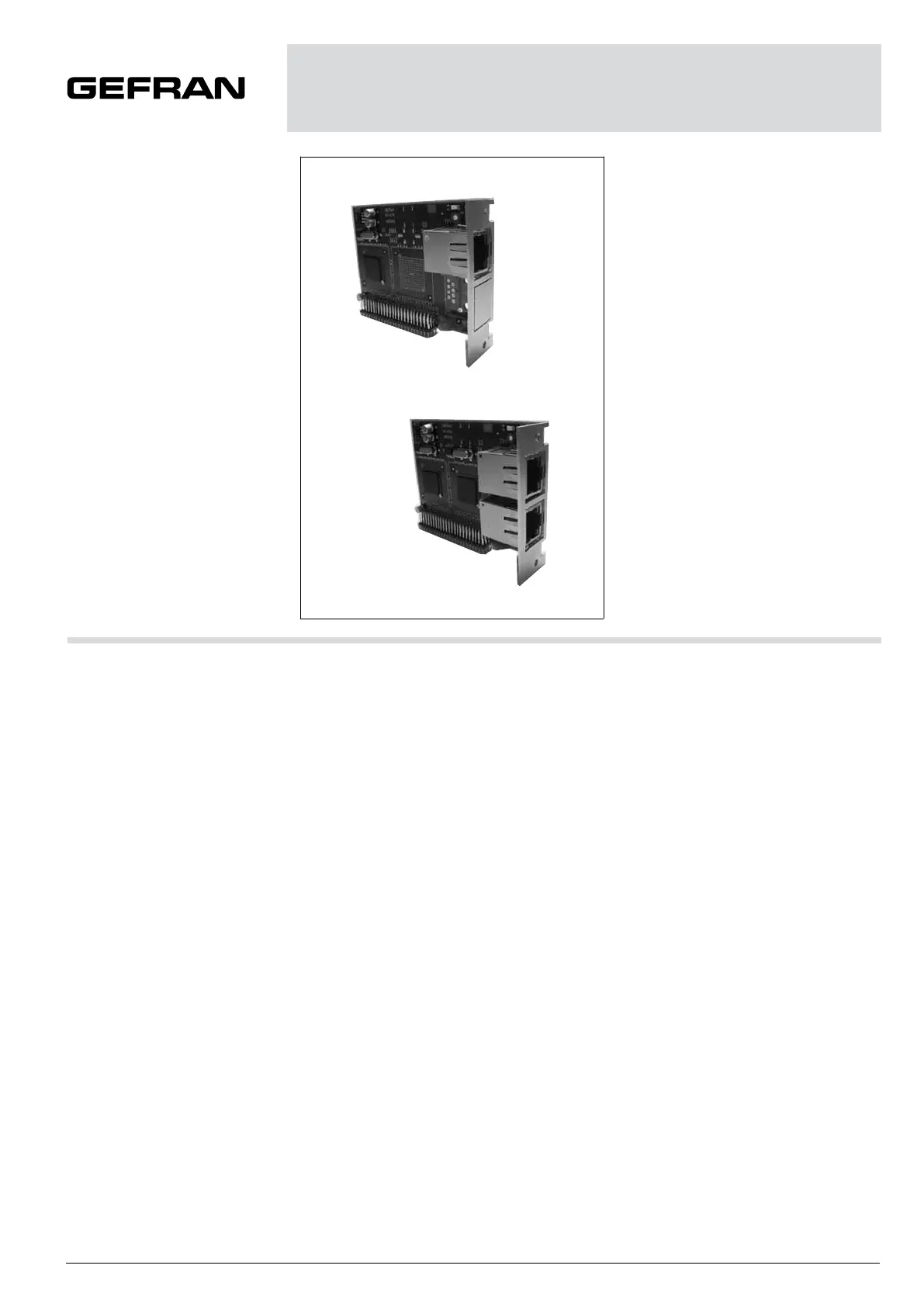

GT-ETH1andGT-ETH2expansion
modulestoEthernetnetworksdedi-
catedtoGefranindustrialPCs.
Theysupply1and2Ethernetchan-
nels,respectively,inconformityto
standardIEEE802.3.
TheEthernetconnectionusesRJ45
connectors.
Theexpansionmoduleinsertsin
GefranDIGISTARII,GT-CandGF_
BOXindustrialPCsincustomexpan-
sionslot1(EXP1).
TECHNICAL DATA
• GT- ETH 1: 1 Ethernet channel, not
optically isolated
• GT- ETH 2: 2 Ethernet channels, not
optically isolated
• Ethernet controller: INTEL 82551
(Communication speed: 10/100 Mbps
auto-configurable)
• 8 pin RJ45 connector with Data and
Link LEDs
Mechanical characteristics
• Dimensions: 60x20x80 mm
• Weight GT-ETH 1: 46g
(including anti-static bag supplied as
standard)
• Weight GT-ETH 2: 53g
(including anti-static bag supplied as
standard)
• Fastening: screw
• Connector for connection to Gefran
industrial PCs
aMbient conditions
• Working temperature: 0…50°C
• Storage temperature: -20…70°C
• Humidity: 90% RH max.,
non-condensing
Installation and Connections
The GT-ETH 1 and GT-ETH 2 expansion
modules insert in Gefran DIGISTAR II,
GT-C and GF_BOX terminals in custom
expansion slot 1 (EXP 1).
