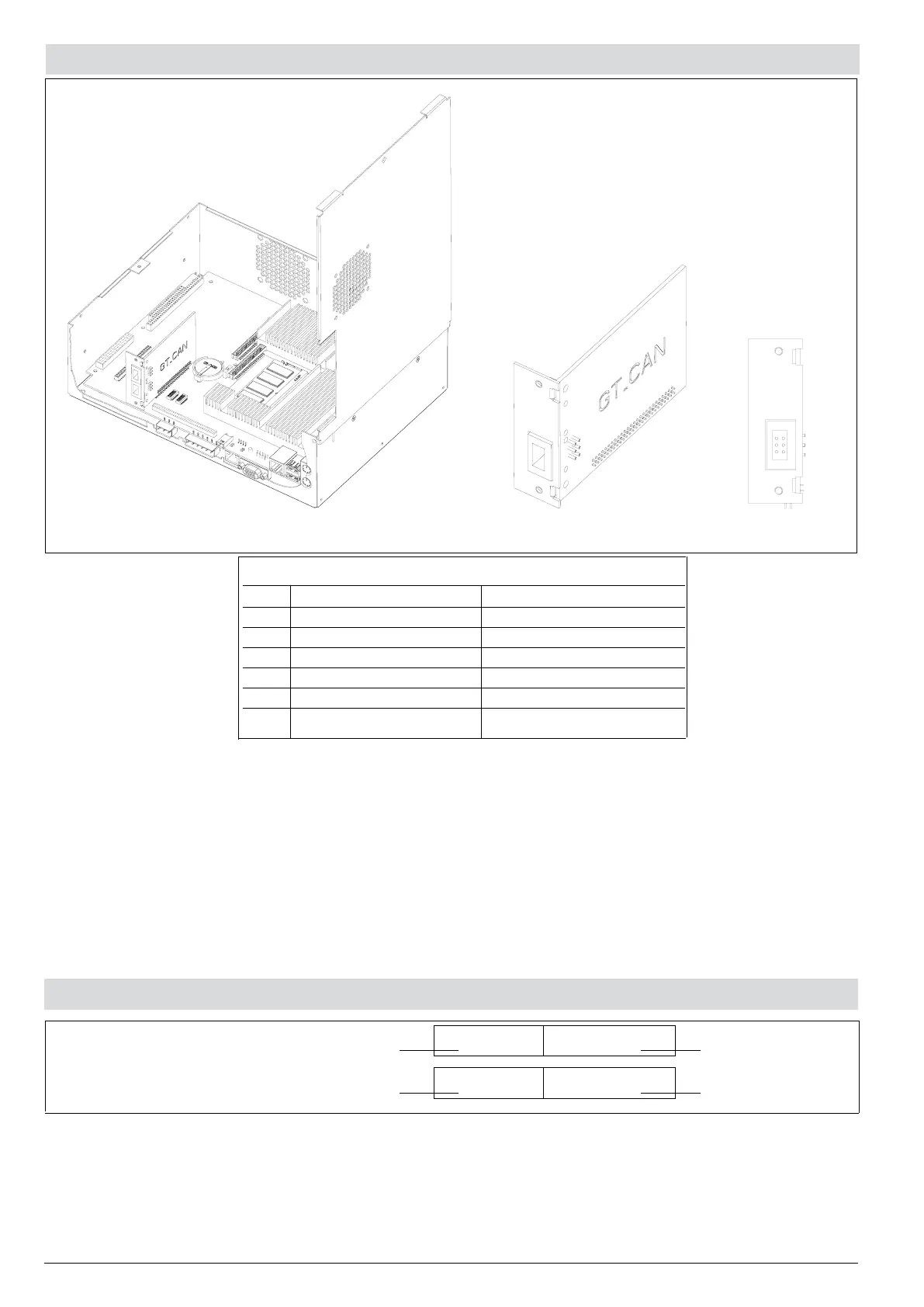

INSTALLATION and CONNECTIONS
5
3
1
6
4
2
J2
J2
GT-CAN 1
Description
PIN CAN1 (J2) Channel CAN2 (J3**) Channel
1 TERMINATION (*) TERMINATION (*)
2 TERMINATION (*) TERMINATION (*)
3 CANH1 CANH2
4 CANL1 CANL2
5 SHIELD SHIELD
6 CANGND1 CANGND2
(*) To insert the termination, short circuit pins 1-2: the termination inserts only in the ends of the CAN line.
(**) J3 not present in version GT-CAN 1
Connection cables
Use an approved CAN cable for the connection
GEFRAN reserves the right to make any kind of design or functional modification at any moment without prior notice
ORDER CODE
GT-CAN 2 F029826
Code module Code
2 CAN channels
GT-CAN 1 F029825
Code module Code
1 CAN channel
