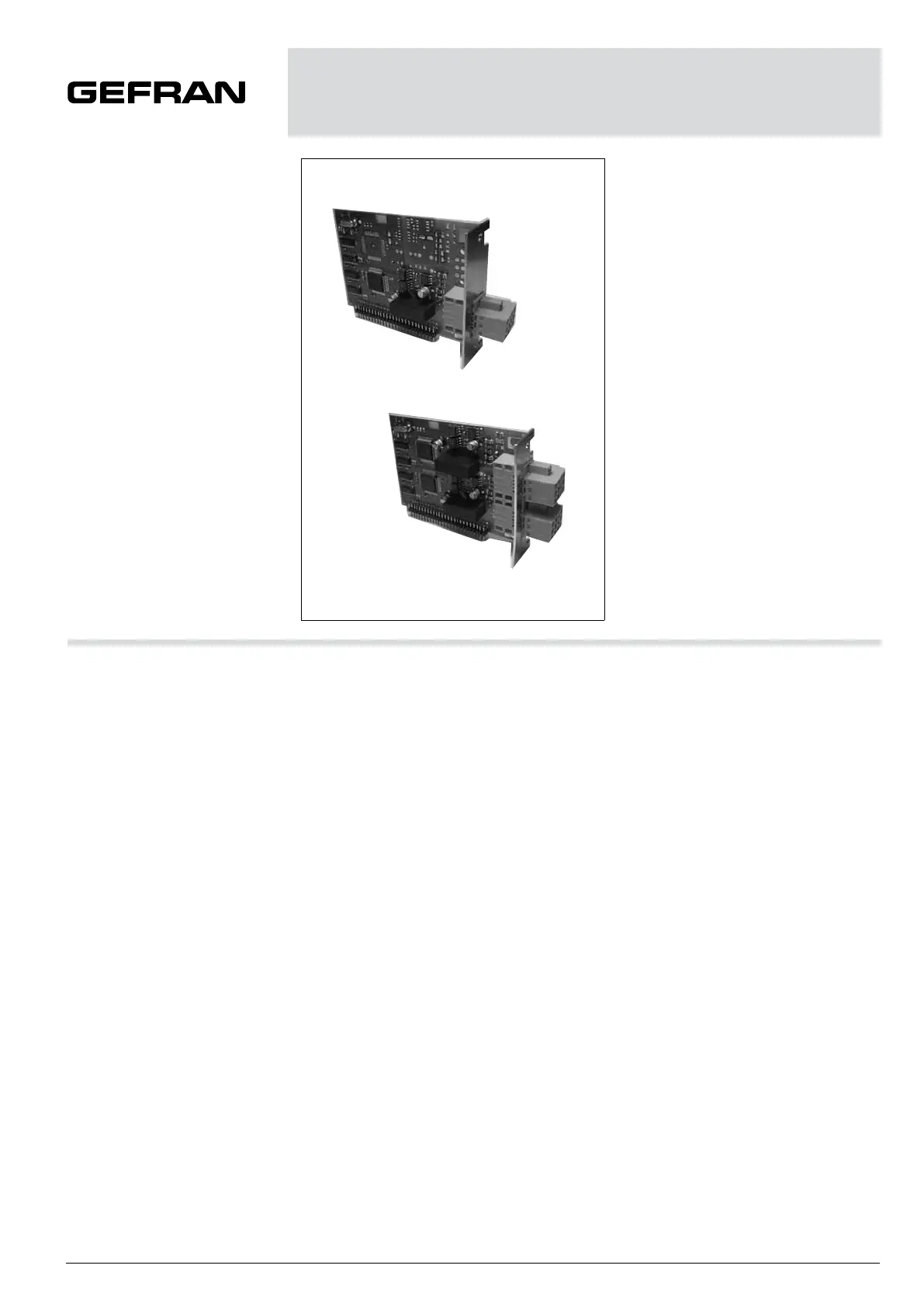

GT-CAN 1 / GT-CAN 2
CAN COMMUNICATION MODULES
Main applications
• ConnectionofGefran
 DIGISTARII,GT-CandGF-BOX
 industrialPCstoaCAN-bus
 network
Main characteristics
• Optically-isolatedCANchannels
• Removable3x2pinfemaleconnector
 withspringclamp(noscrews)
• ConformstostandardCAN2.0(b)
PROFILE
GT-CAN1andGT-CAN2areexpan-
sionmodulestoCANfieldbuses
dedicatedtoGefranDIGISTARII,
GT-CandGF-BOXindustrialPCs.
Theysupply1and2optically-isolated
CANchannels,respectively,and
interfacethefieldbusinconformityto
2.0(b)specifications.
Thefieldbusconnectionusesa
removable3x2pinfemaleconnector
withspringclamp(noscrews).
Theexpansionmoduleinsertsin
GefranDIGISTARII,GT-Cand
GF_BOXterminalsinexpansionslots
3and4foramaximumof4CAN
channels.
TECHNICAL DATA
• GT-CAN 1: 1 Optically-isolated
CAN channel
• GT-CAN 2: 2 Optically-isolated
CAN channels
• Channels protected against overcur-
rents
• Removable 3x2 pin female connector
with spring clamp (no screws)
• CAN controller CAN: INTEL 82527
(communication speed: up to 1 MBaud,
CAN 2.0 (b) specifications)
• High immunity to electromagnetic inter-
ference
Mechanical characteristics
• Dimensions: 60x20x80 mm
• Weight -CAN 1: 45g
(including anti-static bag supplied as
standard)
• Weight GT-CAN 2: 49g
(including anti-static bag supplied as
standard)
• Fastening: screw
• Connector for connection to Gefran
industrial PCs
aMbient conditions
• Working temperature: 0…50°C
• Storage temperature: -20…70°C
• Humidity: 90% RH max.,
non-condensing
Installation and Connections
The GT-CAN 1 and GT-CAN 2 expansion
modules install in Gefran Digistar II, GT-C
and GF-BOX control terminals in custom
expansion slots 3 and 4 for a maximum
of 4 CAN channels.
