3.5.2 Autostart Port
GF_VEDO HL uses the optional Autostart output to activate an external relay by means of a programmable inter-
nal timer. Activation requires that only the relay be powered, and to run the external devices you have to use the
free contact of the relay (activation time approx. 10 seconds).
We recommend the use of 24VDC relays with a maximum of 100mA at the coil.

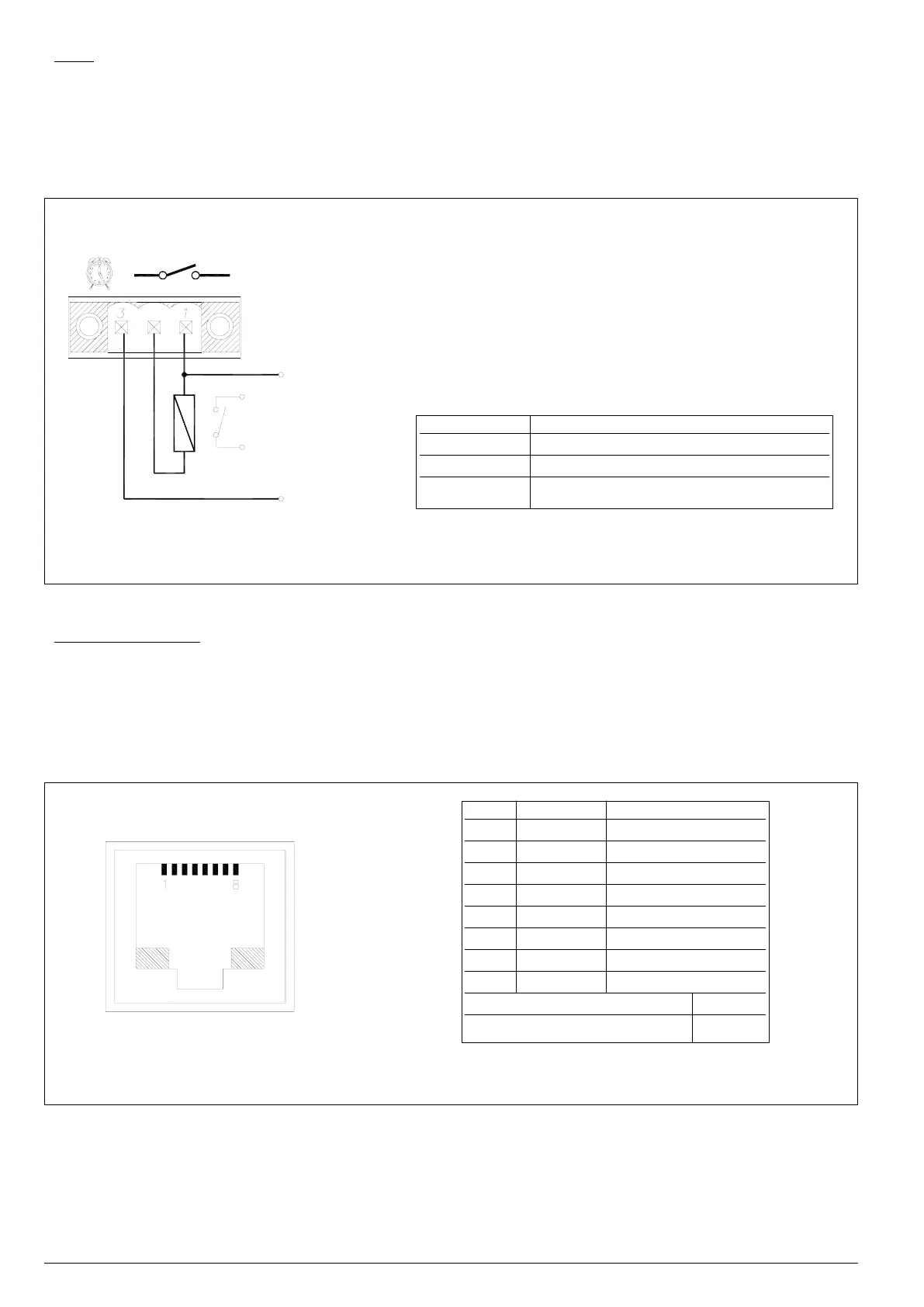

Figure 10 GF_VEDO HL Ethernet port connector
Tabella 7 Signal assignment for GF_VEDO HL
Ethernet port
3.5.3 Ethernet ports
GF_VEDO HL uses Ethernet (ETH1 and ETH2) ports to dialog via IEEE 802.3 Ethernet protocol. Each Ethernet
port can dialog at 10/100 Mbps using an 8-pin RJ45 connector with LED.
We recommend an Ethernet Base-T with braided leads (CAT. 6). The wiring scheme must conform to standard
TIA/EIA-T568-A. Signal assignment is shown in Table 7.
Figure 9 - GF_VEDO HL power supply/auto power-on connector
+24V DC
GND
Pin Description
1 +24V Power supply Auto power-on
2 Power supply Auto power-on output
3 Power supply Auto power-on common
Table 6 - Assignment of signals to Power Supply/Autostart
connector of GF_VEDO HL terminals
Pin Name Description
1 TX_D+ Transmit data +
2 TX_D- Transmit data -
3 RX_D+ Receive data +
4 N.C. Not connected
5 N.C. Not connected
6 RX_D- Receive data -
7 N.C. Not connected
8 N.C. Not connected
LED green left Link
LED yellow right Data
