3 • TECHNICAL SPECIFICATIONS
Table 14 shows the main technical characteristics of each GF_VEDO HL version.
In particular, it shows characteristics for displays, processors, storage devices and interfaces.
3.1 Display
The various GF_VEDO HL versions have LCD (liquid cristal display ) TFT (Thick Film Transistor) color displays
measuring 12,1”, 15”.
All GF_VEDO HL CT products let the operator interface the system with resistive Touch-Screens.
3.2 CPU e Memorie
GF_VEDO HL terminals are supplies with Intel processors.
The user can choose either the Intel Celeron M 600 MHz or the Intel Celeron M 1500 MHz.
The terminals have Intel 852GM chipsets @400MHz FSB, Intel Extreme Graphics 2 controller, 2Kb SRAM memory
with lithium buffer battery.
DOM (Disk On Module)(128MB, 1GB, 4GB) mass memories and DRAM (128MB, 256MB, 1GB) system memories
suitable for the operating system can be installed on the terminals.
3.3 Supported Operating Systems
GF_VEDO HL terminals offer the user various types of operating systems:
• VxWorks: a real-time operating system by Wind River System.
Just like most real-time operating systems, VxWorks includes a multitasking kernel with optional scheduling
and rapid interrupt response.
• Windows XP Embedded: the modular version of Microsoft Windows XP Professional.
3.4 Bios
The Bios supplied for GF_VEDO HL terminals is Phoenix Award BIOS
3.5 GF_VEDO HL user connections
The user connections specified on Table 4 are made at the bottom by means of Gefran standard and custom
connectors.
7
6
5
4
3
13
12 11
10 9
1
2
8

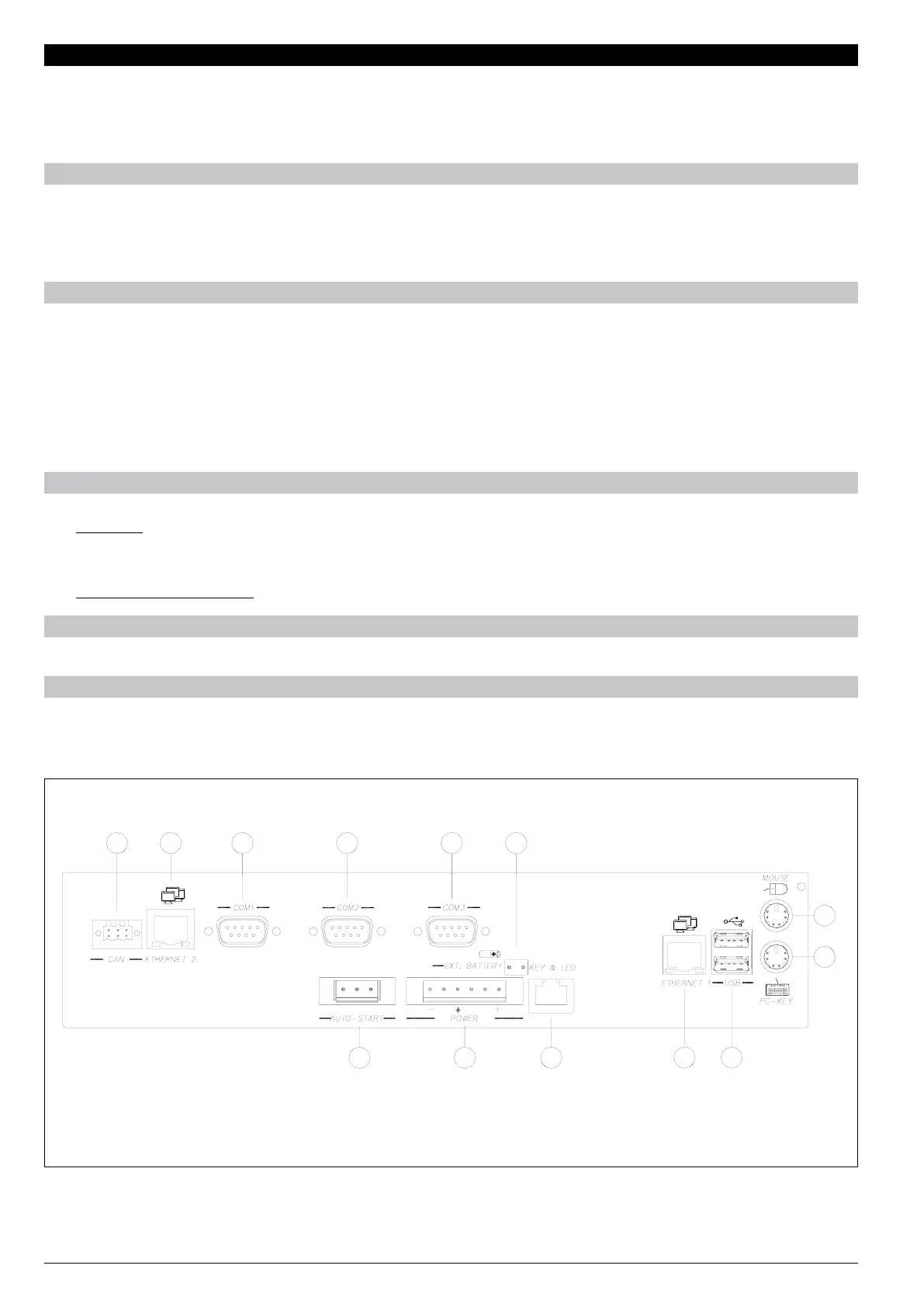

Figure 7 - GF_VEDO ML connector
