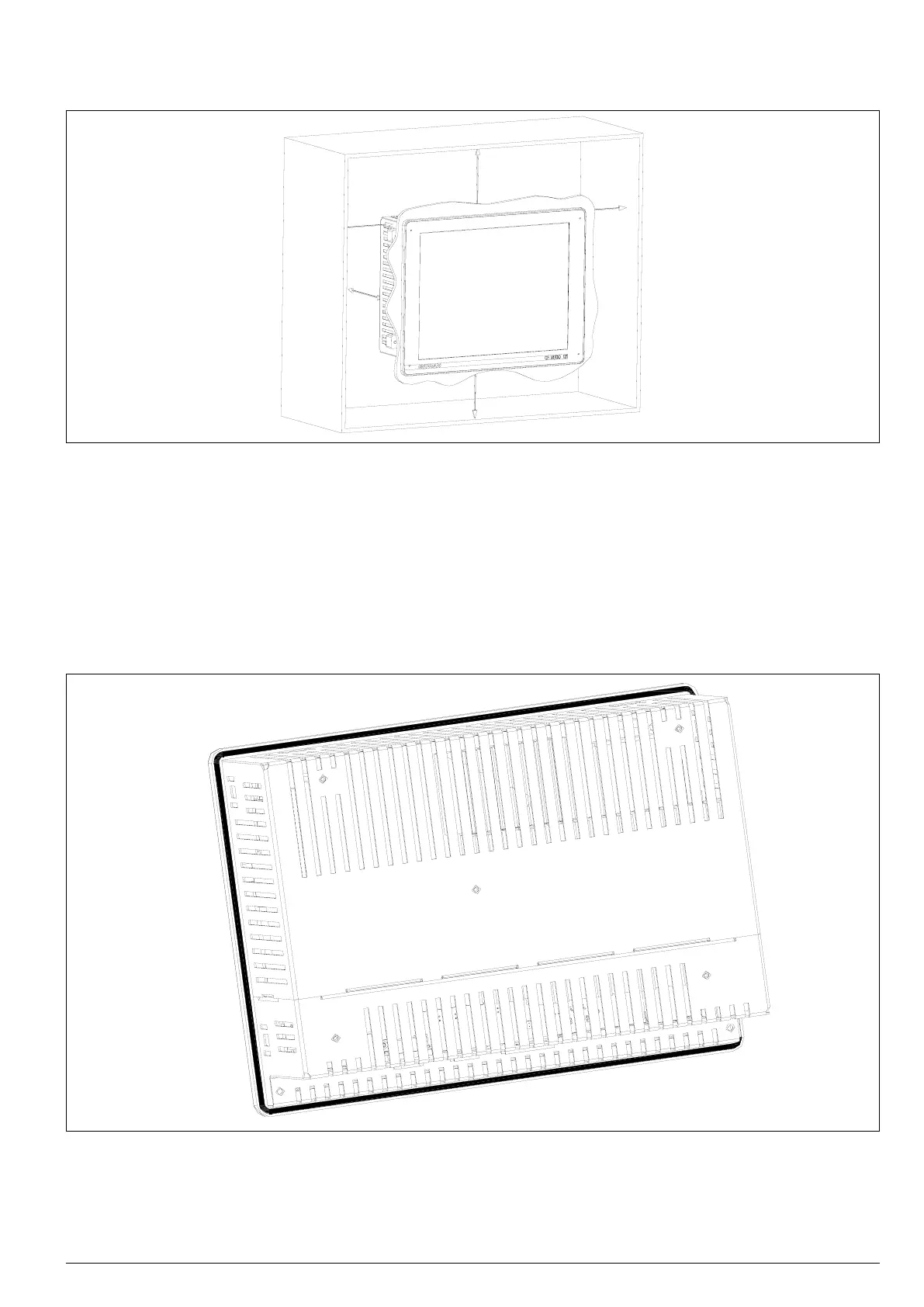

To properly dissipate the heat produced by the GF_VEDO_HL terminals, there should be a minimum distance (“d”)
of 10 cm between the rear protective surfaces of the terminals and the panels around them.
Figure 6 - O-Ring on GF_VEDO HL terminal
Cleaning the device
Clean the device only with a soft cloth and non-abrasive neutral soap.
Do not use solvents.
Instructions for panel installation:
• make the edges of the hole for the panel perfectly smooth and flat
• tighten each fastening screw (or nut) until the corner of the frame touches the panel
• the panel hole must have the dimensions specified in this manual
The GF_VEDO HL terminals also have an O-Ring inserted at the rear of the display frames, as shown in Figure 6.
d
d
d
d
d
Figura 5
