USING A FUNCTION ASSOCIATED WITH DIGITAL
INPUT AND VIA SERIAL
At power-on or on the leading edge of digital input 1 or 2, all zones assume the state set by the digital input. For each
zone, this state can be changed by writing via serial.
The setting via serial is saved in eeprom (STATUS_W_EEP, address 698).
State A/B Setting Address for writing via serial
dIG. or dIG.2 Access at 16 bits Access at 1 bit
AUTO/MAN controller 1 word 305 bit 4 bit 1
LOC/REM setpoint 2 word 305 bit 6 bit 10
SP1/SP2 setpoint 5 word 305 bit 1 bit 75
ON/OFF software 6 word 305 bit 3 bit 11
STOP/START selftuning 8 word 305 bit 2 bit 3
STOP/START autotuning * 9 word 305 bit 5 bit 29
* continuous or one-shot

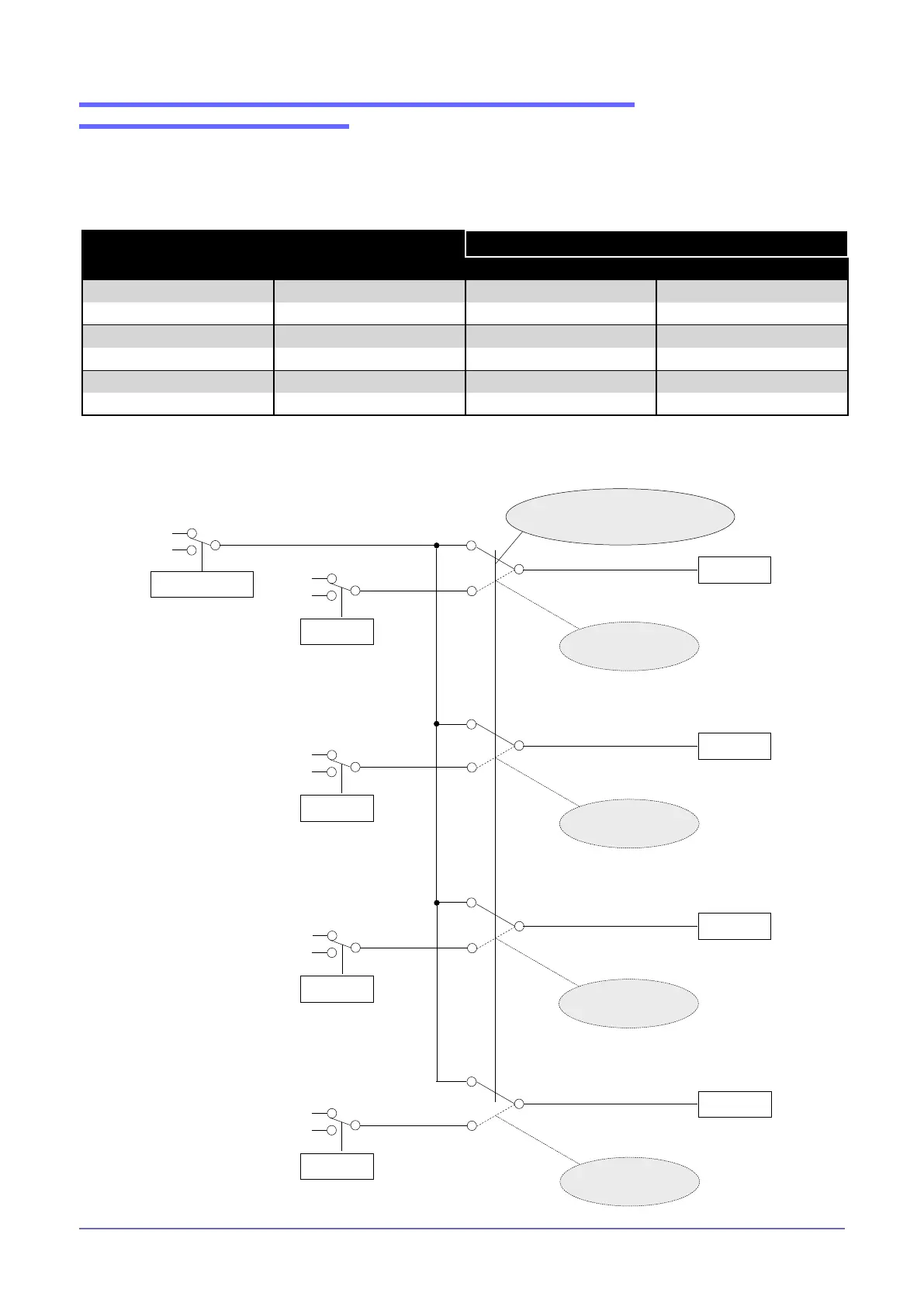

A
B
STATE OF DIGITAL
INPUT
A
B
STATE OF A/B
SERIAL zone 1
A
B
STATE OF A/B
SERIAL zone 2
A
B
STATE OF A/B
SERIAL zone 3
A
B
STATE OF A/B
SERIAL zone 4
STATE OF A/B
zone 1
STATE OF A/B
zone 2
STATE OF A/B
zone 3
STATE OF A/B
zone 4
SERIAL WRITING
STATE A/B zone 4
SERIAL WRITING
STATE A/B zone 3
SERIAL WRITING
STATE A/B zone 2
SERIAL WRITING
STATE A/B zone 1
LEADING EDGE OF DIGITAL INPUT
or at POWER-ON
