30
80415F_MSW_GFX4-IR_05-2019_ENG

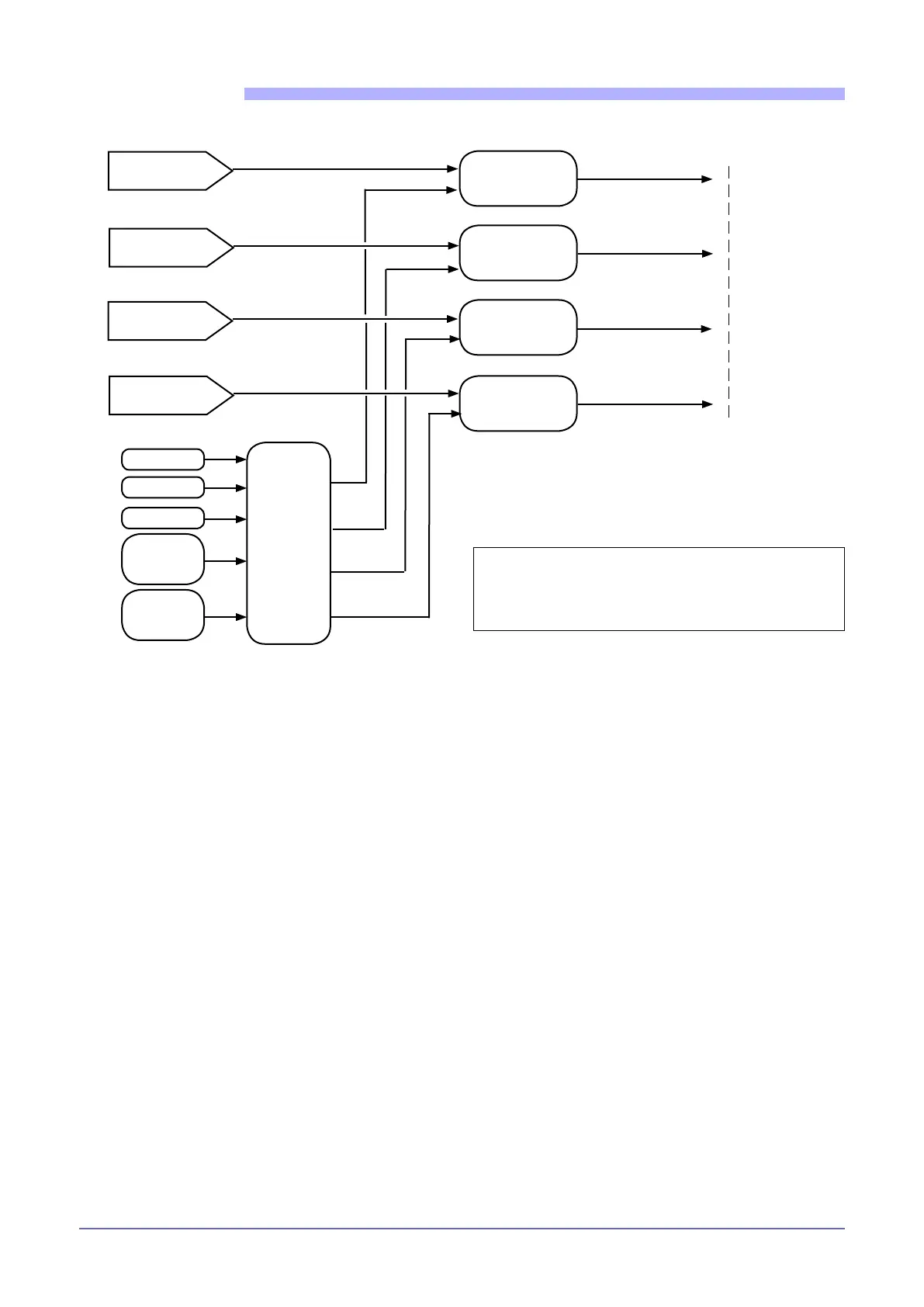

FUNCTIONAL DIAGRAM
Alarm setpoint
AL1
State of alarm
AL1
PV
Select
reference
variable
(A1.r
, A2.r
,
A3.r
, A4.r)
See outputs
I.tV1 or
I.tV2 or
I.tV3
I.tA1 or
I.tA2 or
I.tA3
In.2
S
PA
T
ype of alarm
and hysteresis
(A1.t, HY
.1)
T
ype of alarm
and hysteresis
(A2.t, HY
.2)
T
ype of alarm
and hysteresis
(A3.t, HY
.3)
T
ype of alarm
and hysteresis
(A4.t, HY
.4)
State of alarm
AL2
State of alarm
AL3
State of alarm
AL4
Alarm setpoint
AL2
Alarm setpoint
AL3
Alarm setpoint
AL4
PV
: process variable
SP
A: active setpoint
In.2: auxiliary analog input
I.tAx: ammeter input
I.tVx: voltmeter input
29
31
