RS5/6-34 Telescopic Handler HYDRAULICS
PRINTED IN U.S.A. 601-32 913241/BP0508
Alt= to hide template information
Alt+ to display template information
Template Name: OML_2_col 0-00000
Template Date: 1994_04_22

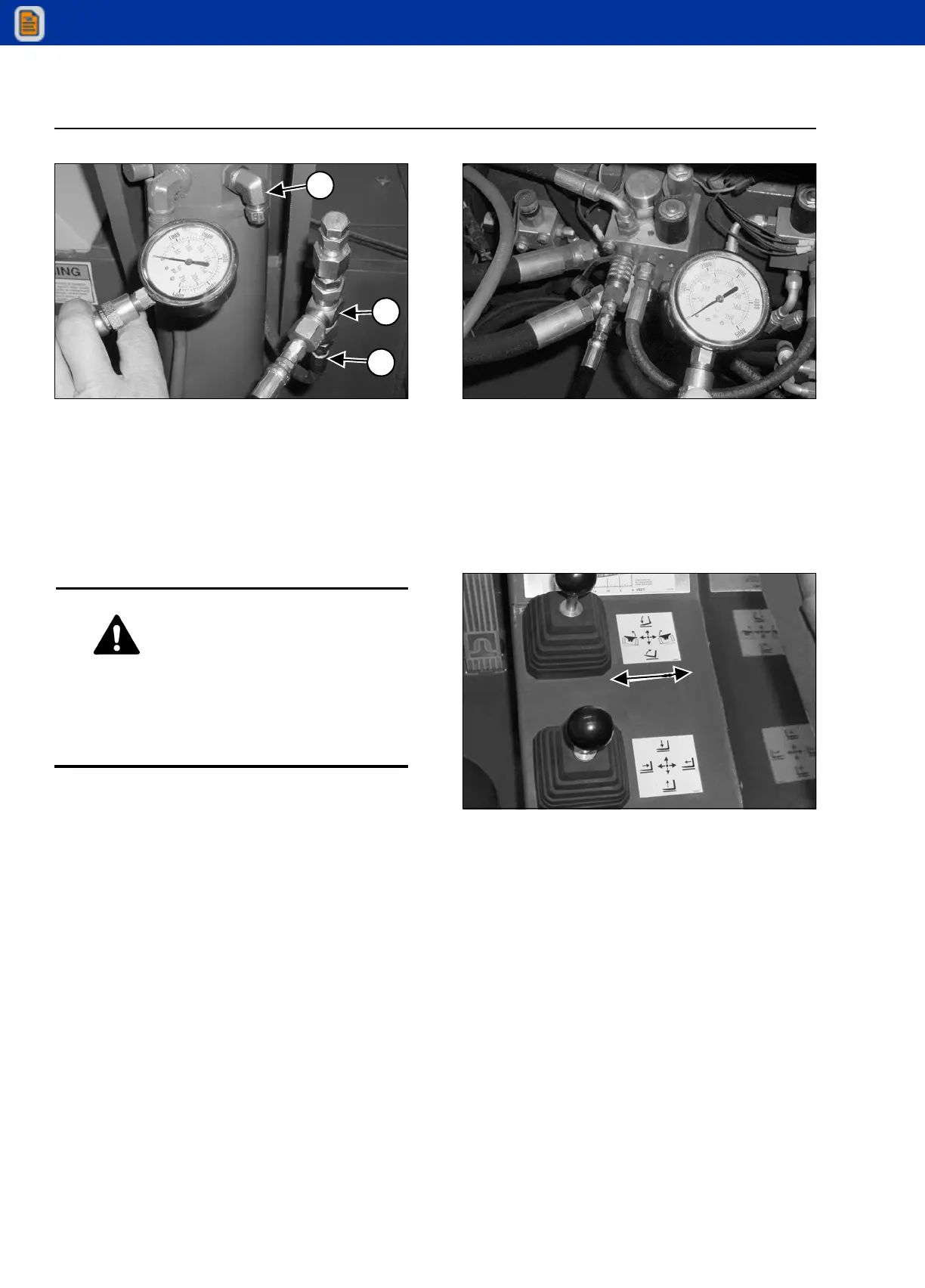

STEP 66
G0805122
Shut off the engine. Remove the two hoses from the
stabilizer cylinder. Install caps on the cylinder elbow
fittings and plugs in the hose ends.
FRAME LEVELING COUNTER BALANCE
VALVE QUICK TEST
WARNING
To perform any frame leveling tests, the park
brake must be OFF. Park the unit on level ground
and place blocks in front of and behind both rear
wheels.
STEP 67
G0805193
Install a 5000 psi (345 bar) pressure gauge and hose
on the SP test port of the flow divider.
NOTE: The hose must be long enough to observe
the pressure gauge from inside the cab or standing
clear of the forklift.
STEP 68
G0805077
Start the engine and run at 1000 RPM. Hold the
frame leveling joystick in the TILT RIGHT or TILT
LEFT position. The pressure gauge should read
1500 psi (103 bar) as the frame is tilting.
If the pressure is less than 1500 psi (103 bar)
proceed to the next step.
If the pressure is more than 1500 psi (103 bar)
proceed to Step 77 (Tilt Right) or Step 82 (Tilt Left).
To Next Page
