RS5/6-34 Telescopic Handler HYDRAULICS
Printed in USA 601-33 913241/BP0508
Alt= to hide template information
Alt+ to display template information
Template Name: OML_2_col 0-00000
Template Date: 1994_04_22

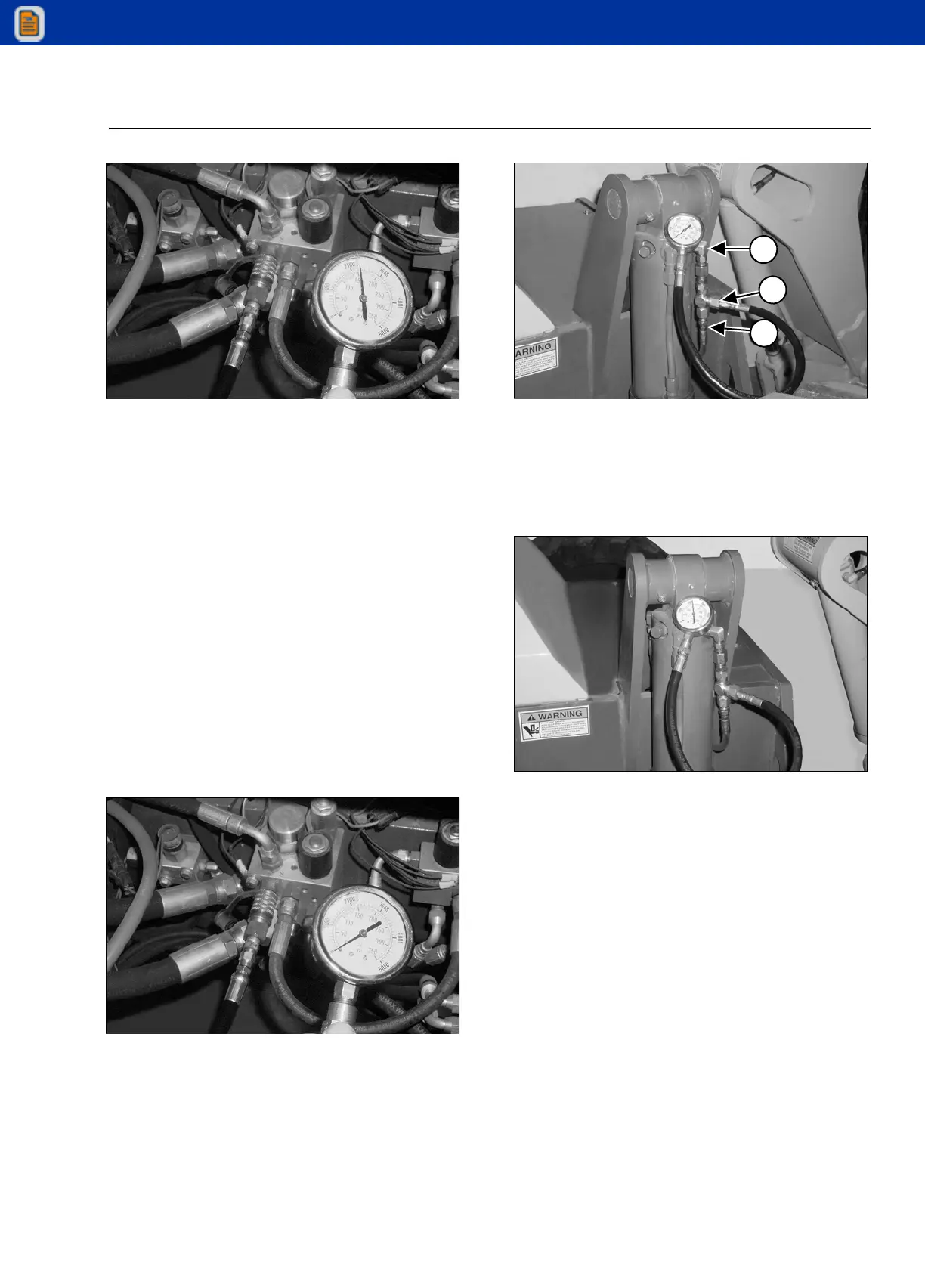

STEP 69
G0805117
Hold the joystick in the TILT RIGHT or TILT LEFT
Position until the frame leveling cylinder reaches the
end of its stroke. The pressure gauge should read
2000 psi (138 bar).
If the pressure is less than 2000 psi (138 bar) go to
the Frame Leveling Cylinder Direct Test.
If the pressure is 2000 psi (138 bar) proceed to Step
76.
STEP 70
Repeat Steps 73 and 74 in the opposite direction.
FRAME LEVELING COUNTERBALANCE
VALVE DIRECT TEST
STEP 71
G0805193
Shut off the engine. Remove the pressure gauge
from the SP test port on the flow divider.
STEP 72
G0805121
Remove the supply hose (1) from the tilt right (rod)
port (2) of the frame leveling cylinder. Install the 5000
psi (345 bar) pressure gauge (3) and hose between
the cylinder port (2) and supply hose (1).
STEP 73
G0805196
Start the engine and run at 1000 RPM. Hold the
frame leveling joystick in the TILT LEFT position (1)
until the cylinder reaches the end of its stroke. Move
and hold the joystick to the TILT RIGHT position (2).
The pressure gauge should read 1500 psi (103 bar)
when the frame is tilting (moving) right.
If the pressure is less than 1500 psi (103 bar),
proceed to the next step.
To Next Page
