Gehl SL4840 - Page 89

917001/CP0905 85
SL4840
10.8 ft
3
(0.3 m
3
) Bucket
w/10 x 16.5 Tires
inches mm

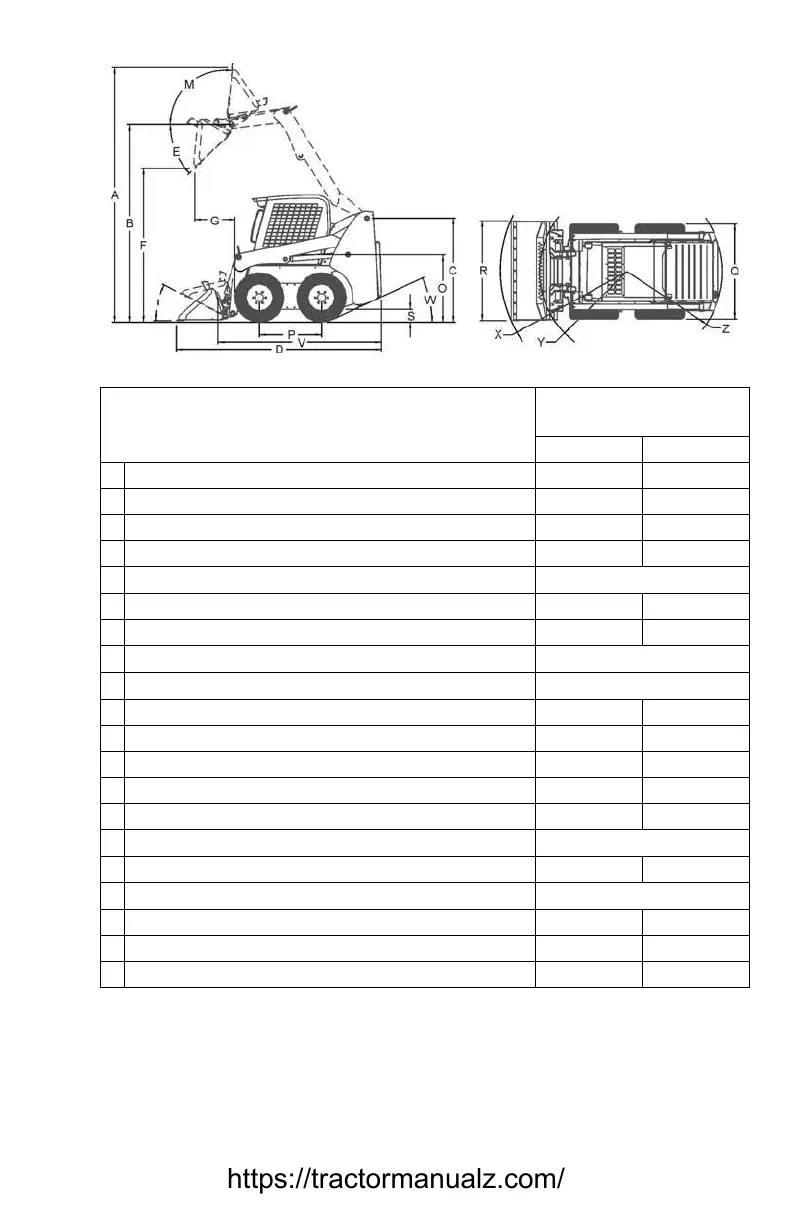

A Overall Operation Height – Fully Raised 149.0 3785
B Height to Hinge Pin – Raised 115.5 2934
C Overall Height – of ROPS 78.0 1981
D Overall Length – Down 126.3 3207
E Dump Angle at Full Height
40
o
F Dump Height 89.5 2273
G Dump Reach – Full Height 25.0 635
J Rollback at Ground
27
o
M Rollback Angle at Full Height
86
o
O Seat to Ground Height 37.5 953
P Wheel Base – Nominal 41.5 1054
Q Overall Width – Less Bucket 63.5 1613
R Bucket Width – Overall 66.0 1679
S Ground Clearance – to Chassis (Between Wheels) 7.5 191
U Maximum Grading Angle
91
o
V Overall Length (Less Bucket) 93.3 2370
W Departure Angle
25
o
X Clearance Circle – (With Bucket) 76.0 1930
Y Clearance Circle – Front (Less Bucket) 48.0 1219
Z Clearance Circle – Rear 61.5 1562
