9 Manufacturer's information
9 Manufacturer's information
9.1 Delivery
● Check that all parts are present and check for any damage immediately upon receipt.
The product's performance is tested at the factory. The scope of delivery is apparent from the dispatch documents and the
design from the order number.
9.2 Packaging
The product is packaged in a cardboard box which can be recycled as paper.
9.3 Transport
1. Only transport the product by suitable means. Do not drop. Handle carefully.
2. After the installation dispose of transport packaging material according to relevant local or national disposal regulations /
environmental protection laws.
9.4 Storage
1. Store the product free from dust and moisture in its original packaging.
2. Avoid UV rays and direct sunlight.
3. Do not exceed the maximum storage temperature (see chapter "Technical data").
4. Do not store solvents, chemicals, acids, fuels or similar fluids in the same room as GEMÜ products and their spare parts.
10 Assembly and installation

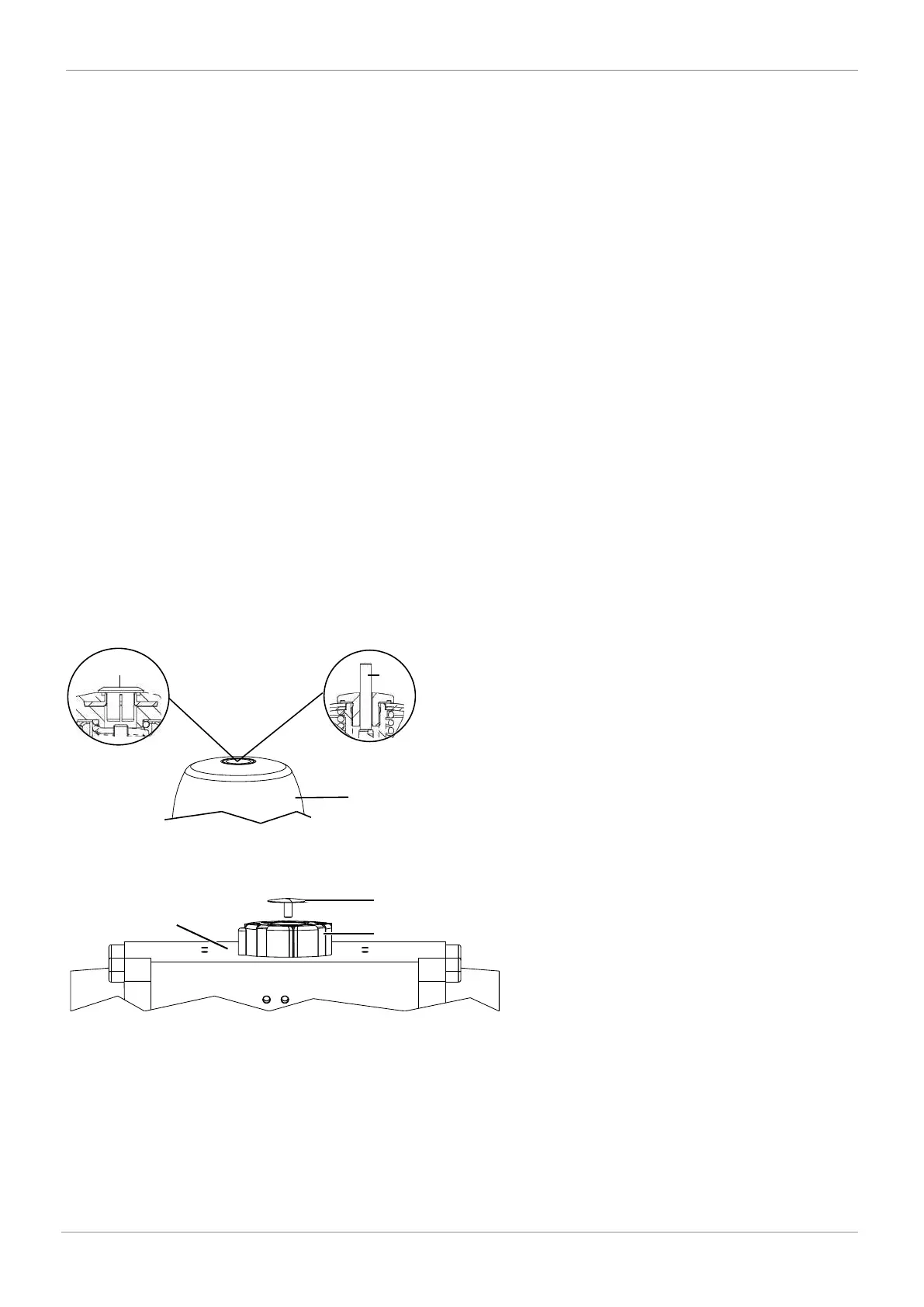

10.1 Preparations for installing the valve (linear actuator)
1. Move the actuator A into zero position (actuator vented).
2. Remove optical position indicator 2 and / or protective cap 1 from the actuator top.
10.2 Preparations for installation of the valve (quarter turn actuator)
1. Move the actuator A into zero position (actuator vented).
2. Remove the screw 1 from the trigger cam 2.
