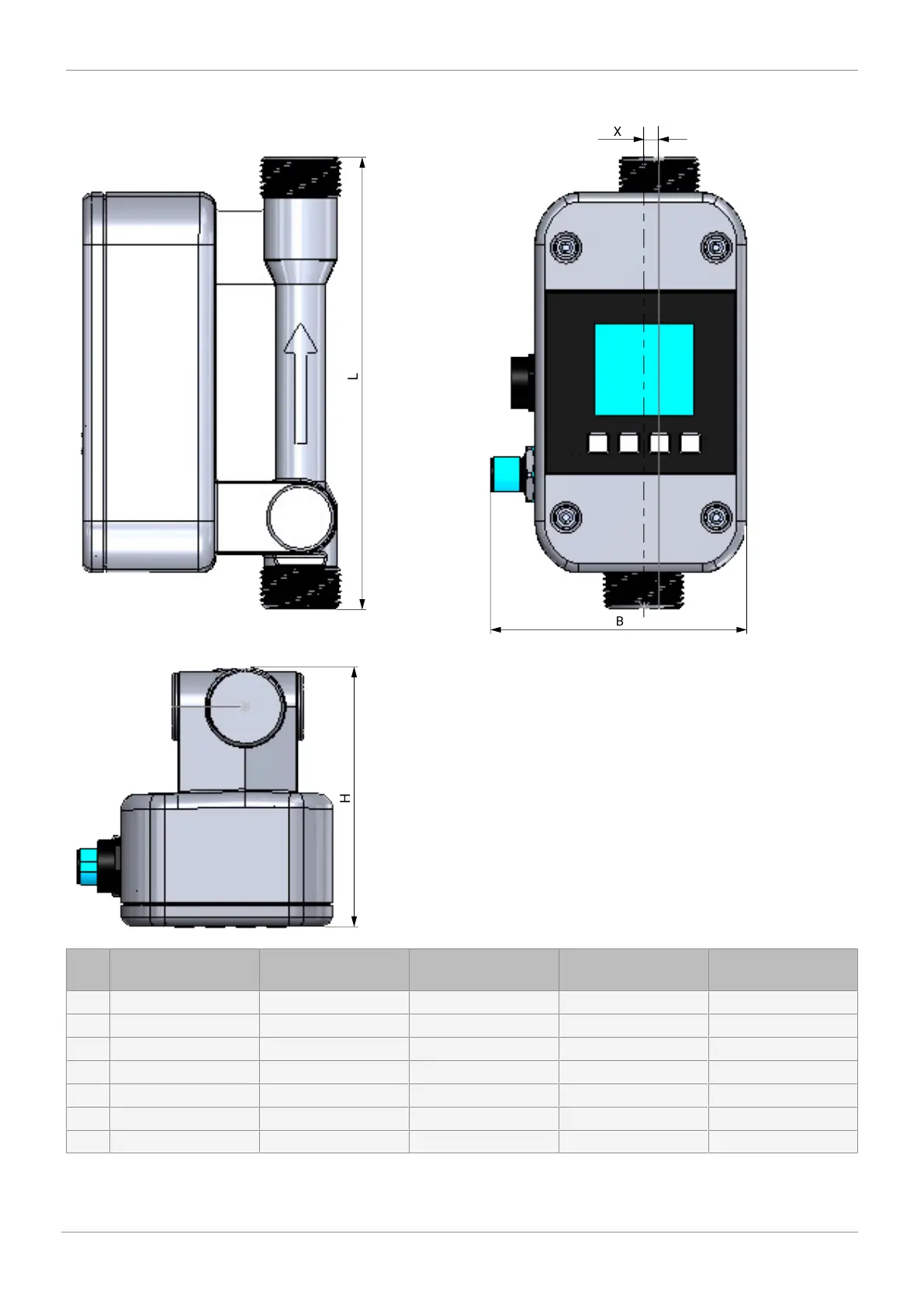

7 Dimensions
L
B
H
X
DN
Connection
L
W
H
X
Channel offset
10
G1/2
147
84
83
5
15
G3/4
147
84
84.5
5
20
G1
160
84
94.2
5
25
G1¼
168
84
98.5
5
32
G2
220
80
120
-
40
G2¼
220
84
122
-
50
G2¾
220
95
131
-
Dimensions in mm
GEMÜ 3040
www.gemu-group.com
11 / 34
7 Dimensions
10
