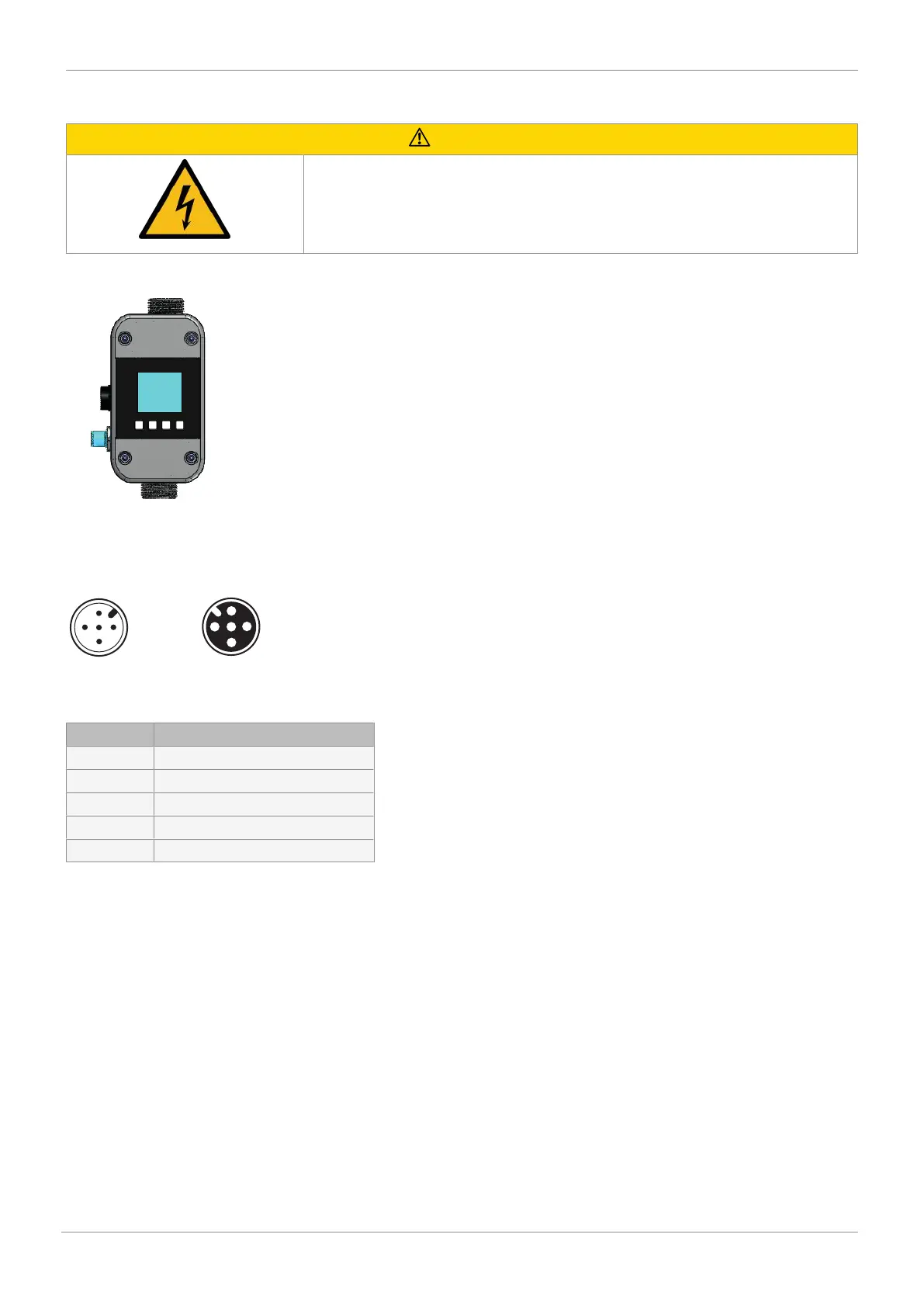

10 Electrical connection
CAUTION
Electric shock by high voltage
▶ Danger of injury or death caused by electric shock.
● The measurement device must not be installed, wired or dismantled while live with
operating voltage.
● The supply voltage of the product must be switched off during these procedures.
10.1 Position of the connectors
X1
10.2 5-pin plug with 1-wire communication
Pin assignment: Plug/coupling for 5-pin
1
4
3
2
5
1
5
4
3
2
Plug assignment, 5-pin, with output assignment at the factory
The inputs and outputs can be reprogrammed specific to application.
Pin Signal name
1 Uv, 24 V DC supply voltage
2 Pulse output
3 Uv, GND supply voltage
4 Communication
5 Analogue output
