GEM 3040 User Manual

www.gemu-group.com 21 / 34 GEMÜ 3040
11.2.3.3 Leak flow volume delay
Activation of the leak flow volume can be delayed. The value
can be set with the menu.
Leak flow volume
Leak flow volume x 0.75
Flow without leak flow volume
Flow without
leak flow volume delay
Flow with leak flow volume
2 s delay
Time [s]
Leak flow volume delay function
Example: 2 seconds
Flow [ml/s]

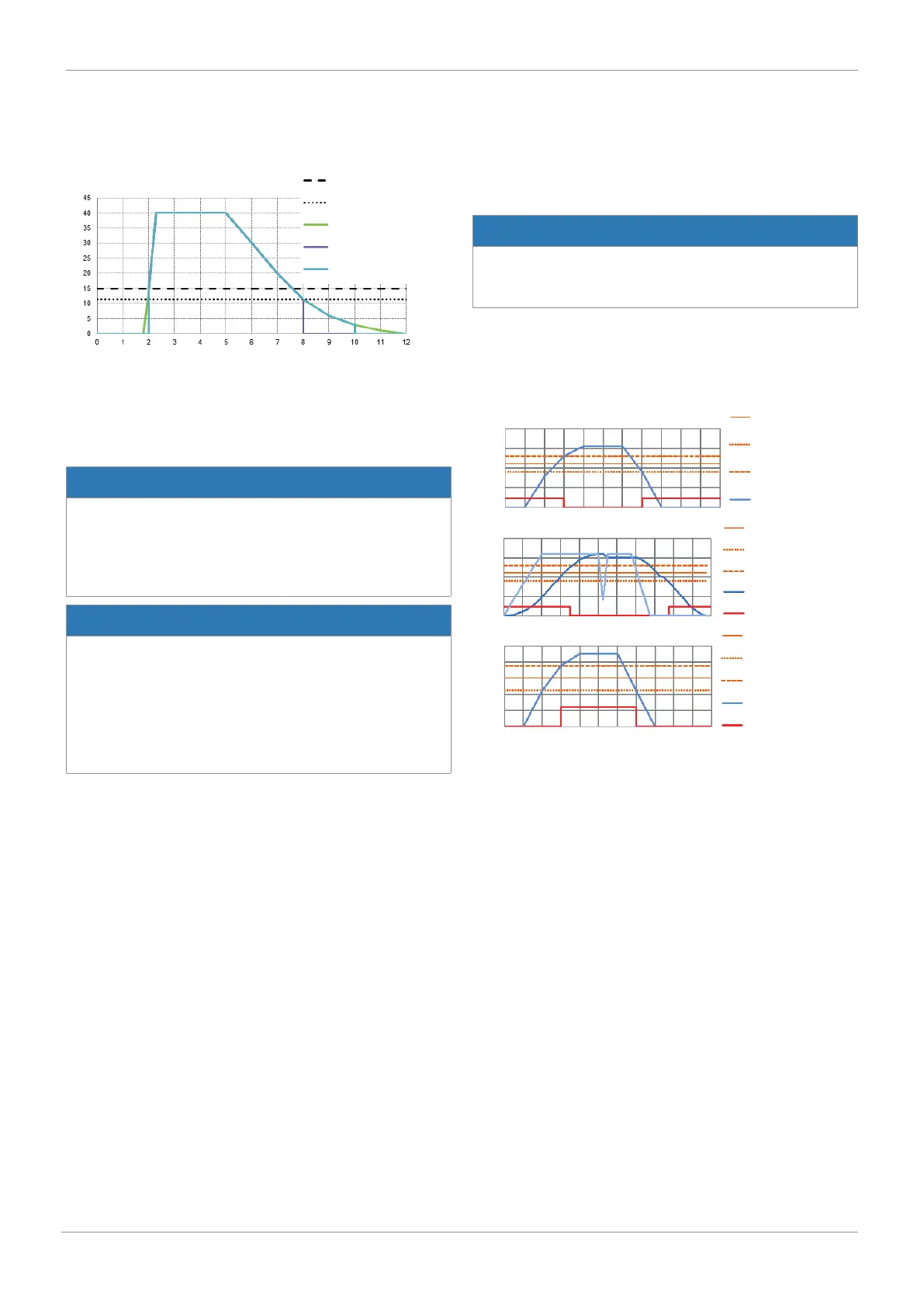

Fig.11: Leak flow volume delay function
Setting range: 0 to 99.9 s in steps of 0.1 s
Factory setting: 0.5 s
11.2.3.4 Basic calibration
NOTICE
▶ The "Basic calibration" function enables an optimal adapt-
ation to medium-specific properties. By performing this
function, the product runs through an internal parametriz-
ation and saves the relevant parameters independently.
This process can take up to approx. one minute.
NOTICE
Important:
▶ The device must be filled with liquid and there must be no
flow so that the adjustment can be correctly executed.
▶ If an error has been detected during the calibration, for
example, because the device is not filled, "Error" appears
on the display. If the calibration has been performed suc-
cessfully, the message "Carried out" is displayed.
11.2.3.5 Water
For this menu item, the correction values of the medium mat-
rix are written back to the water value.
11.2.4 General settings
11.2.4.1 Daily quantity reset
The counted daily quantity of the product can be reset using
this function. For an operating example of the quantity reset,
see annex.
NOTICE
Important:
▶ Unintentionally deleted counter readings cannot be re-
stored. Counting begins at 0 again after the reset.
11.2.4.2 Hysteresis limit value
The limit values can be equipped with a hysteresis. This is to
prevent frequent switching of the outputs if a flow is near a
limit value.
High set point = 110 ml/s Hysteresis = 20 ml/s Filter = off
200
150
100
50
0
Flow [ml/s]
0
1
2
3
4
5 6
7 8
9
10
11
Time [s]
High set point 11 [ml/s]
High set point - hysteresis
90 [ml/s]
High set point + hysteresis
130 [ml/s]
Flow filter [ml/s]
High set point 11 [ml/s]
High set point - hysteresis
90 [ml/s]
High set point + hysteresis
130 [ml/s]
Flow filter [ml/s]
Digital output =
high set point 24 V make
contact
200
150
100
50
0
Flow [ml/s]
0
1
2 3
4
5
6
7
8
9
10
11
Time [s]
High set point = 110 ml/s Hysteresis = 20 ml/s Filter = medium (3 s)
0
1
2
3
4
5
6
7
8
9
10
11
Time [s]
Low set point = 60 ml/s Hysteresis = 15 ml/s Filter = off
100
80
60
40
0
Flow [ml/s]
20
Low set point 60 [ml/s]
Low set point - hysteresis
45 [ml/s]
Low set point + hysteresis
75 [ml/s]
Flow filter [ml/s]
Digital output =
low set point 24 V make
contact
Fig.12: Hysteresis function for limit value
Setting range:
0 to 8000 ml/s in steps of 0.01 ml/s.
0 to 900 l/min in steps of 0.01 l/min.
Factory setting: 0
11.2.4.3 Low set point
The low set point for the digital output is set here.
Setting range:
0 to 8000 ml/s in steps of 0.01 ml/s.
0 to 900 l/min in steps of 0.01 l/min.
Factory setting: 0
