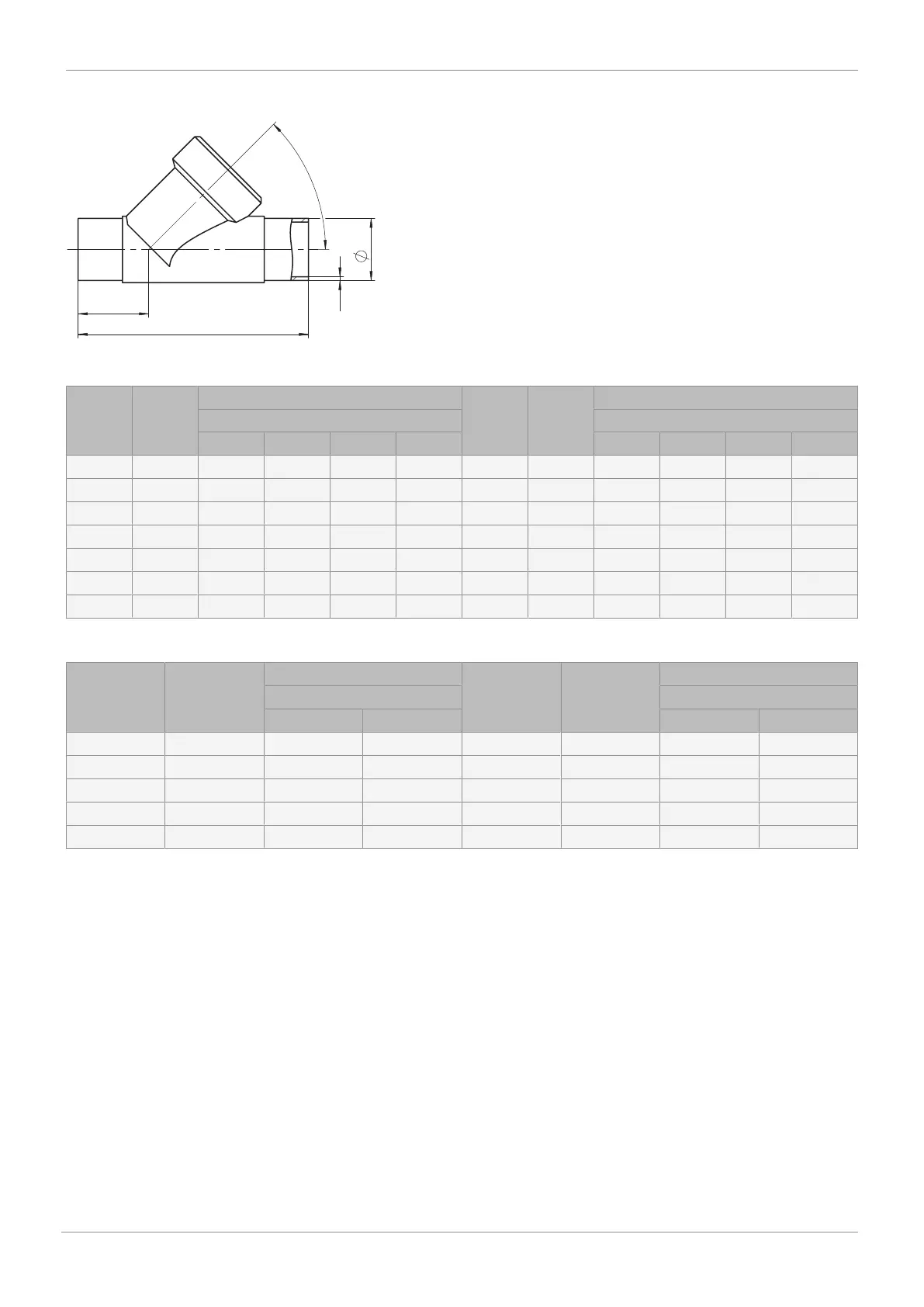

GEM 550 - Dimensions: Body (Spigot DIN;EN;ISO;ASME - Sizes 1-5); Spigot Body Dimensions (Actuator Sizes 1-5)

8.3.2 Spigot DIN/EN/ISO/ASME (code 0, 16, 17, 37, 59, 60), actuator size 1, 2, 3, 4 ,5
L
d
s
LB
45°
Connection type spigot DIN/EN/ISO (code 0, 16, 17, 60)
1)
, investment casting material (code 34)
2)
DN NPS ød L LB s
Connection type Connection type
0 16 17 60 0 16 17 60
10 3/8" - 12.0 13.0 17.2 105.0 35.5 - 1.0 1.5 1.6
15 1/2" 18.0 18.0 19.0 21.3 105.0 35.5 1.5 1.0 1.5 1.6
20 3/4" 22.0 22.0 23.0 26.9 120.0 39.0 1.5 1.0 1.5 1.6
25 1" 28.0 28.0 29.0 33.7 125.0 38.5 1.5 1.0 1.5 2.0
32 1¼" - 34.0 35.0 42.4 155.0 48.0 - 1.0 1.5 2.0
40 1½" 40.0 40.0 41.0 48.3 160.0 47.0 1.5 1.0 1.5 2.0
50 2" 52.0 52.0 53.0 60.3 180.0 48.0 1.5 1.0 1.5 2.0
Connection type spigot ASME/SMS (code 37, 59)
1)
, investment casting material (code 34)
2)
DN NPS ød L LB s
Connection type Connection type
37 59 37 59
15 1/2" - 12.70 105.0 35.5 - 1.65
20 3/4" - 19.05 120.0 39.0 - 1.65
25 1" 25.0 25.40 125.0 38.5 1.2 1.65
40 1½" 38.0 38.10 160.0 47.0 1.2 1.65
50 2" 51.0 50.80 180.0 48.0 1.2 1.65
Dimensions in mm
1) Connection type
Code 0: Spigot DIN
Code 16: Spigot EN 10357 series B, formerly DIN 11850 series 1
Code 17: Spigot EN 10357 series A (formerly DIN 11850 series 2)/DIN 11866 series A
Code 37: Spigot SMS 3008
Code 59: Spigot ASME BPE
Code 60: Spigot ISO 1127/EN 10357 series C/DIN 11866 series B
2) Valve body material
Code 34: 1.4435, investment casting
