GEM 550 - Dimensions: Body (Stutzen EN;ISO); Stutzen EN;ISO Body Dimensions

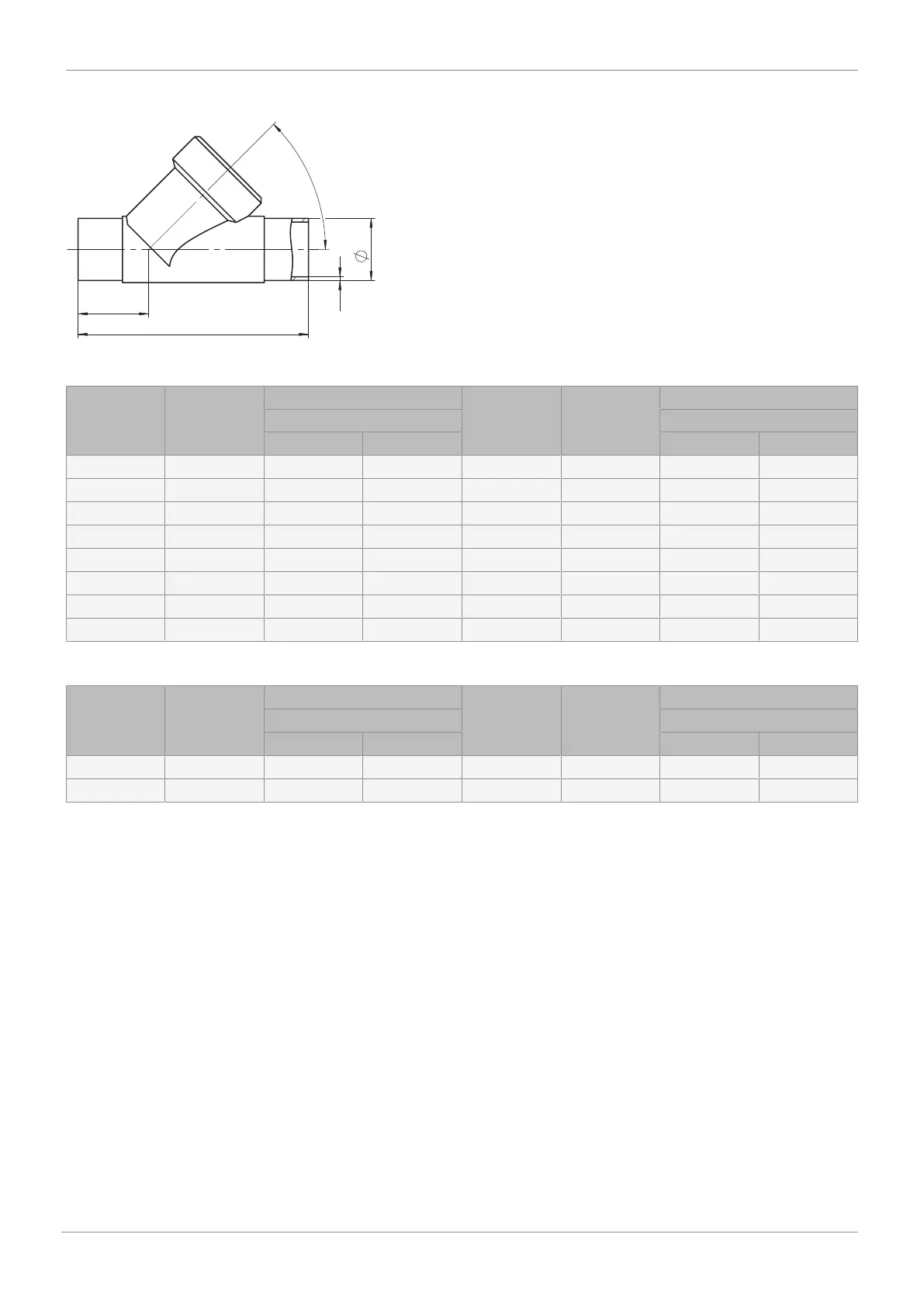

8.3.3 Stutzen EN/ISO (code 17, 37, 59, 60), actuator size 1, 2, 3, 4, 5
L
d
s
LB
45°
Connection type spigot EN/ISO (code 17, 60)
1)
, investment casting material (code 37)
2)
DN NPS ød L LB s
Connection type Connection type
17 60 17 60
15 1/2" 19.0 21.3 100.0 33.0 1.5 1.6
20 3/4" 23.0 26.9 108.0 33.0 1.5 1.6
25 1" 29.0 33.7 112.0 32.0 1.5 2.0
32 1¼" 35.0 42.4 137.0 39.0 1.5 2.0
40 1½" 41.0 48.3 146.0 40.0 1.5 2.0
50 2" 53.0 60.3 160.0 38.0 1.5 2.0
65 2½" 70.0 76.1 290.0 96.0 2.0 2.0
80 3" 85.0 88.9 310.0 95.0 2.0 2.3
Connection type spigot EN/ISO (code 37, 59)
1)
, investment casting material (code 37)
2)
DN NPS ød L LB s
Connection type Connection type
37 59 37 59
65 2½" 63.5 63.5 290.0 96.0 1.6 1.65
80 3" 76.1 76.0 310.0 95.0 1.6 1.65
Dimensions in mm
1) Connection type
Code 17: Spigot EN 10357 series A (formerly DIN 11850 series 2)/DIN 11866 series A
Code 37: Spigot SMS 3008
Code 59: Spigot ASME BPE
Code 60: Spigot ISO 1127/EN 10357 series C/DIN 11866 series B
2) Valve body material
Code 37: 1.4408, investment casting
www.gemu-group.com24 / 46GEMÜ 550
8 Dimensions
