GEM 550 - Dimensions: Body (Spigot EN;ISO;ASME); Spigot EN;ISO;ASME Body Dimensions

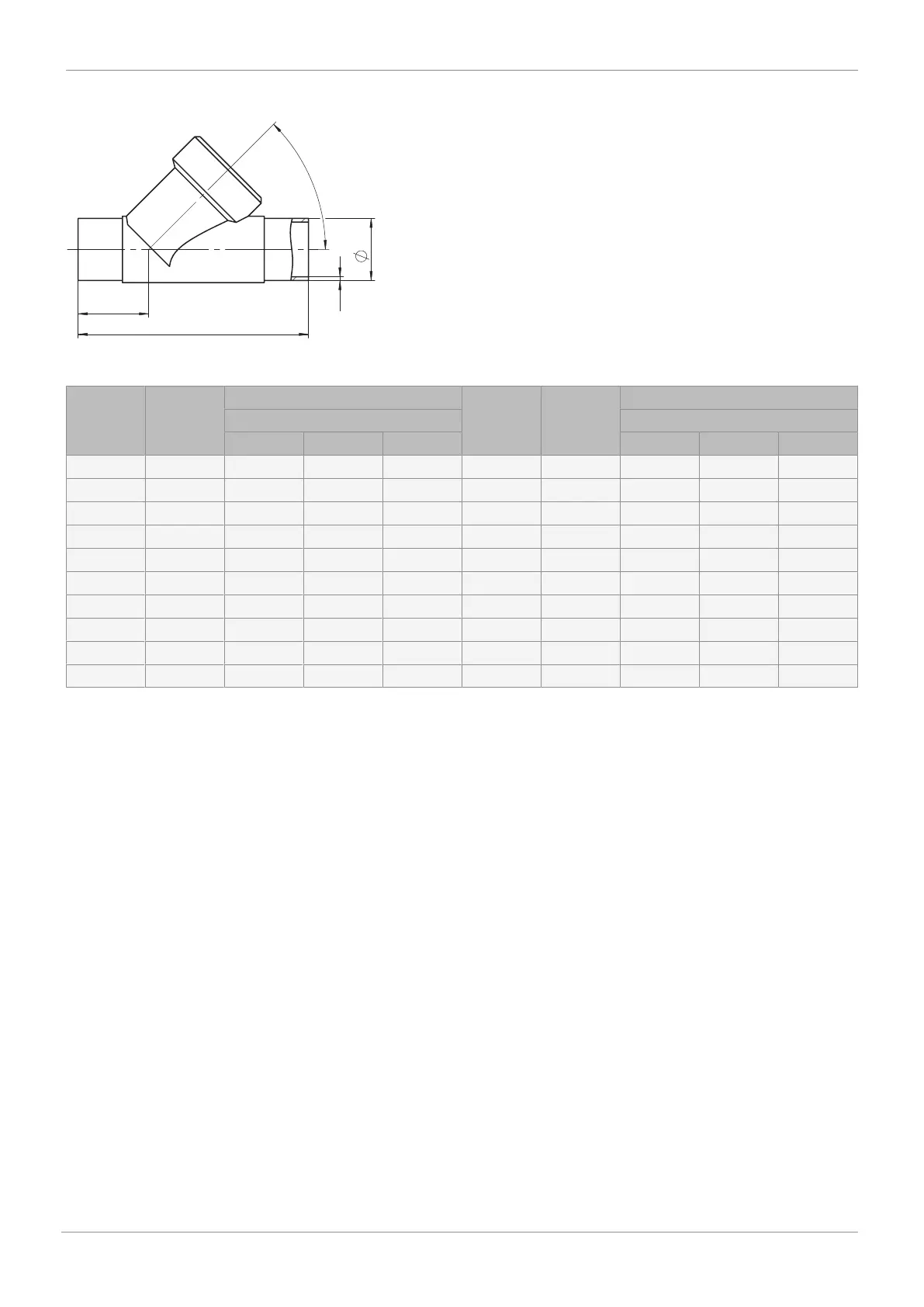

8.3.4 Spigot EN/ISO/ASME (code 17, 59, 60), actuator size 1, 2, 3, 4, 5
L
d
s
LB
45°
Connection type spigot EN/ISO/ASME (code 17, 59, 60)
1)
, investment casting material (code C2)
2)
DN NPS ød L LB s
Connection type Connection type
17 59 60 17 59 60
8 1/4" - - 13.5 105.0 35.5 - - 1.6
10 3/8" 13.0 - 17.2 105.0 35.5 1.5 - 1.6
15 1/2" 19.0 12.70 21.3 105.0 35.5 1.5 1.65 1.6
20 3/4" 23.0 19.05 26.9 120.0 39.0 1.5 1.65 1.6
25 1" 29.0 25.40 33.7 125.0 39.5 1.5 1.65 2.0
32 1¼" 35.0 - 42.4 155.0 48.0 1.5 1.65 2.0
40 1½" 41.0 38.10 48.3 160.0 47.0 2.0 1.65 2.0
50 2" 53.0 50.80 60.3 180.0 48.0 1.5 1.65 2.0
65 2½" 70.0 63.50 76.1 290.0 96.0 2.0 1.65 2.0
80 3" 85.0 76.20 88.9 310.0 95.0 2.0 76.20 2.3
Dimensions in mm
1) Connection type
Code 17: Spigot EN 10357 series A (formerly DIN 11850 series 2)/DIN 11866 series A
Code 59: Spigot ASME BPE
Code 60: Spigot ISO 1127/EN 10357 series C/DIN 11866 series B
2) Valve body material
Code C2: 1.4435, investment casting
GEMÜ 550www.gemu-group.com 25 / 46
8 Dimensions
