GEM 550 - Dimensions: Body (Threaded Socket D - Size 0); Threaded Socket DIN;NPT Body Dimensions (Size 0)

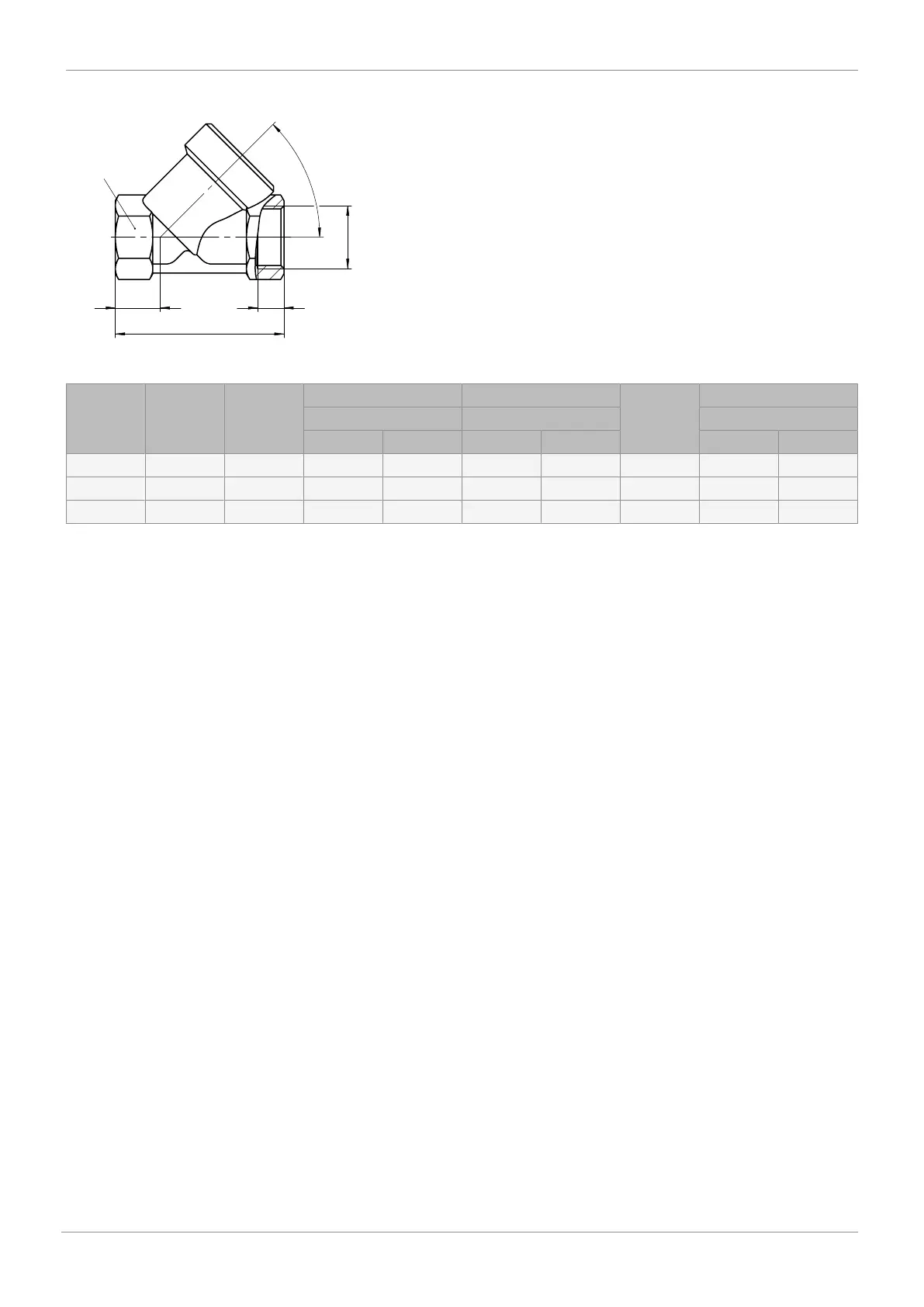

8.3.5 Threaded socket DIN/NPT body configuration D (code 1, 3D), actuator size 0
45°
R
t
L
LB
SW 2
Connection type threaded socket DIN/NPT (code 1, 3D)
1)
, investment casting material (code 37)
2)
DN NPS L LB R SW2 t
Connection type Connection type Connection type
1 3D 1 3D 1 3D
8 1/4" 65.0 19.0 19.0 G 1/4 1/4" NPT 17 12.0 10.1
10 3/8" 65.0 19.0 27.0 G 3/8 3/8" NPT 24 12.0 10.4
15 1/2" 65.0 19.0 27.0 G 1/2 1/2" NPT 24 11.4 13.6
Dimensions in mm
1) Connection type
Code 1: Threaded socket DIN ISO 228
Code 3D: Threaded socket NPT, end-to-end dimension ETE DIN 3202-4 series M8
2) Valve body material
Code 37: 1.4408, investment casting
www.gemu-group.com26 / 46GEMÜ 550
8 Dimensions
