GEM 550 - Dimensions: Body (Threaded Socket E - Sizes 1-5); Threaded Socket DIN;NPT Body Dimensions (Sizes 1-5)

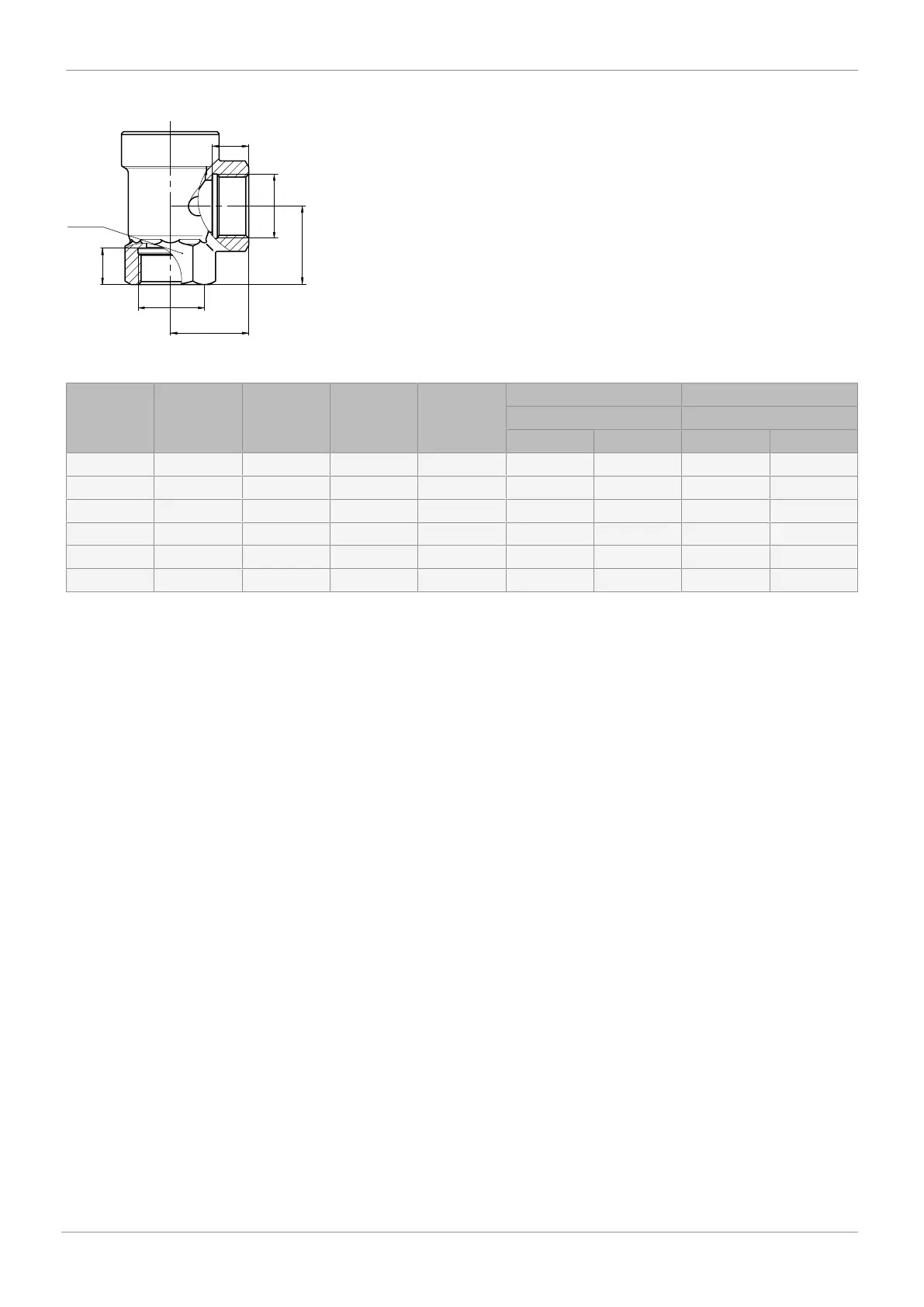

8.3.7 Threaded socket DIN/NPT body configuration E (code 1, 3D)
R
t
t
R
SW2
H2
LE
Connection type threaded socket DIN/NPT (code 1, 3D)
1)
, investment casting material (code 37)
2)
DN NPS H2 LE SW2 R t
Connection type Connection type
1 3D 1 3D
15 1/2" 30.0 30.0 27 G 1/2 1/2" NPT 15.0 13.6
20 3/4" 37.5 35.0 32 G 3/4 3/4 " NPT 16.3 14.1
25 1" 41.0 41.0 41 G 1 1" NPT 19.1 17.0
32 1¼" 48.0 50.0 50 G 1¼ 1¼" NPT 21.4 17.5
40 1½" 55.0 50.0 55 G 1½ 1½" NPT 21.4 17.3
50 2" 62.0 60.0 70 G 2 2" NPT 25.7 17.8
Dimensions in mm
1) Connection type
Code 1: Threaded socket DIN ISO 228
Code 3D: Threaded socket NPT, end-to-end dimension ETE DIN 3202-4 series M8
2) Valve body material
Code 37: 1.4408, investment casting
