GEM 550 - Dimensions: Body (Threaded Spigot DIN - Size 0); Threaded Spigot DIN Body Dimensions (Size 0)

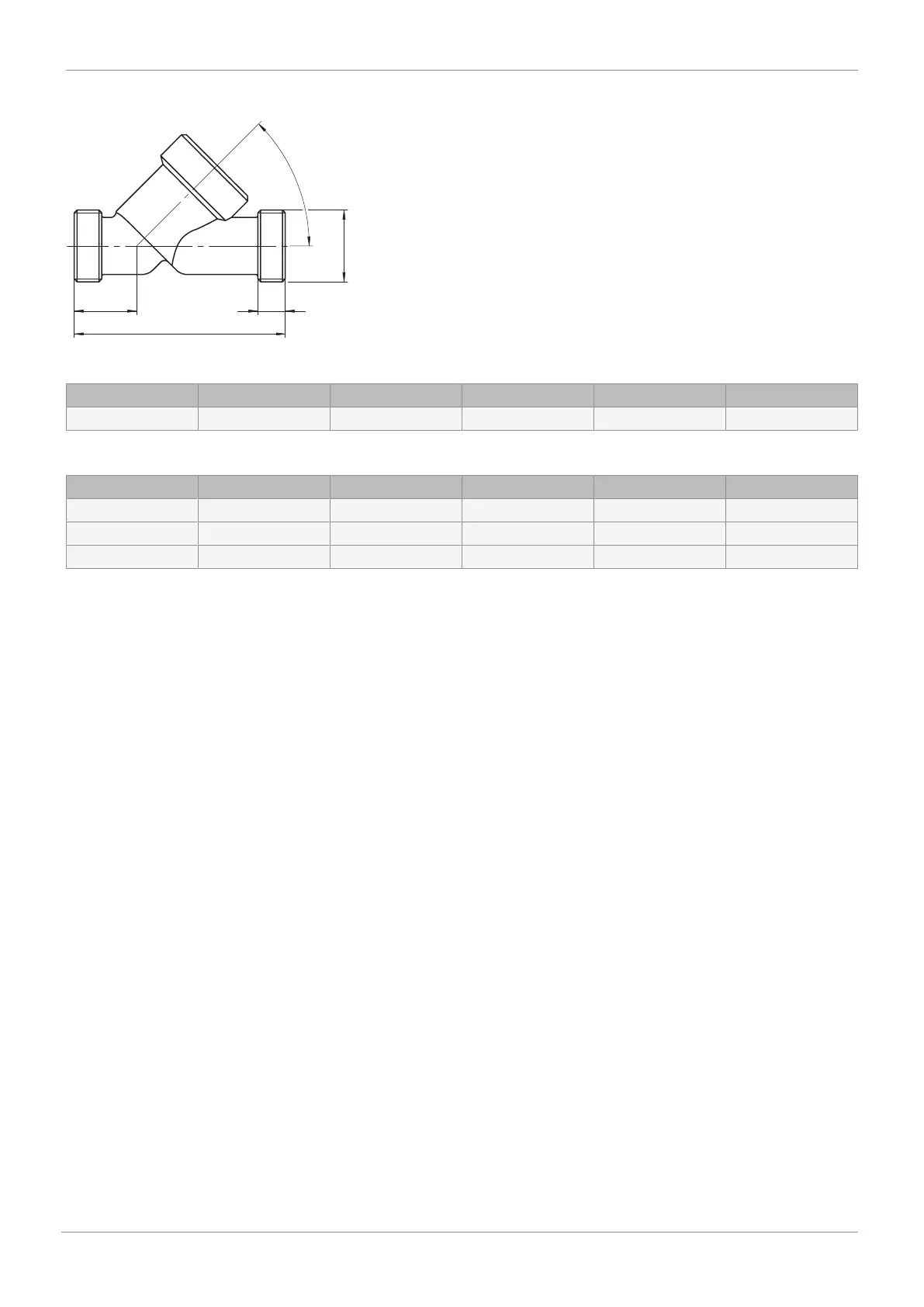

8.3.8 Threaded spigot DIN (code 9), actuator size 0
L
45°
R
t LB
Connection type threaded spigot DIN (code 9)
1)
, forged material (code 40)
2)
DN NPS L LB R t
6 1/8" 65.0 19.0 G 1/4 12.0
Connection type threaded spigot DIN (code 9)
1)
, investment casting material (code 37)
2)
DN NPS L LB R t
8 1/4" 65.0 19.0 G 3/8 12.0
10 3/8" 65.0 19.0 G 1/2 12.0
15 1/2" 65.0 19.0 G 3/4 12.0
Dimensions in mm
1) Connection type
Code 9: Threaded spigot DIN ISO 228
2) Valve body material
Code 37: 1.4408, investment casting
Code 40: 1.4435 (F316L), forged body
GEMÜ 550www.gemu-group.com 29 / 46
8 Dimensions
