GEM 550 - Dimensions: Body (Threaded Spigot DIN - Sizes 1-5); Threaded Spigot DIN Body Dimensions (Sizes 1-5)

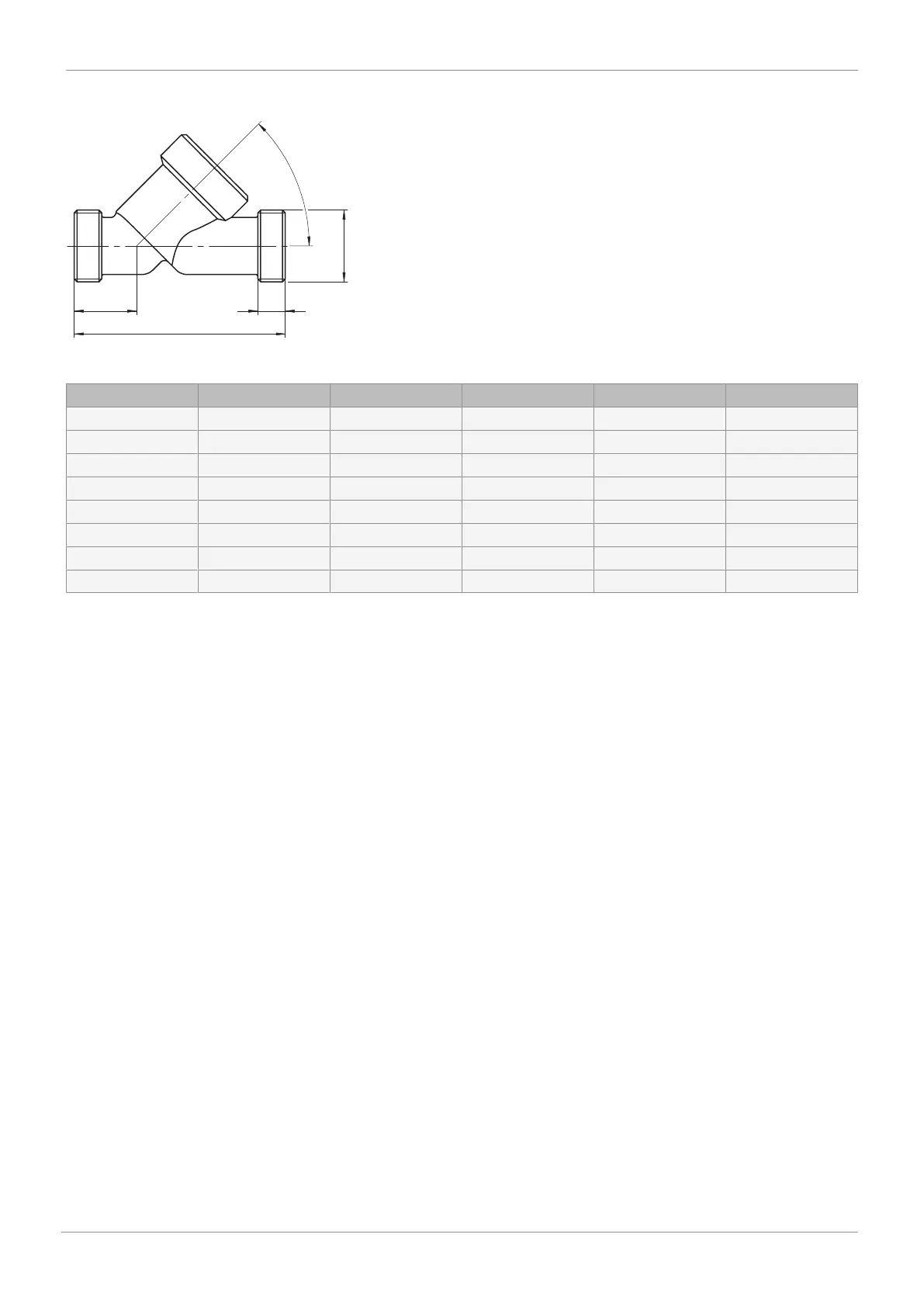

8.3.9 Threaded spigot DIN (code 9), actuator size 1, 2, 3, 4, 5
L
45°
R
t LB
Connection type threaded spigot DIN (code 9)
1)
, investment casting material (code 37)
2)
DN NPS L LB R t
15 1/2" 90.0 25.0 G 3/4 12.0
20 3/4" 110.0 30.0 G 1 15.0
25 1" 118.0 30.0 G 1¼ 15.0
32 1¼" 130.0 38.0 G 1½ 13.0
40 1½" 140.0 35.0 G 1¾ 13.0
50 2" 175.0 50.0 G 2⅜ 15.0
65 2½" 216.0 52.0 G 3 15.0
80 3" 254.0 64.0 G 3½ 18.0
Dimensions in mm
1) Connection type
Code 9: Threaded spigot DIN ISO 228
2) Valve body material
Code 37: 1.4408, investment casting
www.gemu-group.com30 / 46GEMÜ 550
8 Dimensions
