GEM 550 - Dimensions: Body (Flange EN); Flange EN Body Dimensions (Code 10)

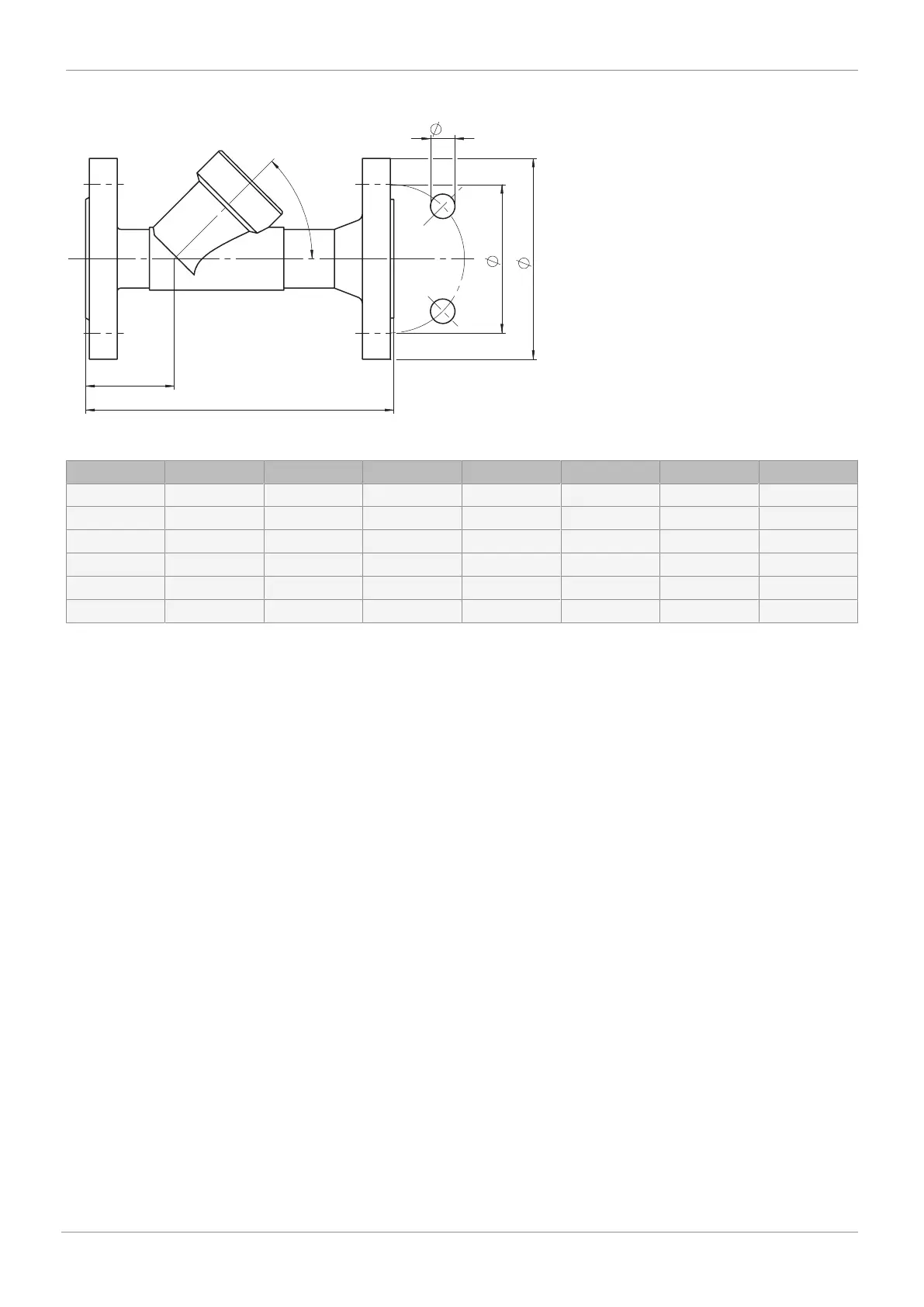

8.3.10 Flange EN (code 10), actuator size 1, 2, 3, 4, 5
FTF
D
45°
LB
L
k
Connection type flange EN (code 10)
1)
, investment casting material (code 37)
2)
DN NPS ø D FTF ø k ø L LB n
15 1/2" 95.0 130.0 65.0 14.0 33.0 4
20 3/4" 105.0 150.0 75.0 14.0 45.0 4
25 1" 115.0 160.0 85.0 14.0 44.0 4
32 1¼" 140.0 180.0 100.0 18.0 51.0 4
40 1½" 150.0 200.0 110.0 18.0 52.0 4
50 2" 165.0 230.0 125.0 18.0 50.0 4
Dimensions in mm
n = number of bolts
1) Connection type
Code 10: Flange EN 1092, PN 25, form B, face-to-face dimension FTF EN 558 series 1, ISO 5752, basic series 1
2) Valve body material
Code 37: 1.4408, investment casting
