GEM 550 - Dimensions: Body (Flange EN;ANSI); Flange EN;ANSI Body Dimensions (Codes 13, 47)

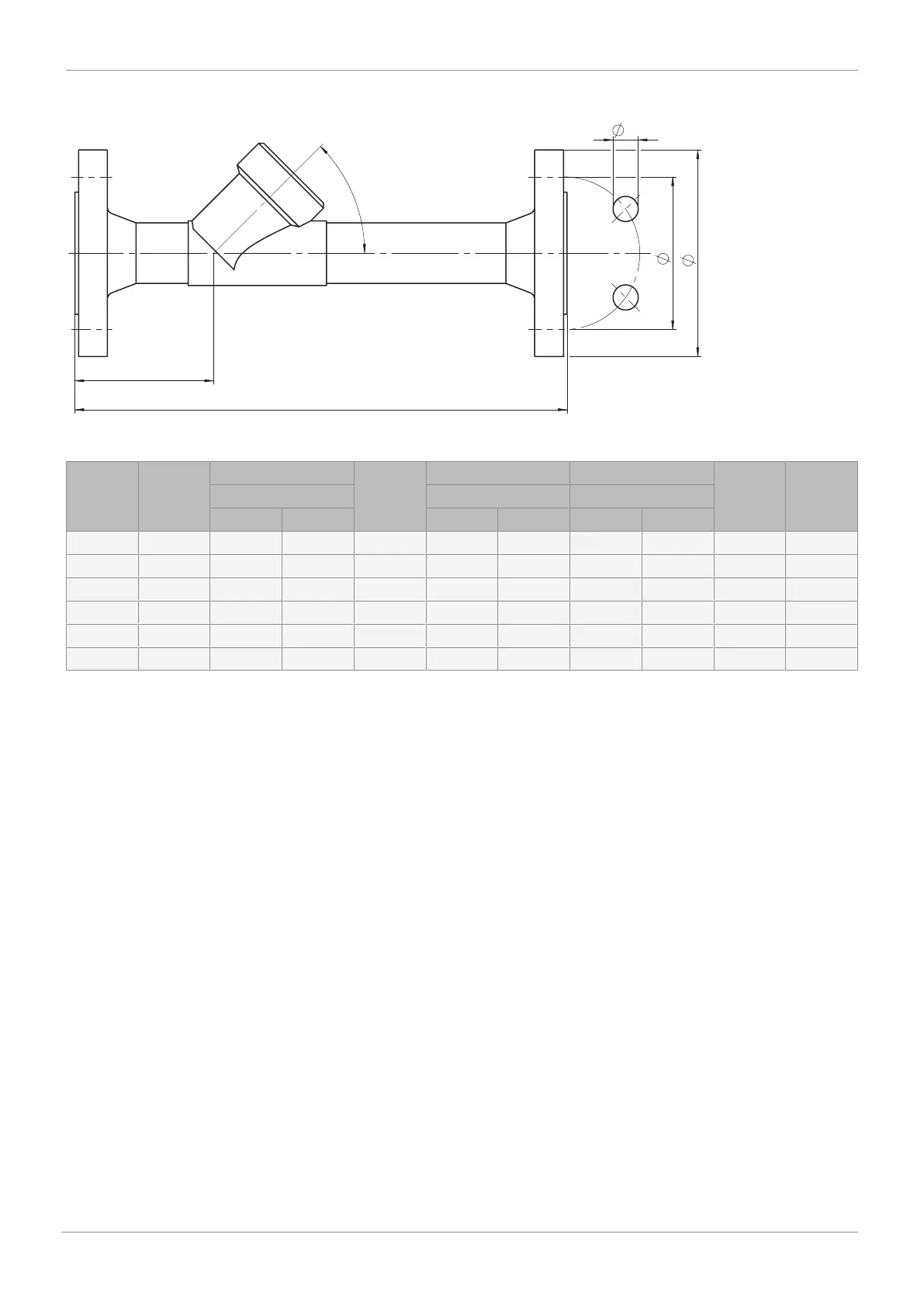

8.3.11 Flange special length EN/ANSI (code 13, 47), actuator size 1, 2, 3, 4, 5
FTF
D
L
45°
LB
k
Connection type flange, special length EN/ANSI (code 13, 47)
1)
, investment casting material (code 34)
2)
DN NPS ØD FTF øk ØL LB n
Connection type Connection type Connection type
13 47 13 47 13 47
15 1/2" 95.0 89.0 210.0 65.0 60.5 14.0 15.7 72.0 4
20 3/4" 105.0 98.6 280.0 75.0 69.8 14.0 15.7 78.0 4
25 1" 115.0 108.0 280.0 85.0 79.2 14.0 15.7 77.0 4
32 1¼" 140.0 117.3 310.0 100.0 88.9 18.0 15.7 89.0 4
40 1½" 150.0 127.0 320.0 110.0 98.6 18.0 15.7 91.0 4
50 2" 165.0 152.4 330.0 125.0 120.7 18.0 19.1 95.0 4
Dimensions in mm
n = number of bolts
1) Connection type
Code 13: Flange EN 1092, PN 25, form B
Code 47: Flange ANSI Class 150 RF
2) Valve body material
Code 34: 1.4435, investment casting
www.gemu-group.com32 / 46GEMÜ 550
8 Dimensions
