GEM 550 - Dimensions: Body (Clamp DIN;ASME); Clamp DIN;ASME Body Dimensions (Codes 80, 82, 86, 88)

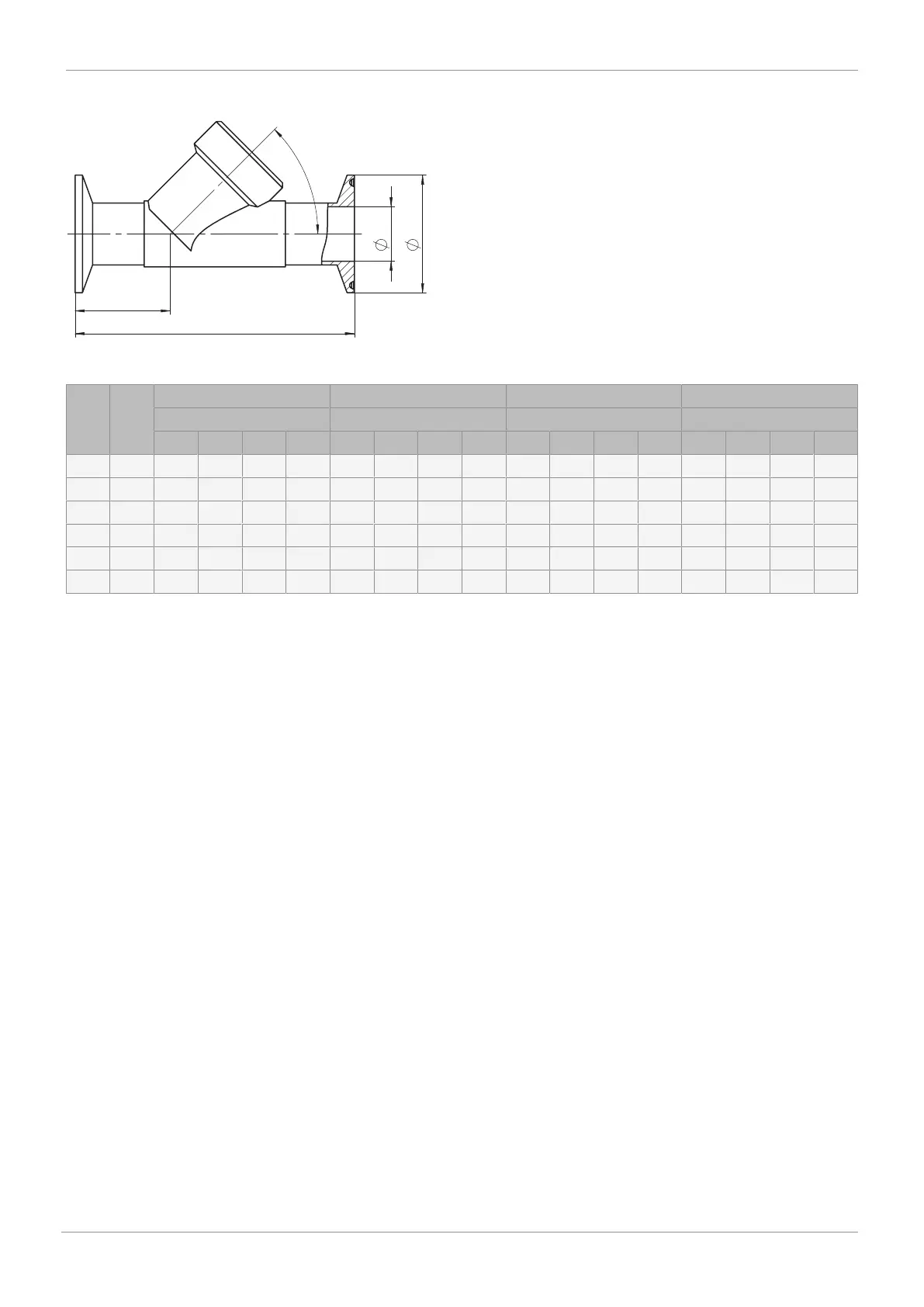

8.3.12 Clamp DIN/ASME (code 80, 82, 86, 88), actuator size 1, 2, 3, 4, 5
LB
L
45°
d1
d3
Connection type clamp DIN/ASME (code 80, 82, 86, 88)
1)
, investment casting material (code 34)
2)
DN NPS ød1 ød3 L LB
Connection type Connection type Connection type Connection type
80 82 86 88 80 82 86 88 80 82 86 88 80 82 86 88
15 1/2" 9.40 ø d1 16.0 9.40 25.0 50.5 34.0 25.0 101.6 130.0 130.0 130.0 33.5 47.5 47.5 47.5
20 3/4" 15.75 18.1 20.0 15.75 25.0 50.5 34.0 25.0 101.6 150.0 150.0 150.0 30.0 54.0 54.0 54.0
25 1" 22.10 23.7 26.0 22.10 50.5 50.5 50.5 50.5 114.3 160.0 160.0 160.0 33.0 56.0 56.0 56.0
32 1¼" - 29.7 32.0 - - 64.0 50.5 - - 180.0 180.0 - - 62.0 62.0 -
40 1½" 34.80 38.4 38.0 34.80 50.5 64.0 50.5 50.5 139.7 200.0 200.0 200.0 37.0 67.0 67.0 67.0
50 2" 47.50 44.3 50.0 47.50 64.0 77.5 64.0 64.0 158.8 230.0 230.0 230.0 36.5 73.0 73.0 73.0
Dimensions in mm
1) Connection type
Code 80: Clamp ASME BPE, face-to-face dimension FTF ASME BPE
Code 82: Clamp DIN 32676 series B, face-to-face dimension FTF EN 558 series 1
Code 86: Clamp DIN 32676 series A, face-to-face dimension FTF EN 558 series 1
Code 88: Clamp ASME BPE, face-to-face dimension FTF EN 558 series 1
2) Valve body material
Code 34: 1.4435, investment casting
GEMÜ 550www.gemu-group.com 33 / 46
8 Dimensions
