GEM 550 - Dimensions: Body (Clamp DIN;ASME); Clamp DIN;ASME Body Dimensions (Codes 82, 86, 88)

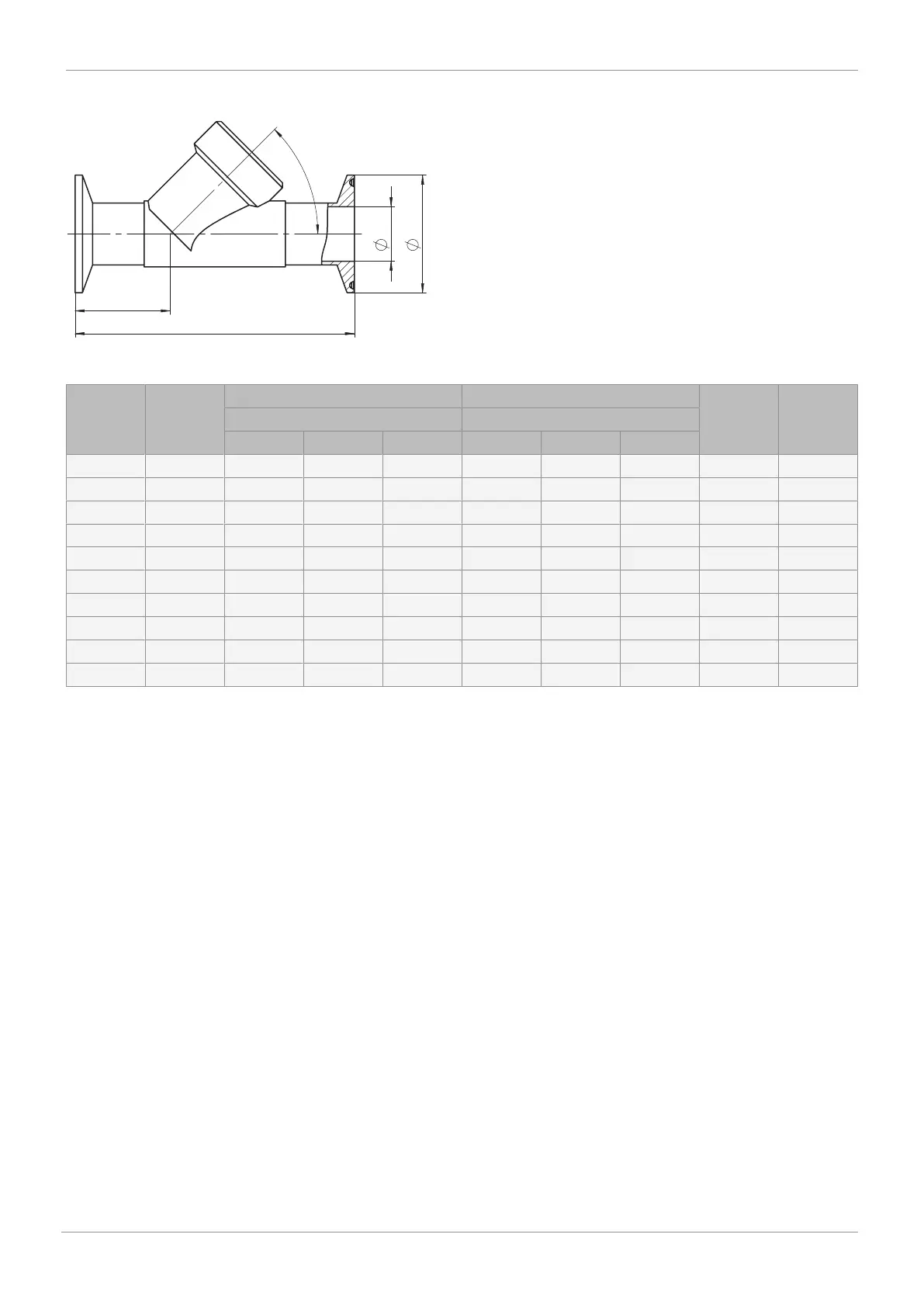

8.3.13 Clamp DIN/ASME (code 82, 86, 88), actuator size 1, 2, 3, 4, 5
LB
L
45°
d1
d3
Connection type clamp DIN/ASME (code 82, 86, 88)
1)
, investment casting material (code C2)
2)
DN NPS ød1 ød3 L LB
Connection type Connection type
82 86 88 82 86 88
8 1/4" 10.3 - - 25.0 - - 130.0 47.5
10 3/8" 14.0 10.0 - 25.0 34.0 - 130.0 47.5
15 1/2" 18.1 16.0 9.40 50.5 34.0 25.0 130.0 47.5
20 3/4" 23.7 20.0 15.75 50.5 34.0 25.0 150.0 54.0
25 1" 29.7 26.0 22.10 50.5 50.5 50.5 160.0 56.0
32 1¼" 38.4 32.0 - 64.0 505 - 180.0 62.0
40 1½" 44.3 38.0 34.80 64.0 50.5 50.5 200.0 67.0
50 2" 56.3 50.0 47.50 77.5 64.0 64.0 230.0 73.0
65 2½" 72.1 66.0 60.20 91.0 91.0 77.5 290.0 120.0
80 3" 84.3 81.0 72.90 106.0 106.0 91.0 310.0 119.0
Dimensions in mm
1) Connection type
Code 82: Clamp DIN 32676 series B, face-to-face dimension FTF EN 558 series 1
Code 86: Clamp DIN 32676 series A, face-to-face dimension FTF EN 558 series 1
Code 88: Clamp ASME BPE, face-to-face dimension FTF EN 558 series 1
2) Valve body material
Code C2: 1.4435, investment casting
www.gemu-group.com34 / 46GEMÜ 550
8 Dimensions
