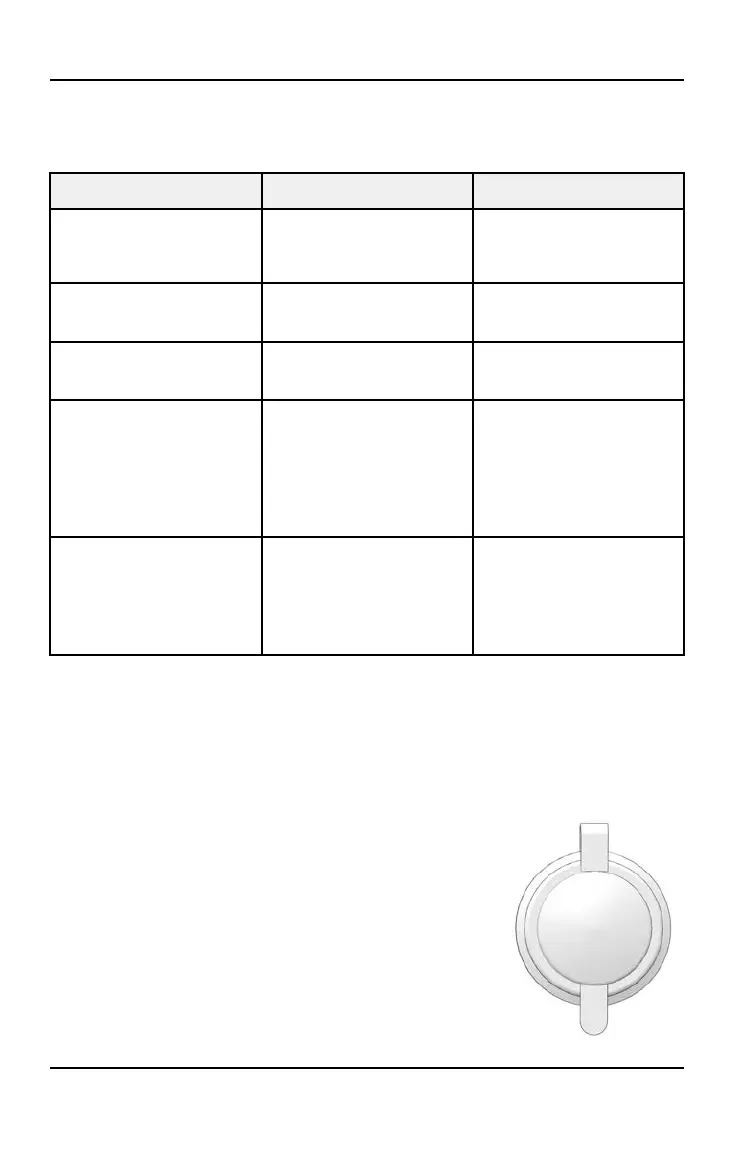

CHARGE STATUS INDICATOR
When charging the batteries, the charge status indicator light flashes and
changes color to indicate the status of the charge. Refer to the table below.
COLOR INDICATION
CODE DEFINITION
Green Solid
Charge is complete,
charger is in
maintenance mode.
Green Fast Flash
Less than 80% of
charge is completed.
Green Slow Flash
More than 80% of
charge is completed.
Amber
Flashing
Power mode is
reduced, low AC
voltage or high internal
charger temperature
exists; remove seat to
improve air flow.
Red
Flashing
Charger error exists;
reset charger power
and refer to
Troubleshooting Guide
on page 34.
AUXILIARY 12–VOLT TERMINAL BOARD
The 12-volt terminal board is located under the hood. It contains constant 12-
volt, switched 12-volt and ground terminals that can be used to power auxiliary
lights and accessories. The terminals are limited to 10 amps.
AUXILIARY OUTLETS
The 12-volt receptacle can be used to power
accessories, but is limited to 10 amps (the terminal
board and 12-volt outlet are fused together at 10
amps.
32
FEATURES AND CONTROLS
