www.gemu-group.com16 / 19GEMÜ Q30
10 Inspection and maintenance

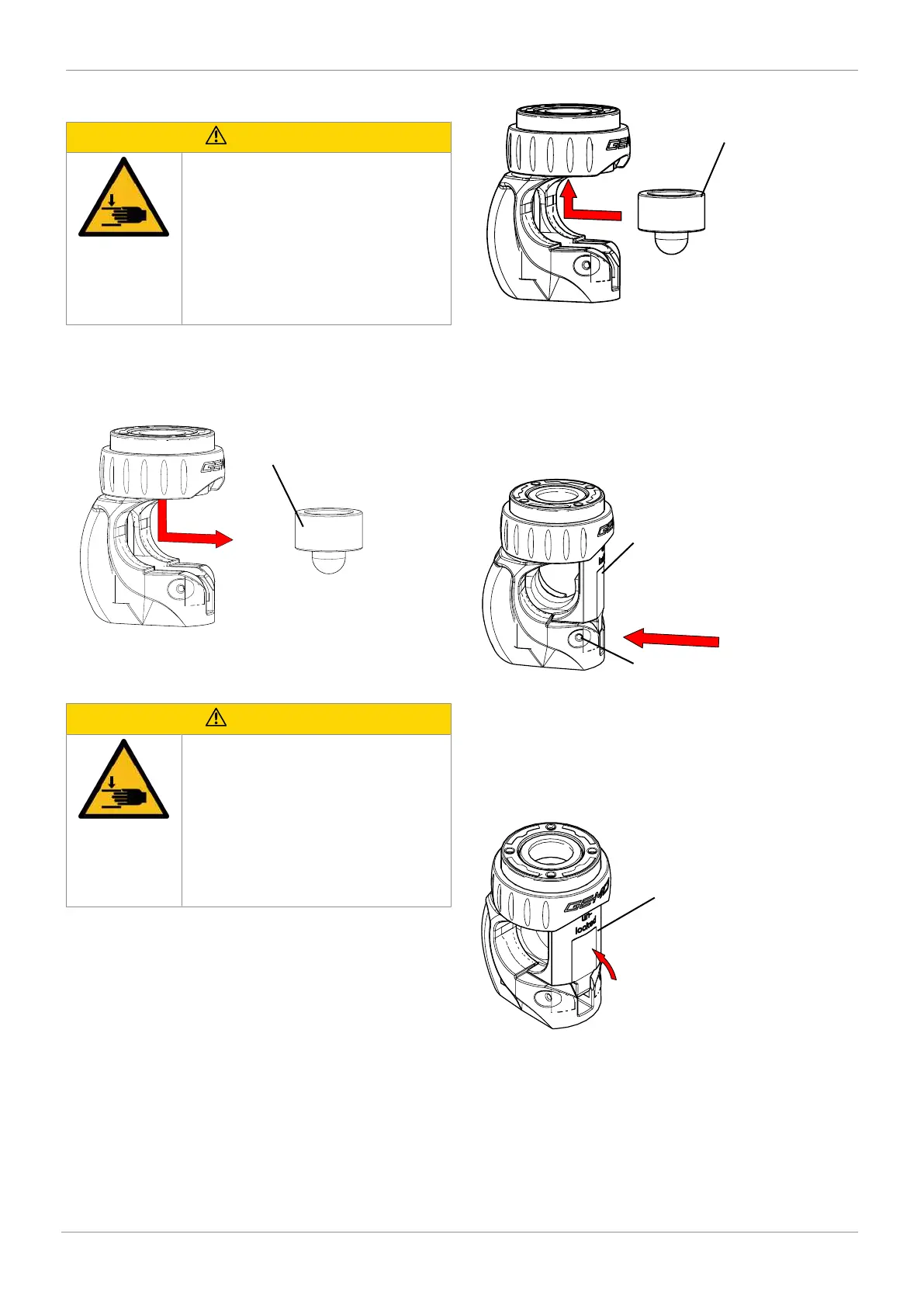

10.4 Disassembling the compressor
CAUTION
Risk of crushing due to the compressor
shutting down!
▶ Severe injury due to crushing or shear-
ing of the fingers.
● Ensure that the actuator remains in the
open position while replacing the com-
pressor.
● Do not reach into the tube crushing
area.
1. Remove the tube (see “Removing the tube“, page15).
2. Disassemble the tube holder (see “Disassembling the tube
holder“, page15).
3. Move the actuator A to the closed position.
2
4. Pull the compressor 2 out downwards.
10.5 Installing the compressor
CAUTION
Risk of crushing due to the compressor
shutting down!
▶ Severe injury due to crushing or shear-
ing of the fingers.
● Ensure that the actuator remains in the
open position while replacing the com-
pressor.
● Do not reach into the tube crushing
area.
1. Remove the tube (see “Removing the tube“, page15).
2. Disassemble the tube holder (see “Disassembling the tube
holder“, page15).
3. Disassemble the compressor (see “Disassembling the
compressor“, page16).
2
4. Insert the compressor 2 and press upwards until the com-
pressor engages.
5. Move the actuator A to the open position.
10.6 Assembling the tube holder
1. Disassemble the tube holder (see “Disassembling the tube
holder“, page15).
1
c
2. Insert the tube holder 1.
3. Tighten the fixing screw c using an Allen key.
10.7 Inserting the tube
1. Remove the tube (see “Removing the tube“, page15).
2. Insert the tube.
1
3. Close the tube holder 1.
