User guide – Plotter Flexipen 120/165
Plan
11
Chapter 6:
Writing head
The writing head is a mobile set which contents a refill device.
6.1 Refill device:

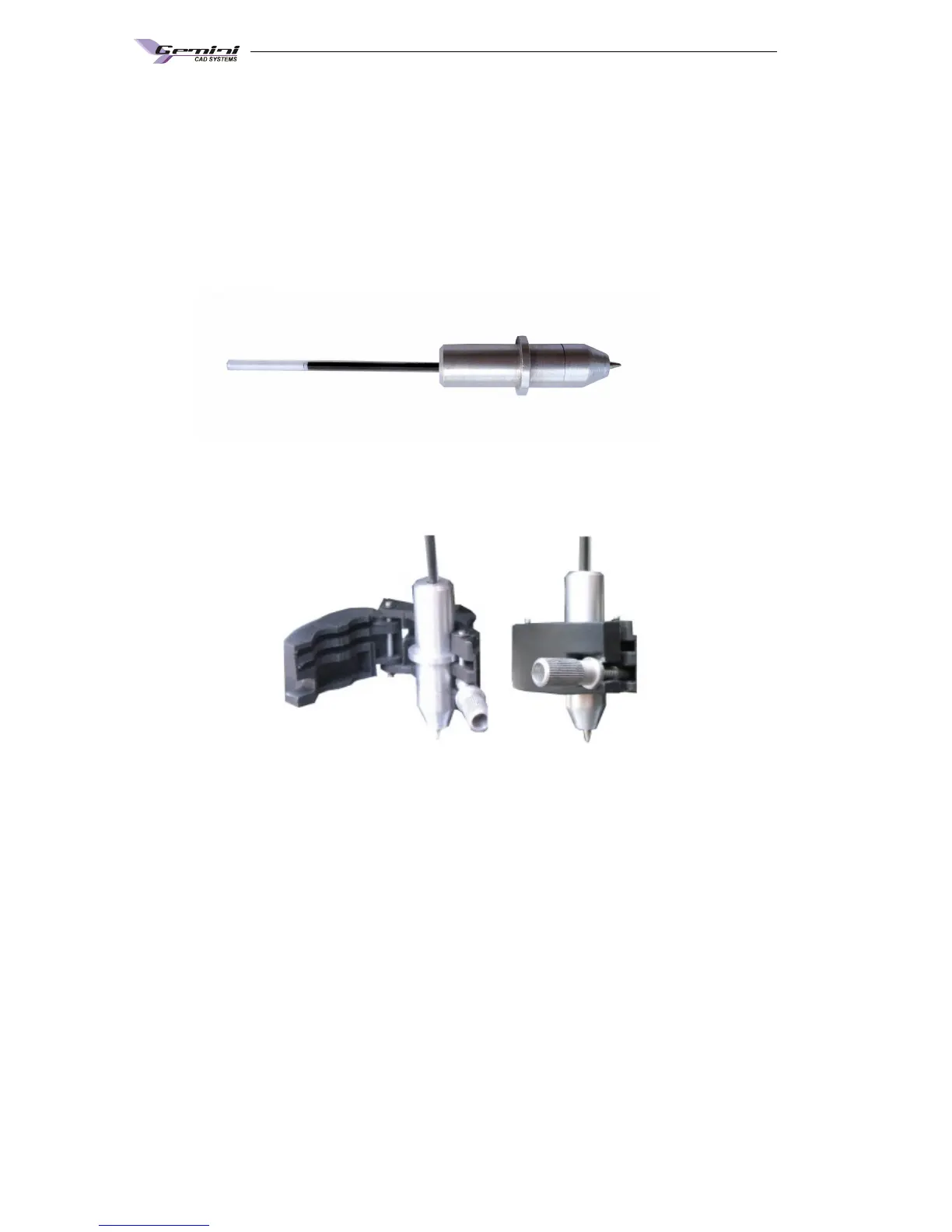

The writing device contents an ensemble which carries a refill. It will be fixed in the
printing head (dolly) with a bolt.
To mount the device you will have to loosen the blockage bolt till you can open the
case. Insert the writing device into the suitable place and then close the case and lock
it with the blockage bolt. (See the picture).
