User guide – Plotter Flexipen 120/165
Plan
5
Chapter 2:
Plotter description and instalation

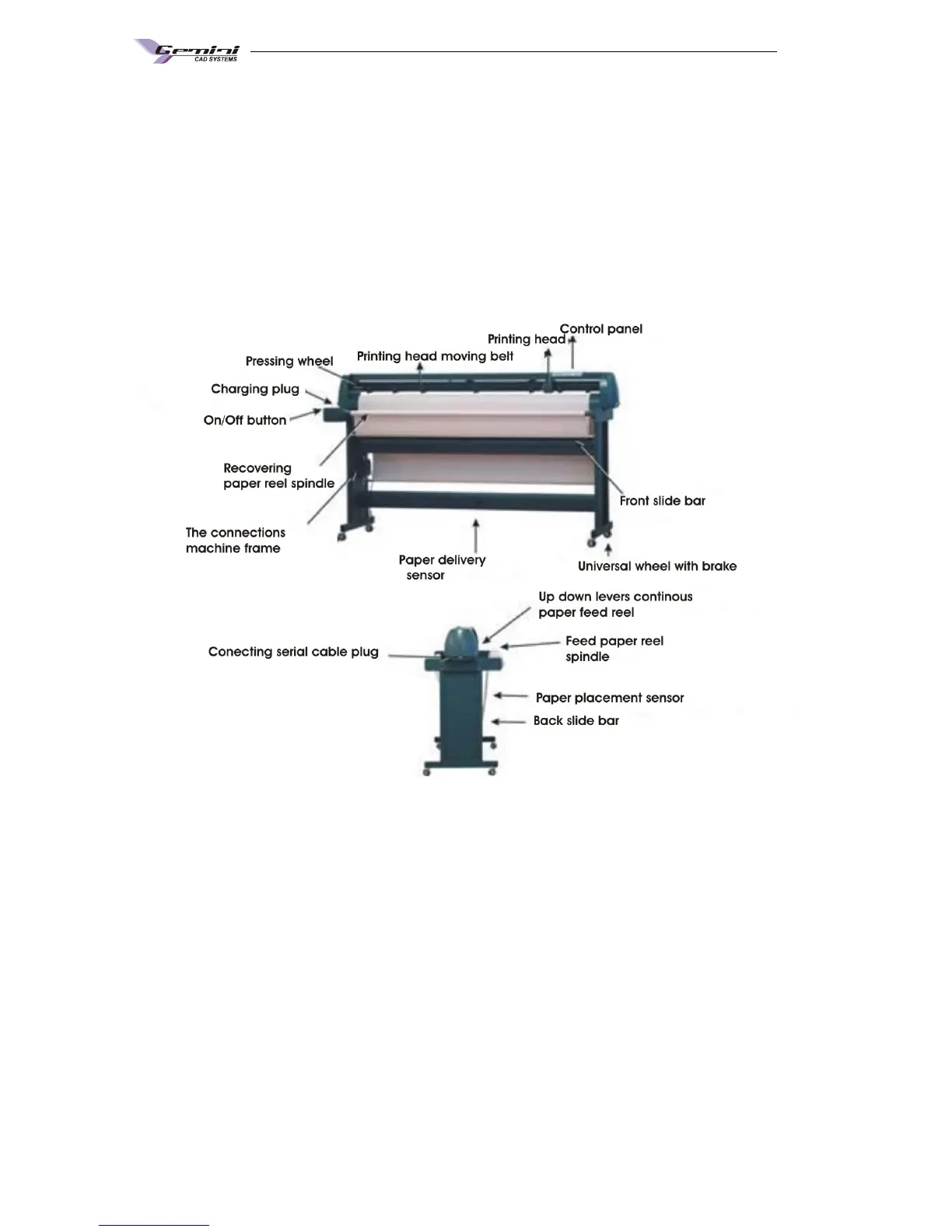

2.1 Plotter components:
2.2 Intallation:
The Flexi Pen 120/165 plotter is delivered in two packages; one contains the
plotter’s pillars, the girders of lower/upper bracket, the feed paper reel spindle, the
recovering paper reel spindle, the slide bars, the connections machine frame, the
universal wheel, the charging wire and the serial transmission cable; the second
packages contents the main frame of the machine.
To assembly the plotter you must follow the following steps:
- Open the package and check all components
- Fix the girders of lower and upper bracket between the plotter pillars, using bolts.
Install according to the serial number of parts.
- Mount the plotter wheels, the universal wheels with brake in front and the free ones
in the back.
- The connection machine frame will be placed on the left pillar using bolts.
