7.2.4 Plotter calibrate
In Flex Pen 120/180 Serial Garments menu from General settings there is a
Calibrate button used to calibrate the plotter. You have to calibrate the plotter in the
next cases:
- the first time you plot
- after you mount the plotter
- each time when you observe differences between plotted files and files
from project.

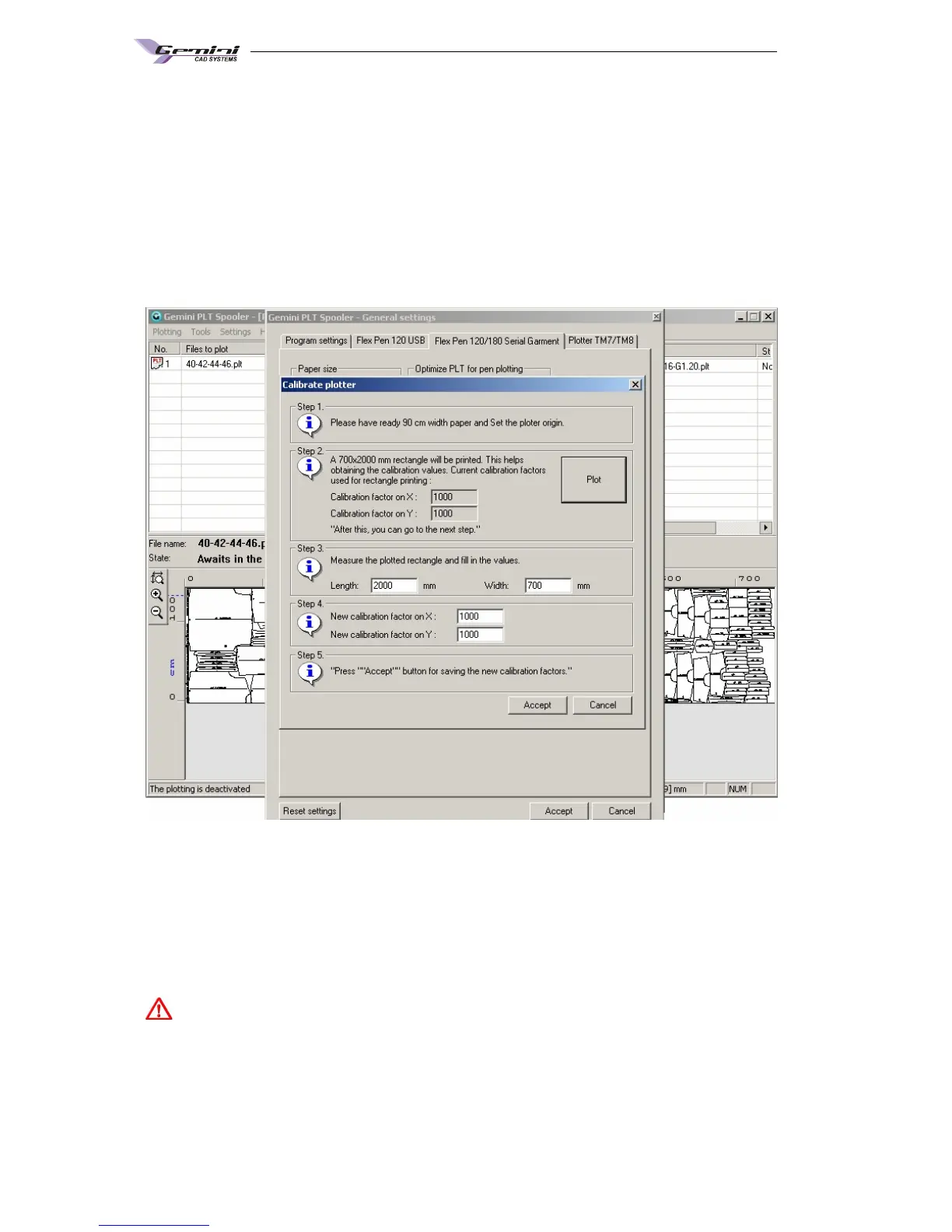

If you click on this button a new window called „Calibrate plotter”will open
Follow the specified steps in the window „Plotter calibrate” in the indicated order.
Insert the plotted paper size (in mm) in the „Length” and „Width” boxes.
For an exact measurement we recommend you detach the paper from the plotter
and measure it on a flat surface.
After inputting the measured data, plot the file once again and re-check the
accuracy of the plotting. If the newly measured dimensions are correct, the plotter is
calibrated and it is ready to plot.
To learn more about using program consult the Gemini PLT Spooler user
guide.
