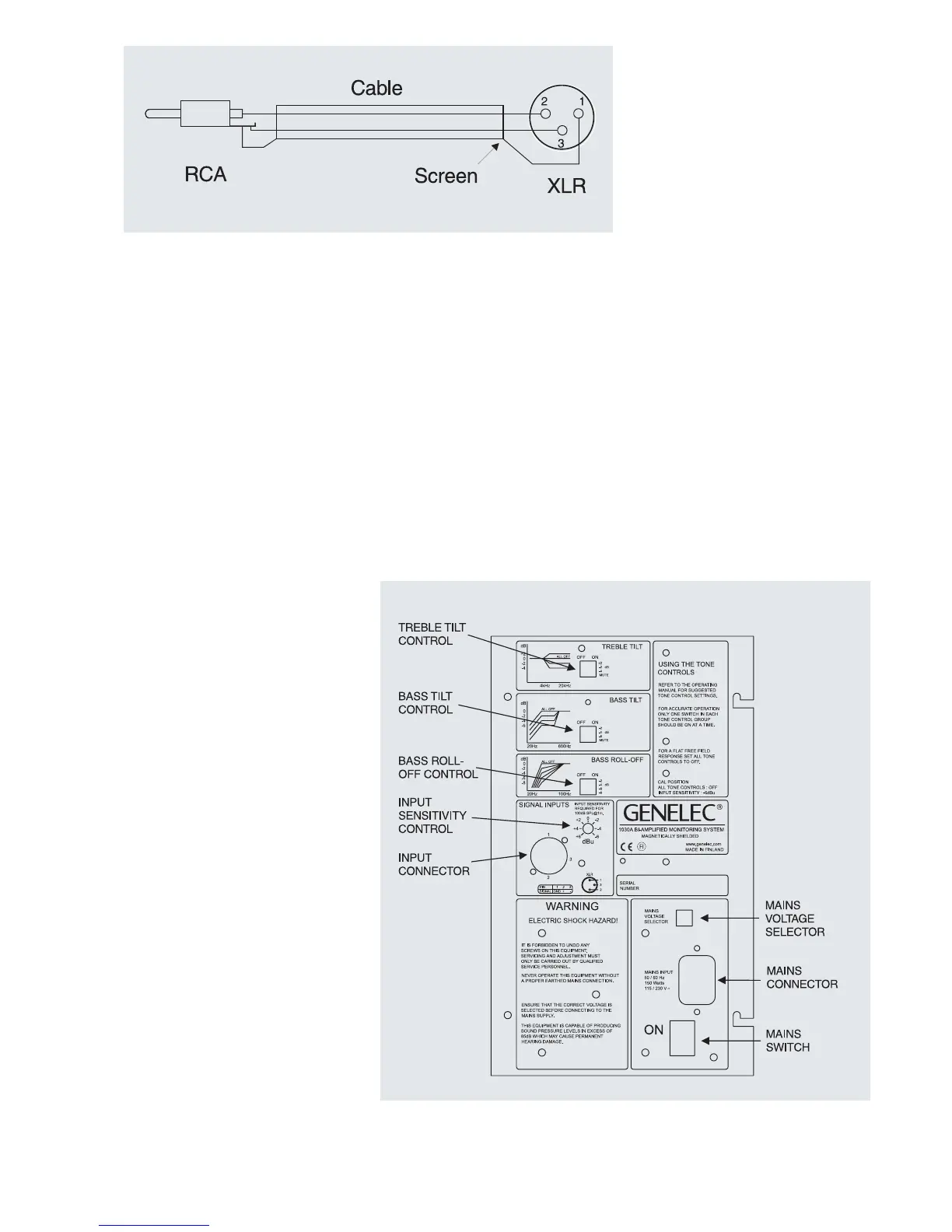

Figure 4. Rear panel layout.
Figure 3 . XLR connection if unbalanced input is required.
Vertical / horizontal mountingVertical / horizontal mounting
Vertical / horizontal mountingVertical / horizontal mounting
Vertical / horizontal mounting
The speakers are normally delivered
set up for vertical mounting. If horizontal
mounting is needed the DCW plate
may be rotated so that the GENELEC
logo is located at the bottom left corner
of the DCW. Remove the four corner
screws of the DCW (use a Torx 20
screw driver) and pull the plate carefully
out without stressing the wires or the
gasket. Rotate the plate 90 degrees in
the appropriate direction and remount
the screws. Note that to get a mirror
image pair, the DCWs must be rotated
in different directions for the left and
right speakers. When used in the
horizontal position, the bass drivers
should be on the inside to provide
better low frequency summing.
Console top mountingConsole top mounting
Console top mountingConsole top mounting
Console top mounting
If the 1030A's are used for console top
monitoring, avoid mounting the
speakers directly on the console.
Instead position the speakers slightly
behind the console by using floor
stands or wall mounts. This prevents
the reflection from the console surface
from coloring the sound.
3. Maintenance3. Maintenance
3. Maintenance3. Maintenance
3. Maintenance
No user serviceable parts are to be
found within the amplifier unit. Any
maintenance or repair of the 1030A
unit should only be undertaken by
qualified service personnel.
4. Safety Considerations4. Safety Considerations
4. Safety Considerations4. Safety Considerations
4. Safety Considerations
Although the 1030A has been designed
in accordance with international safety
standards, to ensure safe operation
and to maintain the instrument under
safe operating conditions, the following
warnings and cautions must be
observed:
• Servicing and adjustment must
only be performed by qualified service
personnel.
• The amplifier's rear panel must not
be opened, except by persons who
are aware of the hazards involved.
• Do not use this product with an
unearthed mains cable as this may
lead to personal injury.
WARNING!WARNING!
WARNING!WARNING!
WARNING!
This equipment is capable of producing
sound pressure levels in excess of
85 dB, which may cause permanent
hearing damage.
5. Accessories5. Accessories
5. Accessories5. Accessories
5. Accessories
Order code
Protective grille 1030-409
Wall mount 1030-404-V/H*
Floor stand 1030-405-V/H*
*State the desired speaker orientation
V=vertical or H=horizontal when
ordering these accessories.
6. Guarantee6. Guarantee
6. Guarantee6. Guarantee
6. Guarantee
This product is supplied with a one
year guarantee against manufacturing
faults or defects that might alter the
performance of the 1030A unit. Refer
to supplier for full sales and guarantee
terms.
