Genelec 6010A Setup Guide

10 11Monitor setup guide
Set the sensitivity control on all speakers clockwise
to full (-6 dBu) to begin with.
More information can be found in the operating
manual of your product.
If you use an acoustic measurement device like
RoomEQ Wizard, measure ear height at the listening
position. Analyse the results and adjust DIP-switches
to achieve as  at and similar frequency response as
possible in each monitor.
If you have a large horizontal surface in front of the
monitors, a boost around 160 Hz boost typically
occurs. Some Genelec monitors have a desktop
control DIP switch, which compensates the 160 Hz
boost by -4 dB.
Monitor settings
Step 1
Input sensitivity
control
Step 2
Step 3
Desktop control
DIP switch

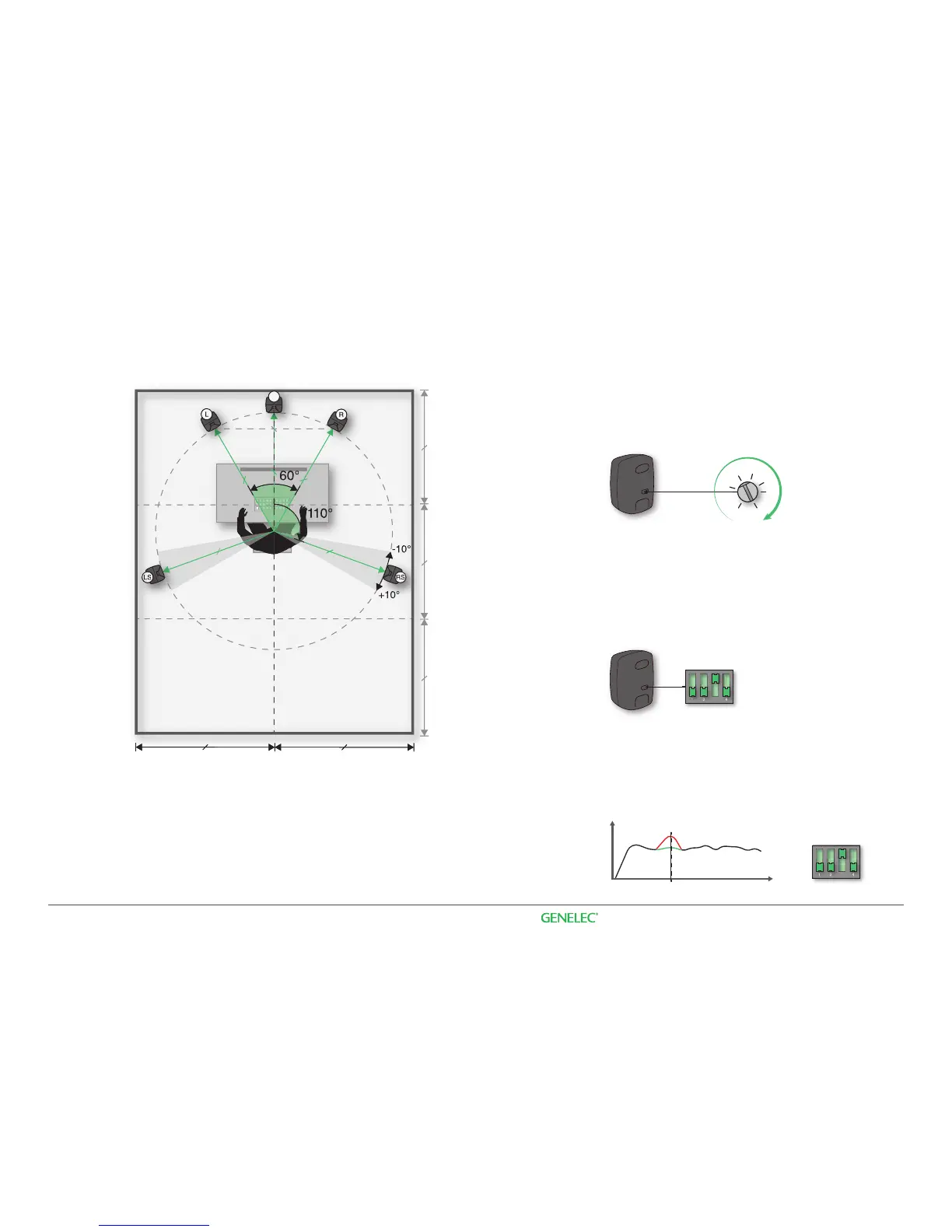

Basics of system setup.
An ideal 5.1 setup.Correct monitor
placement
1110°
60°
+10°
-10°
RS
R
LS
L
111
111
0°
0°
0°
60°
60°
60°
+10°
-10°
+10°
RS
R
LS
L
C
dBu
+12
+6
-6
+3
-3
-4
0
SENSITIVITY FOR
100 dB SPL @ 1 m
1 2 3 4
1
2
4
OFF
ON
dB
4 dB @ 160 Hz
frequency
1 2 3 4
1
2
4
OFF
ON

Genelec 6010A Specifications

General

Product color	White
Recommended usage	Other
Suitable for outdoor use	-
Tweeter	Yes
Number of drivers	2
Speaker placement	Tabletop/bookshelf
Audio output channels	1.0 channels
Woofer diameter (imperial)	3 \
Tweeter diameter (imperial)	0.75 \
Impedance	- Ω
Sensitivity	93 dB
Frequency range	73 - 21000 Hz
RMS rated power	24 W
Crossover frequency	3000 Hz
Total Harmonic Distortion (THD)	3 %
Audio RCA inputs	1
Connectivity technology	Wired
AC input voltage	100 - 240 V
Power source type	AC

Weight and Dimensions

Depth	114 mm
Width	121 mm
Height	195 mm
Weight	1400 g
