AMPLIFIER SECTION
CROSSOVER SECTION
SYSTEM SPECIFICATIONS

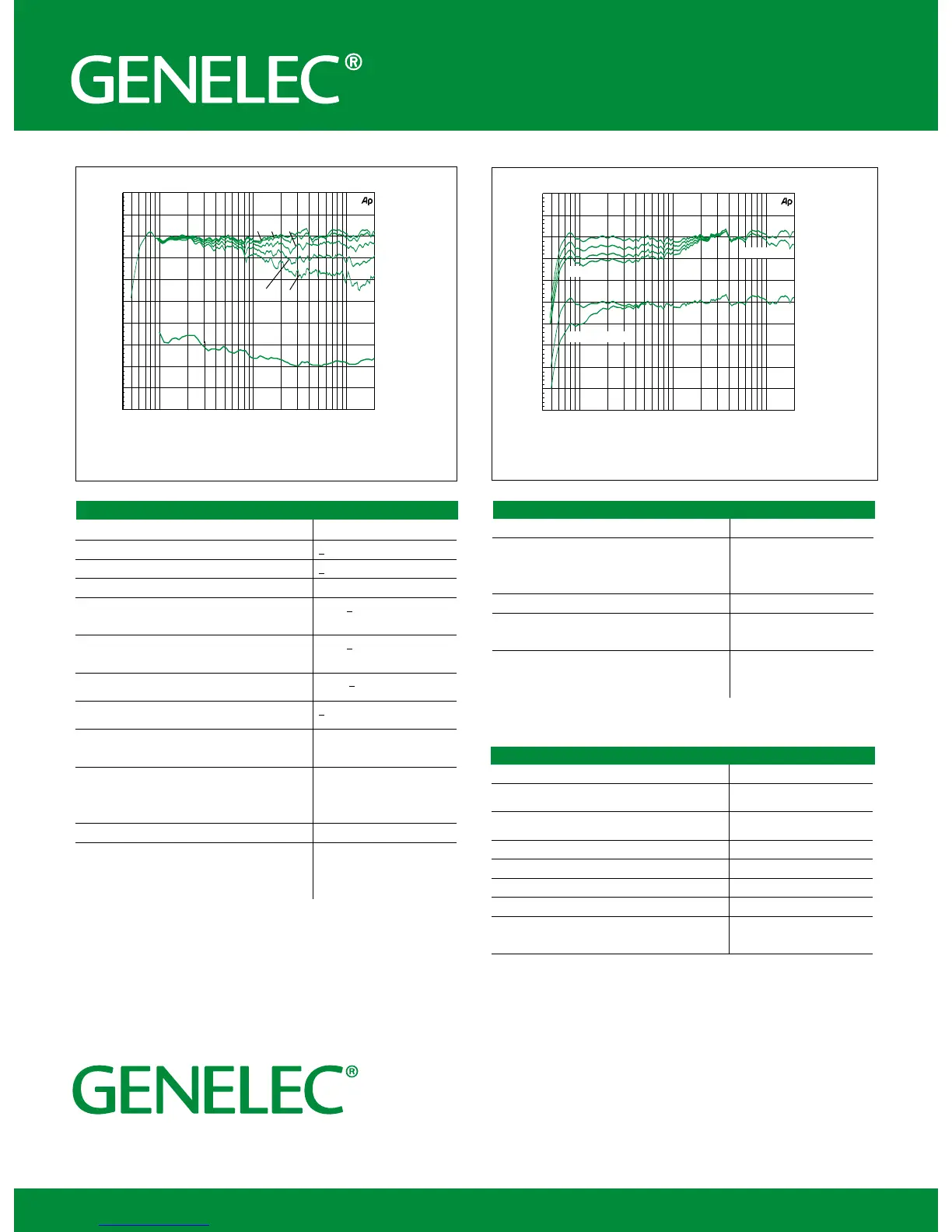

Figure 5: The upper curve group shows the horizontal directivity char-
acteristics of the 8020C measured at 1 m. The lower curve shows the
systems power response.
Figure 6: The curves above show the effect of the “bass tilt”, “treble tilt”
and “bass roll-off” controls on the free field response.
In Sweden please contact
Genelec Sverige
Ellipsvägen 10B
P.O. Box 5521, S-141 05 Huddinge
Phone +46 8 449 7070
Fax +46 8 708 7071
Email info@genelec.com
75
80
85
90
d
B
r
A
40
20k
70
100
200
500
Data Sheet 8020C
8020C
Lower cut-off frequency, –3 dB
< 65 Hz
Upper cut-off frequency, –3 dB
> 21 kHz
Free field frequency response 66 Hz – 20 kHz (± 2.5 dB)
Maximum short term sine wave acoustic output on axis in
half space, averaged from 100 Hz to 3 kHz
@ 1 m > 96 dB SPL
Maximum long term RMS acoustic output in same
conditions with IEC weighted noise (limited by driver unit
protection circuit
@ 1 m > 95 dB SPL
Maximum peak acoustic output per pair with music
material
@ 1 m > 105 dB
Self generated noise level in half space at 1 m on axis
(A-weighted)
< 10 dB
Harmonic distortion at 85 dB SPL at 1 m on axis
Freq: 50…100 Hz
> 100 Hz
< 3 %
< 0.5 %
Drivers
Bass
Treble
105 mm (4 in) cone
19 mm (3/4 in) metal dome
Both drivers are magnetically
shielded
Weight 3.7 kg (8.1 lb)
Dimensions
Height including Iso-Pod™ table stand
Height without Iso-Pod™ table stand
Width
Depth
242 mm (9
1
/
2
in)
230 mm (9
1
/
1
in)
151 mm (6 in)
142 mm (5
5
/
8
in)
8020C
Bass amplifier short term output power
Treble amplifier short term output power
Long term output power is limited by driver unit protection
circuitry
20 W at 8 Ohm load
20 W at 8 Ohm load
Amplifier system THD at nominal output < 0.08 %
Mains voltage
Voltage operating range:
100, 120, 220 or 230 V
according to region
±10 %
Power consumption (average)
Standby
Idle
Full output
<0.5 W
5 W
50 W
8020C
Signal input connector
XLR female, balanced 10 kOhm pin 1 gnd, pin 2 +, pin 3 -
Input level for 100 dB SPL output at 1 m -6 dBu at volume
control max
Sensitivity control range -80 dB relative to max output
Crossover frequency, Bass/Treble 3.0 kHz
Treble Tilt control operating range 0 to –2 dB @ 15 kHz
Bass Tilt control operating range in 2 dB steps From 0 to -6 dB @ 100 Hz
Bass Roll-Off control –6 dB step @ 85 Hz
(to be used in conjunction with a
7050B subwoofer)
The ‘CAL’ position is with all tone controls set to ‘off’ and the input sensitivity control to maximum
(fully clockwise).
