Genelec 8010A User Manual

2 English

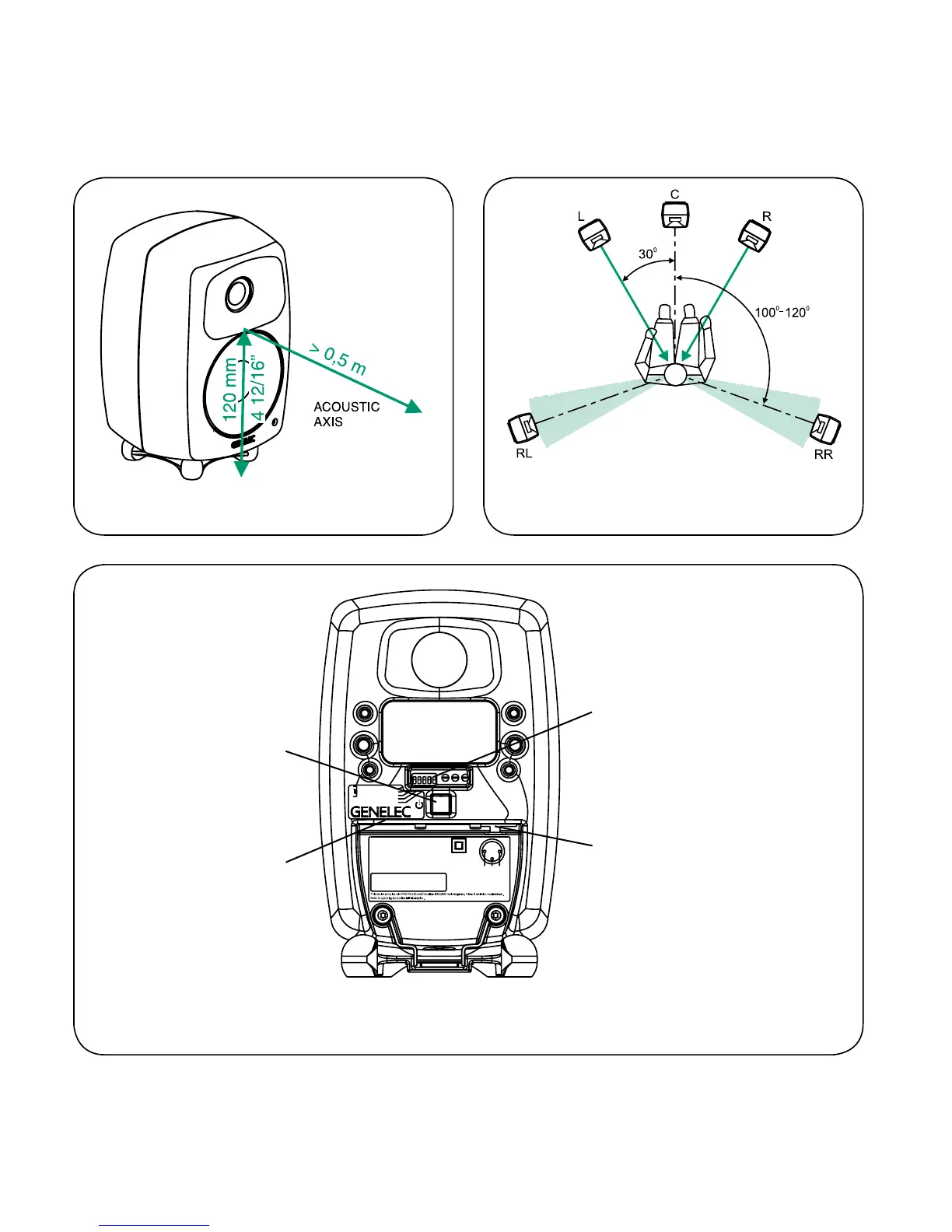

Figure 1. Location of the acoustic axis
Figure 3. Control and connector layout on the rear panel of a 8010A.
Figure 2. Correct alignment of the monitors in a
5-channel system.
TO WATER OR MOISTURE. NO USER SERVICEABLE PARTS
ELECTRIC SHOCK HAZARD. DO NOT OPEN. DO NOT SUBJECT
L'INTÉRIEUR REMPLAÇABLE PARL'UTILISATEUR. ADRESSER
RISQUE DE CHOC ÉLECTRIQUE.NEPAS OUVRIR. NE PAS
EXPOSER ÀL'EAU OU L'HUMIDITÉ. AUCUN COMPOSANTÀ
AVERTISSEMENT
WARNING
INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL.
TOUTE RÉPARATION ÀUN PERSONNEL QUALIFIÉ.
292-6010W
BASS TILT -4 dB
BASS TILT -2 dB
ISSDISABLE
SENSITIVITY -10dB
DESKTOP CONTROL
292-8010S
ON
8010A BI-AMPLIFIED
MONITORING SYSTEM
MAINS INPUT
50 /60Hz30W
100 - 240 V~
MADE IN FINLAND www.genelec.com
292-8010T
+ - GND
2
3
IN
1
ISS DISABLE,
SENSITIVITY -10 dB,
BASS TILT
AND DESKTOP
CONTROLS
XLR SIGNAL
INPUT CONNECTOR
MAINS
CONNECTOR
MAINS
SWITCH

Genelec 8010A Specifications

General

Product color	Black
LED indicators	Yes
Housing material	-
Recommended usage	Universal
Suitable for outdoor use	No
Speaker type	2-way
Number of drivers	2
Speaker placement	Tabletop/bookshelf
Audio output channels	1.0 channels
Woofer diameter (imperial)	3 \
Tweeter diameter (imperial)	1.33 \
Amplifier class	D
Impedance	10000 Ω
Sensitivity	96 dB
Frequency range	67 - 25000 Hz
RMS rated power	50 W
Connectivity technology	Wired

Weight and Dimensions

Depth	116 mm
Width	121 mm
Height	195 mm
Weight	1500 g
