8030B Data Sheet
Genelec Document BBA0036001a Copyright Genelec Oy 9.2013. All data subject to change without prior notice
www.genelec.com
AMPLIFIER SECTION
CROSSOVER SECTION
SYSTEM SPECIFICATIONS
8030B
Lower cut-off frequency, -3 dB < 55 Hz
Upper cut-off frequency, -3 dB > 21 kHz
Free field frequency response 58 Hz – 20 kHz (± 2.0 dB)
Maximum short term sine wave acoustic
output on axis in half space, averaged
from 100 Hz to 3 kHz @ 1 m > 100 dB SPL
@ 0.5 m > 106 dB SPL
Maximum long term RMS acoustic
output in same conditions with
IEC-weighted noise (limited by driver
unit protection circuit) @ 1 m > 97 dB SPL
Maximum peak acoustic output per pair
@ 1 m from the engineer with music
material > 108 dB
Self generated noise level in free field
@ 1 m on axis < 10 dB (A-weighted)
Harmonic distortion at 85 dB SPL Freq: 50...100 Hz < 2 %
@ 1 m on axis > 100 Hz < 0.5 %
Drivers Bass 130 mm (5 in) cone
Treble 19 mm (
3
/
4
in) metal dome
Both drivers are magnetically shielded
Weight 5.6 kg (12.3 lb)
Speaker dimensions Height 299 mm (11
13
/
16
in)
(including Iso-Pod table stand)
Height 285 mm (11
1
/
4
in)
(without Iso-Pod table stand)
Width 189 mm (7
7
/
16
in)
Depth 178 mm (7 in)
8030B
Bass amplifier output power Short term 40 W (8 Ohm load)
Treble amplifier output power Short term 40 W (8 Ohm load)
Long term output power is limited by driver unit
protection circuitry.
Amplifier system distortion at THD <0.05 %
nominal output SMPTE-IM <0.05 %
CCIF-IM <0.05 %
DIM 100 <0.05 %
Signal to Noise ratio, Bass >100 dB
referred to full output Treble >100 dB
Mains voltage: 100,120,220or230V according to region.
Voltageoperatingrange: ±10%
Power consumption Standby <0.5 W
Idle 10 W
Full output 80 W
8030B
Input connector: XLR female, pin 1 gnd, pin 2 +, pin 3 -
balanced 10 kOhm
Output connector: XLR male, pin 1 gnd pin 2 +, pin 3 -
balanced 100 kOhm
Input level for 100 dB SPL output @ 1m -6 dBu at volume control max
Volumecontrolrange -80dBrelativetomaxoutput
Output signal level is 0 dB relative to input signal level
but adjustable by volume control
Crossover frequency 3.0 kHz
Treble tilt control operating range 0 to –2 dB @ 15 kHz
Bass roll-off control –6 dB step @ 85 Hz
(to be used in conjunction with a 7050 subwoofer)
Bass tilt control 0 to –6 dB @ 100 Hz in 2 dB steps
The ‘CAL’ position is with all tone controls set to ‘off’
and input sensitivity control to maximum and
corresponds to a maximally flat free field response.

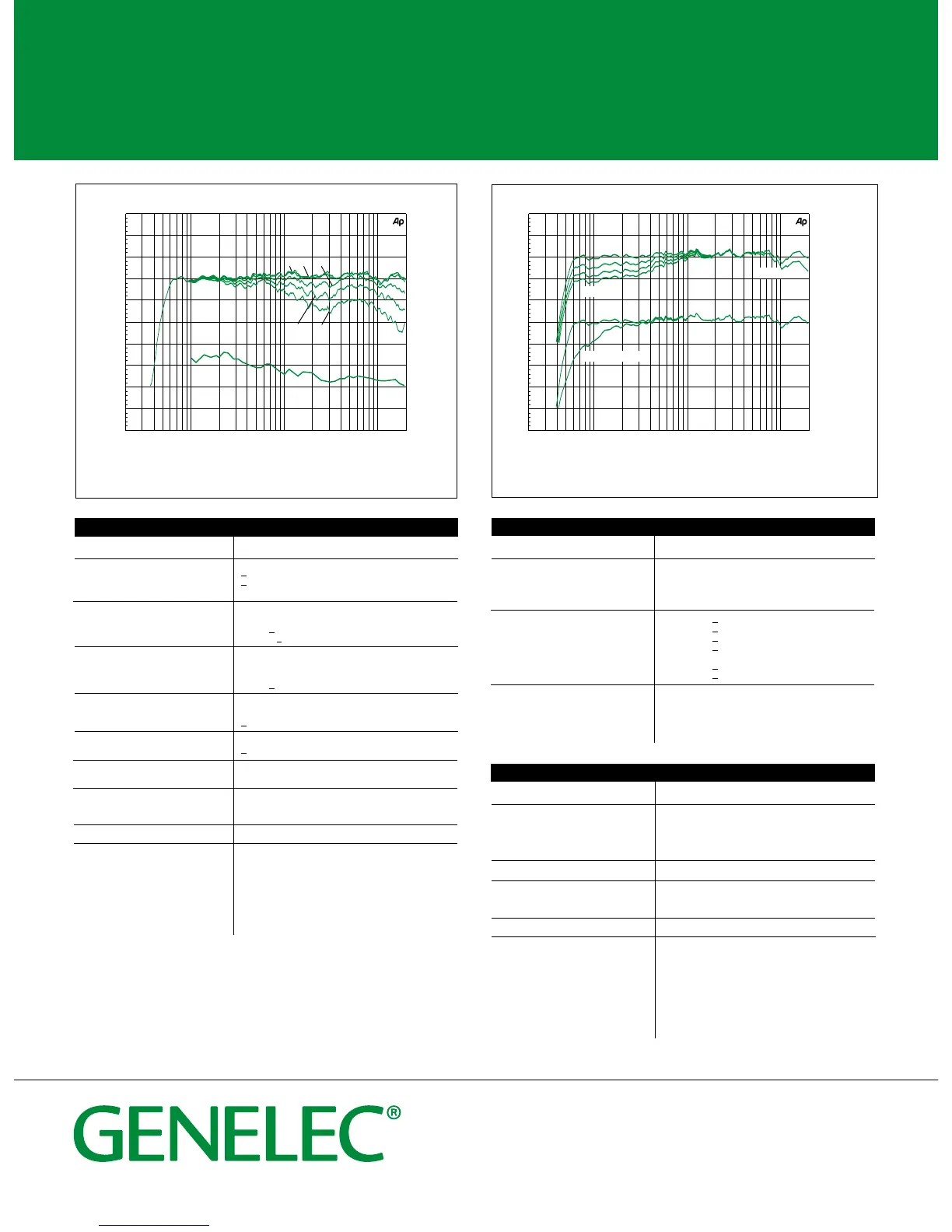

Figure 3: The upper curve group shows the horizontal directivity char-
acteristics of the 8030B measured at 1 m. The lower curve shows the
systems power response.
Figure 4: The curves above show the effect of the “bass tilt”, “treble tilt”
and “bass roll-off” controls on the free field response.
80
85
90
95
d
B
r
A
20
20k
50
100
200
500
1k 2k
5k
10k
Hz
International enquiries:
Genelec, Olvitie 5
FIN-74100, Iisalmi, Finland
Phone +358 17 83881
Fax +358 17 812 267
Email genelec@genelec.com
In the U.S. please contact:
Genelec, Inc., 7 Tech Circle
Natick, MA 01760, U.S.A.
Phone +1 508 652 0900
Fax +1 508 652 0909
Email genelec.usa@genelec.com
In China please contact:
Beijing Genelec Audio Co. Ltd
Jianwai SOHO, Building 12, Room 2605
D-1504, Chaoyang District
Beijing 100022, China
Phone +86 10 8580 2180
Fax +86 10 8580 2181
Email genelec.china@genelec.com
In Sweden please contact
Genelec Sverige
Ellipsvägen 10B
P.O. Box 5521, S-141 05 Huddinge
Phone +46 8 449 5220
Fax +46 8 708 7071
Email info@genelec.com
