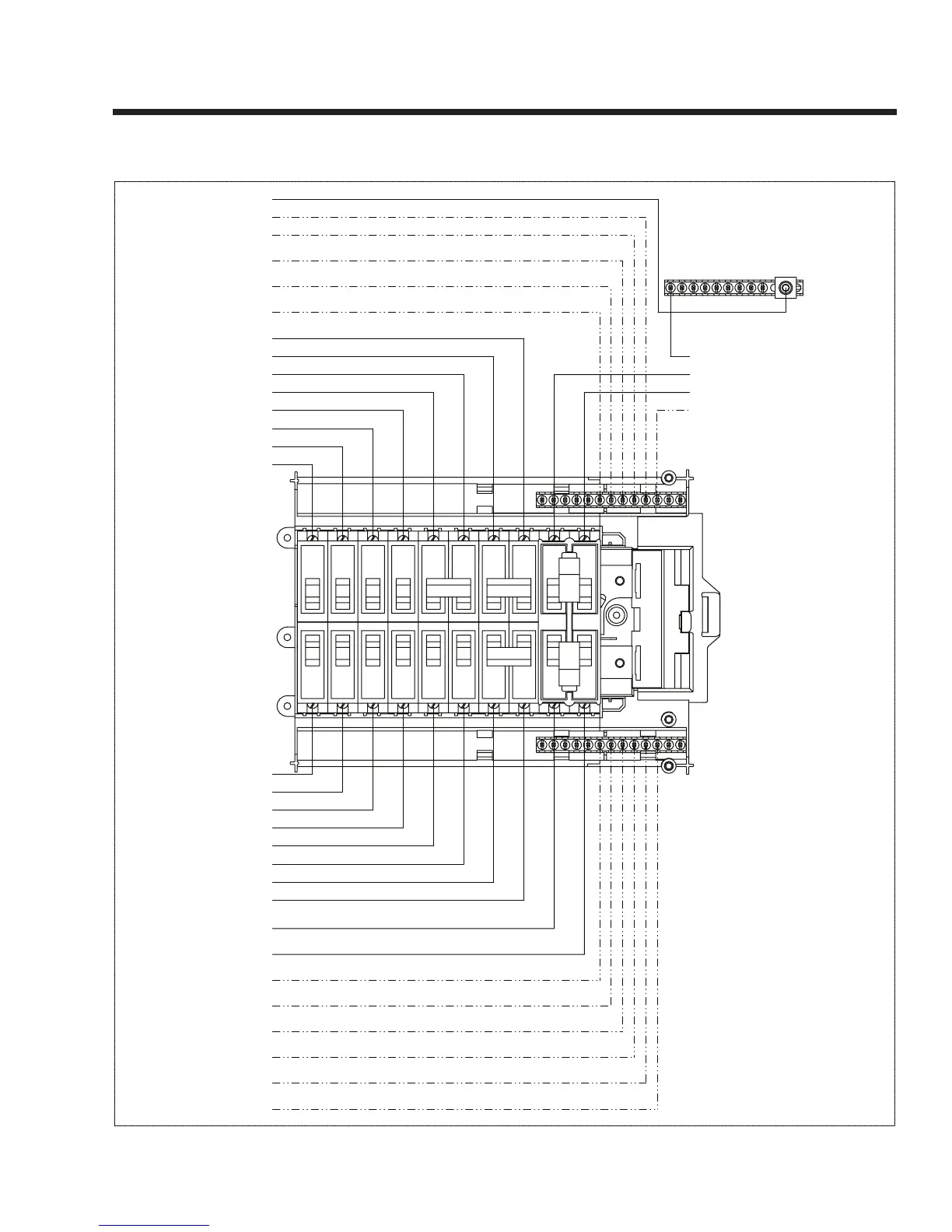

Generac Power Systems 4451 & 4986 - Wiring Diagram, 17.5 Kw MANUAL TRANSFER Switch - Drawing NO. 0 G1065

Section 8
ELECTRICAL DATA
CIRCUIT 16
CIRCUIT 14
CIRCUIT 12
CIRCUIT 8
CIRCUIT 6
MAIN 2
CIRCUIT 2
CIRCUIT 4
CIRCUIT 10
NEUTRAL
NEUTRAL
NEUTRAL
CIRCUIT 12
CIRCUIT 14
CIRCUIT 16
CIRCUIT 8
NEUTRAL
NEUTRAL
CIRCUIT 6
NEUTRAL
CIRCUIT 10
MAIN 1
GROUND
NEUTRAL
CIRCUIT 9
NEUTRAL
NEUTRAL
NEUTRAL
NEUTRAL
CIRCUIT 13
CIRCUIT 11
CIRCUIT 3
CIRCUIT 1
CIRCUIT 7
CIRCUIT 5
CIRCUIT 15
CIRCUIT 15
CIRCUIT 11
GROUND BAR
(ORG)
(LT BLU)
(DRK BLU)
(PNK)
(YEL/WHT)
(YEL)
(BRN/WHT)
(BRN)
(WHT)
(WHT)
(WHT)
(WHT)
(WHT)
(GRN)
(ORG)
(ORG/WHT)
(BLU/YEL)
(ORG/YEL)
(GRY/YEL)
(VIO/YEL)
(VIO)
(PNK/YEL)
(RED)
(BLK)
(WHT)
(WHT)
(WHT)
(WHT)
(WHT)
(WHT)
CIRCUIT 9
CIRCUIT 13
GROUND(GRN)*
GEN2(RED)*
GEN1(BLK)*
NEUTRAL(WHT)*
*-CUSTOMER SUPPLIED
LOAD CENTER
NEUTRAL BAR
NEUTRAL BAR
UTILITY
STANDBY
Page 83
Wiring Diagram, 17.5 kW Manual Transfer Switch – Drawing No. 0G1065
